| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

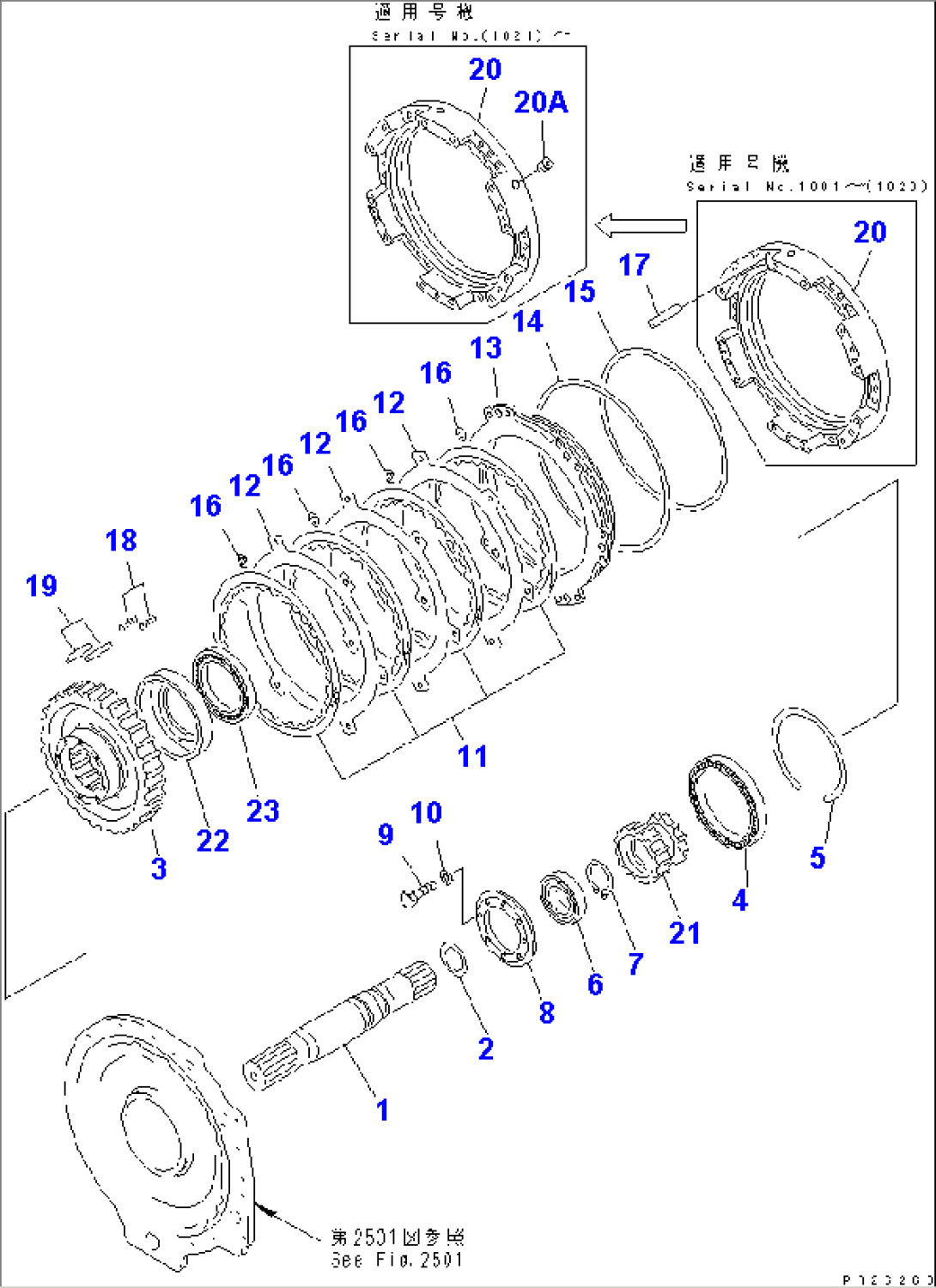

| (561-15-00900) | TRANSMISSION ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 561-15-52113 | SHAFT | 1001- | |
| 2 | 07018-20854 | RING,SEAL | 1001- | |
| 3 | 561-15-52292 | HUB | 1001- | |
| 4 | 582-15-19470 | BEARING | 1001- | |
| 5 | 04071-00230 | RING,SNAP | 1001- | |
| 6 | 06000-06215 | BEARING | 1001- | |
| 7 | 04064-07525 | RING,SNAP | 1001- | |
| 8 | 561-15-52360 | COVER | 1001- | |
| 9 | 01010-51030 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 561-15-52721 | DISC | 1001- | |
| 12 | 561-15-52941 | PLATE | 1001- | |
| 13 | 561-15-52711 | PISTON,HIGH | 1001- | |
| 14 | 561-15-59260 | RING,SEAL (K2) | 1001- | |
| 15 | 561-15-59240 | RING,SEAL (K2) | 1001- | |
| 16 | 175-15-42880 | SPRING | 1001- | |
| 17 | 234-15-12761 | PIN,(D=15¤ L=93) | 1001- | |
| 18 | 234-15-15230 | SPRING¤ (L= 52.0),(L=52) | 1001- | |
| 19 | 561-15-41250 | PIN,(D=12¤ L=93) | 1001- | |
| 20 | 561-15-51171 | HOUSING | (1021)- | |
| 561-15-51170 | HOUSING | 1001-(1020) | ||
| 20A | 198-15-26510 | PLUG | (1021)- | |
| 21 | 561-15-52213 | GEAR | 1001- | |
| 22 | 561-15-42150 | SPACER | 1001- | |
| 23 | 569-15-39620 | BEARING | 1001- |
