| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 425-15-31001 | TRANSMISSION ASS'Y | 55293- | ||
| (\0\425-15-31000) | TRANSMISSION ASS'Y | 55001-55292 | ||
| (425-15-31011) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55293- | ||
| (\0\425-15-31010) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55001-55292 | ||

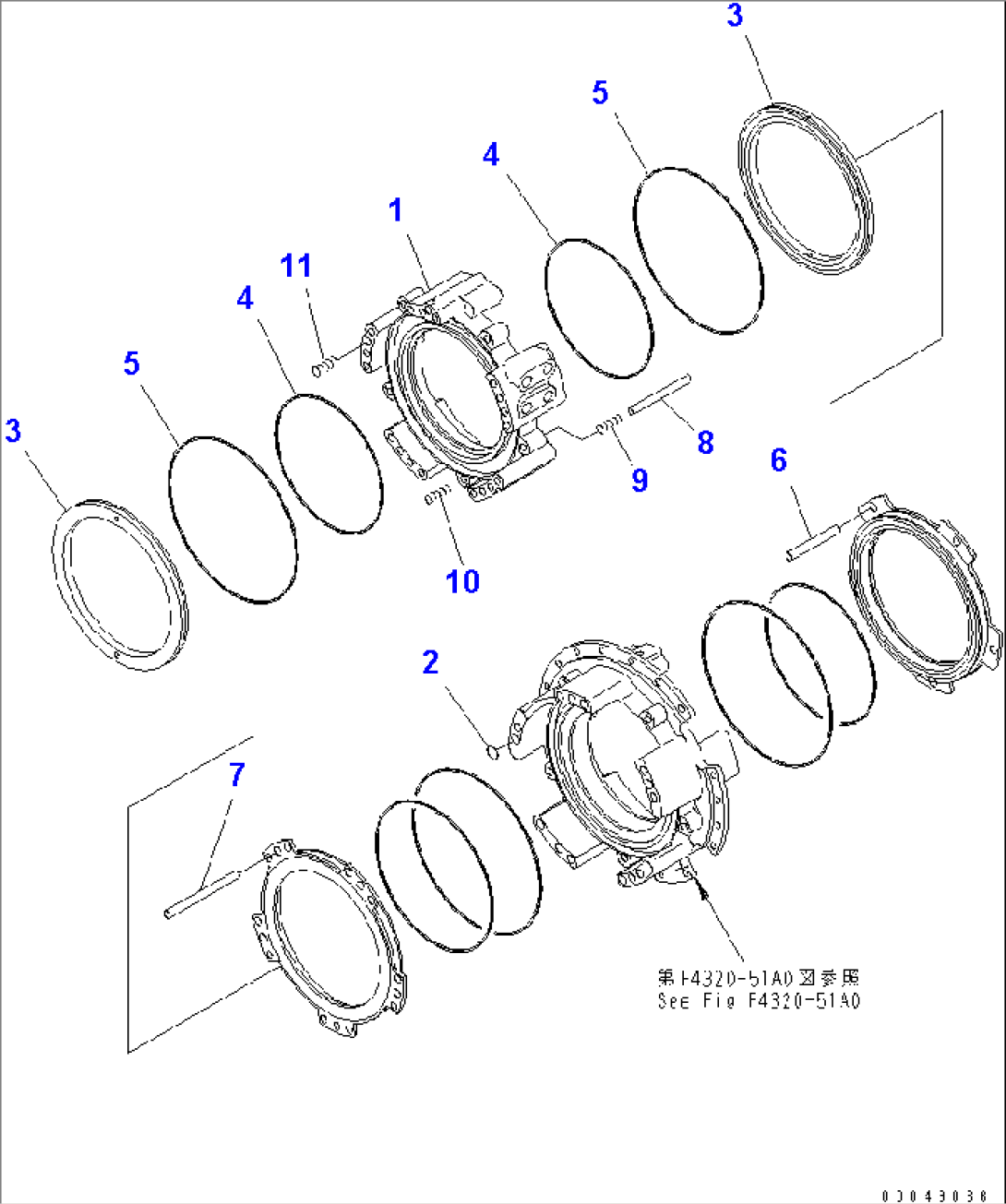

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 425-15-31151 | HOUSING | 55001- | |
| 2 | 569-15-41310 | SLEEVE | 55001-(100030) | |
| 3 | 425-15-32751 | PISTON | 55001- | |
| 4 | 113-15-12870 | RING | 55001- | |
| 5 | 144-15-22881 | RING | 55001- | |
| 6 | 421-15-11270 | PIN,(D=15.0,L=125.0) | 55001- | |
| 7 | 145-14-12760 | PIN | 55001- | |
| 8 | 155-15-12770 | PIN | 55001- | |
| 9 | 425-15-32910 | SPRING | 55001- | |
| 10 | 421-15-12910 | SPRING | 55001- | |
| 11 | 425-15-32921 | SPRING | 55001- |
