| Item | Part No. | Part Name | Qty | Serial No. |

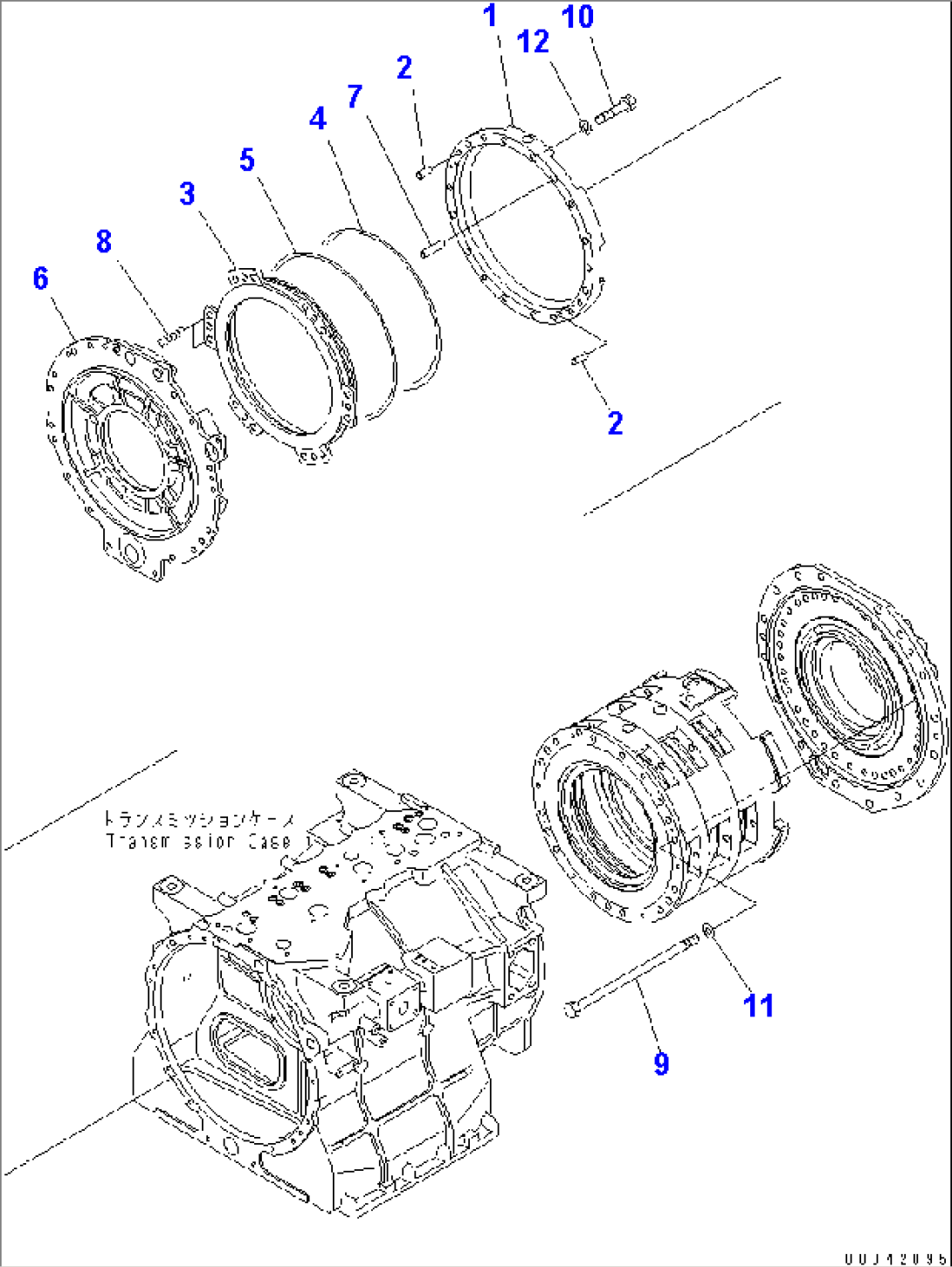

| (566-15-81000) | TRANSMISSION ASS'Y | 11001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 1 | 566-15-81171 | HOUSING,HIGH | 11001- | |
| 2 | 04020-01434 | PIN,DOWEL | 11001- | |
| 3 | 566-15-62750 | PISTON,HIGH | 11001- | |
| 4 | 198-15-29230 | RING,SEAL (K2) | 11001- | |
| 5 | 582-15-19250 | RING,SEAL (K2) | 11001- | |
| 6 | 566-15-81181 | HOUSING | 11001- | |
| 7 | 421-15-11280 | PIN,(D=15.0,L= 60.0),(D=15,L=60) | 11001- | |
| 8 | 709-12-13250 | SPRING | 11001- | |
| 9 | 566-15-61290 | BOLT | 11001- | |
| 10 | 01010-61465 | BOLT | 11001- | |
| 11 | 01643-31445 | WASHER | 11001- | |
| 12 | 01643-31445 | WASHER | 11001- |
