| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (566-15-72000) | TRANSMISSION ASS'Y | 6001- | ||
| (566-15-71003) | TRANSMISSION ASS'Y | (5454)-006000 | ||
| (566-15-71002) | TRANSMISSION ASS'Y | 5680-(5453) | ||
| (566-15-01100) | TRANSMISSION ASS'Y | 5001-5679 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2531. | ||||

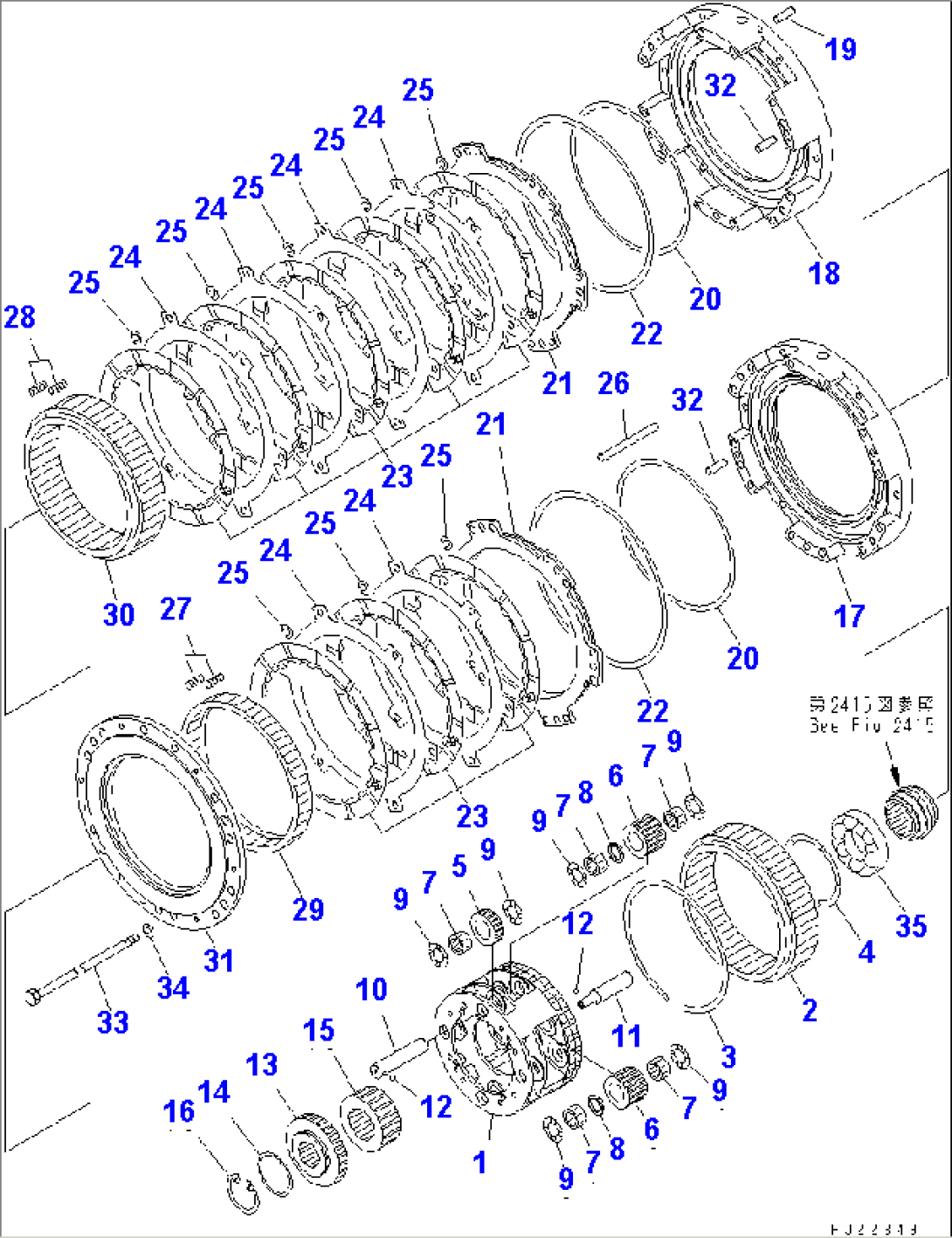

| 566-15-01150 | CARRIER ASS'Y | 5001- | ||
| 1 | 566-15-72333 | CARRIER | (4062)- | |
| 1 | \0\566-15-72332 | CARRIER | 5001-(4061) | |
| 2 | 566-15-72622 | GEAR,RING | 5001- | |
| 3 | 561-15-59510 | RING,SNAP | 5001- | |
| 4 | 566-15-79230 | RING,SEAL | 5001- | |
| 5 | 566-15-62421 | GEAR | 5001- | |
| 6 | 566-15-82431 | GEAR | (106456)- | |
| 6 | \0\566-15-62431 | GEAR | 5001-(106455) | |
| 7 | 712-86-19320 | BEARING | (106585)- | |
| 7 | 425-15-19420 | BEARING | 5001-(106584) | |
| 8 | 566-15-62590 | SPACER | 5001- | |
| 9 | 425-15-19440 | WASHER,THRUST | (4090)- | |
| 9 | \0\566-15-72570 | WASHER,THRUST | 5001-(4089) | |
| 10 | 566-15-82520 | SHAFT | (106585)- | |
| 10 | 566-15-62521 | SHAFT | 5001-(106584) | |
| 11 | 566-15-62531 | SHAFT | 5001- | |
| 12 | 04260-00635 | BALL | 5001- | |
| 13 | 566-15-62231 | GEAR | 5001- | |
| 14 | 07018-11004 | RING,SEAL | 5001- | |
| 15 | 566-15-82240 | GEAR | (106459)- | |
| 15 | \0\566-15-62241 | GEAR | 5001-(106458) | |
| 16 | 569-15-49530 | RING,SNAP | 5001- | |
| 17 | 566-15-61151 | HOUSING,3RD | 5001- | |
| 18 | 566-15-61141 | HOUSING,REVERSE | 5001- | |
| 19 | 569-15-41310 | SLEEVE | 5001- | |
| 20 | 562-15-19330 | RING,SEAL (K3) | 5001- | |
| 21 | 566-15-72770 | PISTON,3RD AND REVERSE | (4074)- | |
| 21 | \0\566-15-62761 | PISTON,3RD AND REVERSE | 5001-(4073) | |
| 22 | 198-15-29230 | RING,SEAL (K3) | 5001- | |
| 23 | 566-15-72710 | DISC | 5001- | |
| 24 | 566-15-62732 | PLATE | 5001- | |
| 25 | 175-15-42880 | SPRING | 5001- | |
| 26 | 566-15-62770 | PIN,(D=15,L=160) | 5001- | |
| 27 | 103-15-22911 | SPRING,(L=54) | 5001- | |
| 28 | 145-14-12780 | SPRING,(L=77) | 5001- | |
| 29 | 566-15-62641 | GEAR,RING | 5001- | |
| 30 | 566-15-62631 | GEAR,RING | 5001- | |
| 31 | 566-15-71162 | HOUSING | (4061)- | |
| 31 | \0\566-15-71161 | HOUSING | 5001-(4060) | |
| 32 | 04020-01434 | PIN,DOWEL | 5001- | |
| 33 | 566-15-61290 | BOLT | 5001- | |
| 34 | 01643-31445 | WASHER | 5001- | |
| 35 | 569-15-39630 | BEARING | 5001- |
