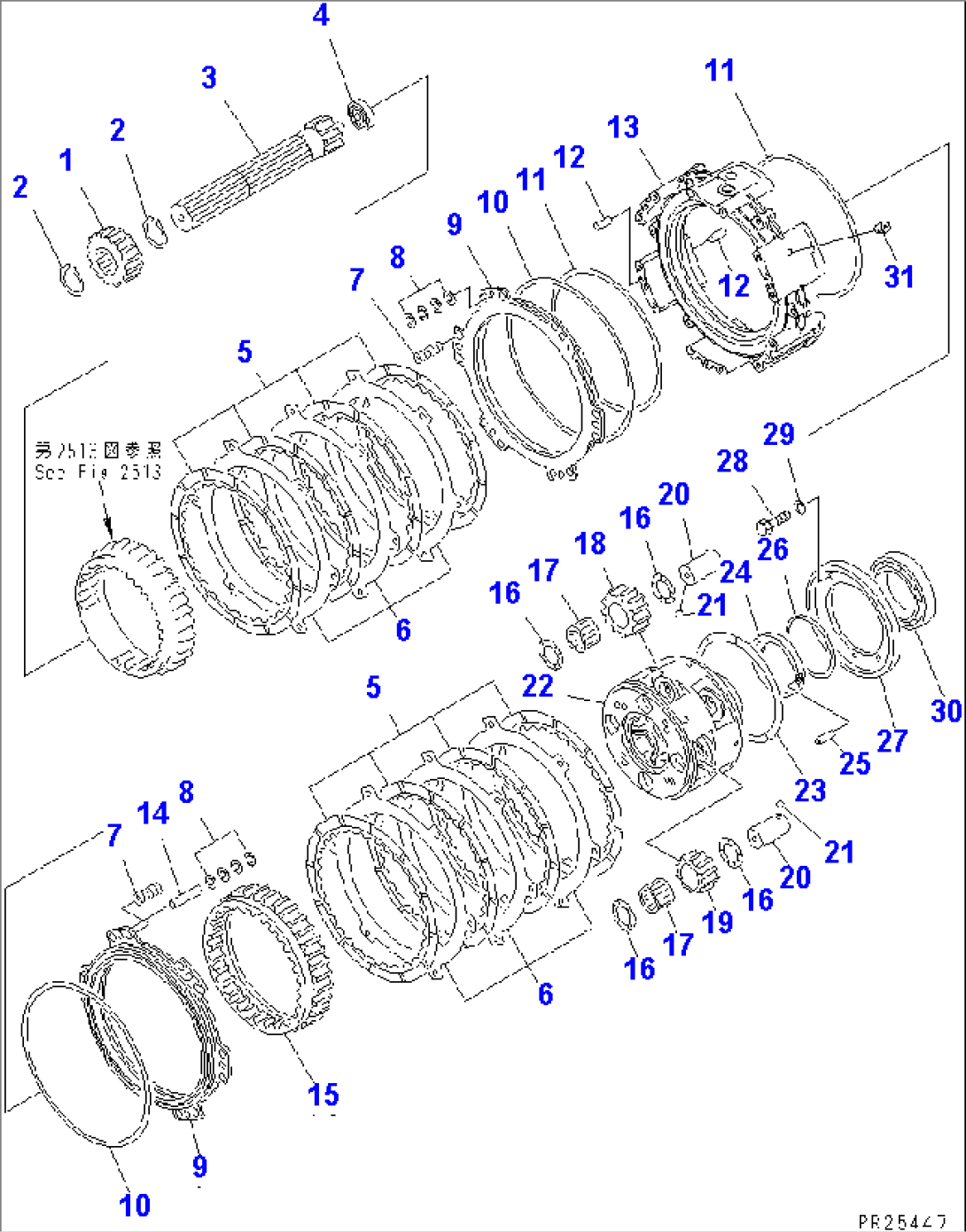

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (569-15-41003) | TRANSMISSION ASS'Y | (4002)- | ||
| (569-15-41002) | TRANSMISSION ASS'Y | 1055-(4001) | ||
| (\0\569-15-01100) | TRANSMISSION ASS'Y | 1001-1054 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 569-15-32250 | GEAR | 1001- | |
| 2 | 569-15-49530 | RING,SNAP | 1001- | |
| 3 | 569-15-42120 | SHAFT | 1001- | |
| 4 | 569-15-39660 | BEARING | 1001- | |
| 5 | 561-15-42721 | DISC | 1001- | |
| 6 | 561-15-52940 | PLATE | 1001- | |
| 7 | 425-15-12920 | SPRING, (L= 68.0),(L=68) | 1001- | |
| 8 | 175-15-42880 | SPRING | 1001- | |
| 9 | 569-15-32760 | PISTON | 1001- | |
| 10 | 562-15-19241 | RING,SEAL (K3) | 1001- | |
| 11 | 568-15-12840 | RING,SEAL (K3) | 1001- | |
| 12 | 04020-01638 | PIN,DOWEL | 1001- | |
| 13 | 569-15-41132 | HOUSING | 1055- | |
| 13 | \0\569-15-41131 | HOUSING | 1001-1054 | |
| 14 | 562-15-11270 | PIN,(D=15, L=100) | 1001- | |
| 15 | 569-15-32610 | GEAR,RING | 1001- | |
| 16 | 569-15-32590 | WASHER,THRUST | 1001- | |
| 17 | 569-15-39420 | BEARING | 1001- | |
| 18 | 569-15-32450 | GEAR | 1001- | |
| 19 | 569-15-32440 | GEAR | 1001- | |
| 20 | 569-15-32540 | SHAFT | 1001- | |
| 21 | 04260-00635 | BALL | 1001- | |
| 22 | 569-15-42351 | CARRIER | 1001- | |
| 23 | 569-15-39250 | RING,SEAL | 1001- | |
| 24 | 569-15-42361 | SPACER | 1001- | |
| 25 | 04020-00616 | PIN,DOWEL | 1001- | |
| 26 | 113-15-12260 | RING,SEAL | 1001- | |
| 27 | 569-15-42380 | COVER | 1001- | |
| 28 | 01010-81025 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | 566-15-69640 | BEARING | 1001- | |
| 31 | 198-15-26510 | PLUG | 1055- |
