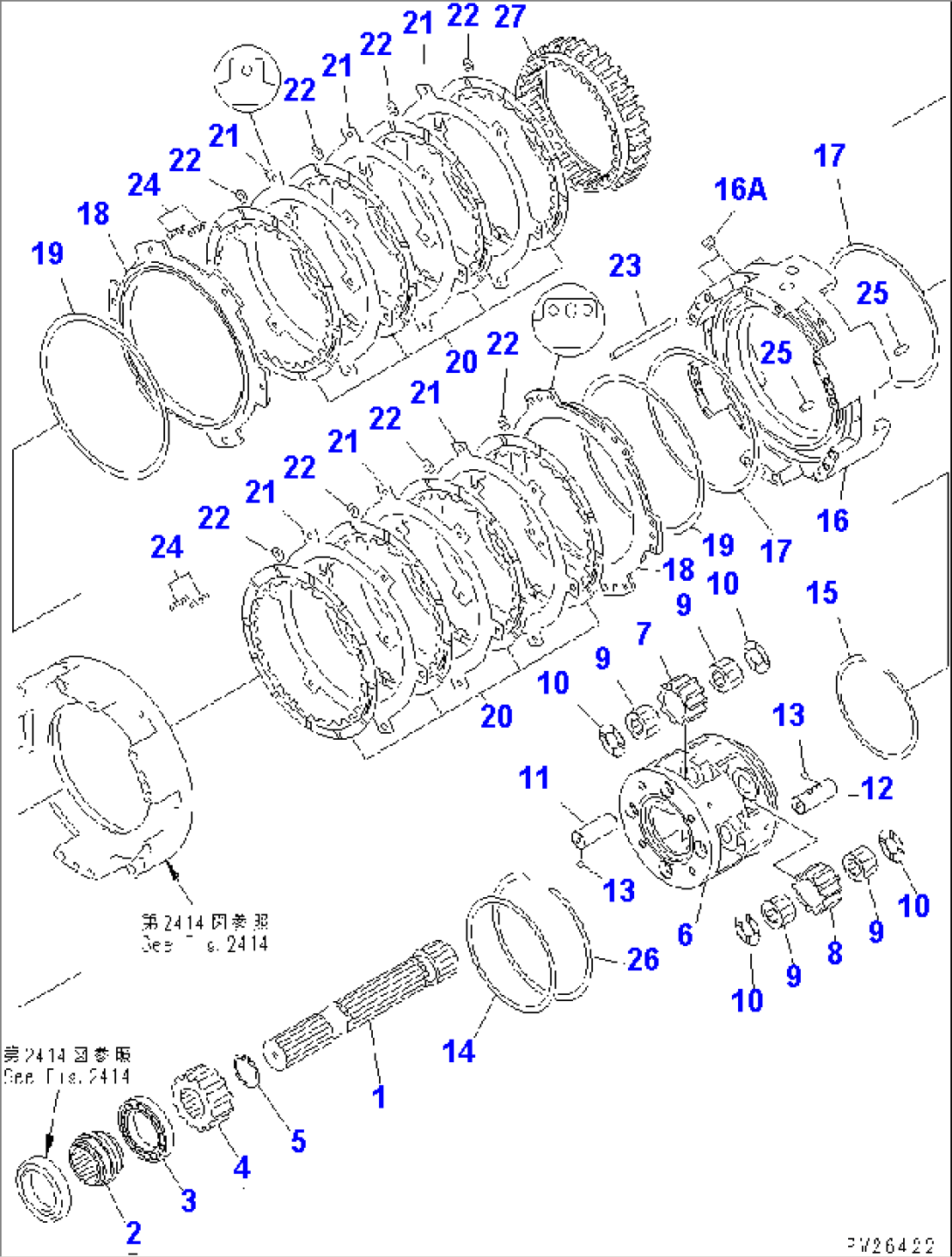

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (566-15-72000) | TRANSMISSION ASS'Y | 6001- | ||
| (566-15-71003) | TRANSMISSION ASS'Y | (5454)-006000 | ||
| (566-15-71002) | TRANSMISSION ASS'Y | 5680-(5453) | ||
| (566-15-01100) | TRANSMISSION ASS'Y | 5001-5679 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2531. | ||||
| 1 | 566-15-72121 | SHAFT | 5001- | |
| 2 | 566-15-62191 | SPACER | 5001- | |
| 3 | 569-15-39630 | BEARING | 5001- | |
| 4 | 566-15-62250 | GEAR | 5001- | |
| 5 | 569-15-49530 | RING,SNAP | 5001- | |
| 6 | 566-15-72351 | CARRIER | 5001- | |
| 7 | 17M-15-42441 | GEAR | (106456)- | |
| 7 | \1\17A-15-22440 | GEAR | (5032)-(106455) | |
| 7 | \1\566-15-62440 | GEAR | 5001-(5031) | |
| 8 | 566-15-62450 | GEAR | 5001- | |
| 9 | 566-15-69420 | BEARING | 5001- | |
| 10 | 561-15-32570 | WASHER,THRUST | (4090)- | |
| 10 | \0\566-15-72580 | WASHER,THRUST | 5001-(4089) | |
| 11 | 566-15-62540 | SHAFT | 5001- | |
| 12 | 566-15-62550 | SHAFT | 5001- | |
| 13 | 04260-00635 | BALL | 5001- | |
| 14 | 566-15-69290 | RING,SEAL | 5001- | |
| 15 | 232-15-19530 | RING,SNAP | 5001- | |
| 566-15-01180 | HOUSING ASS'Y | 5680- | ||
| 16 | \6\ | HOUSING,2ND AND 1ST | 5680- | |
| 16 | \0\566-15-71131 | HOUSING,2ND AND 1ST | 5001-5679 | |
| 16A | 198-15-26511 | ORIFICE | (106585)- | |
| 16A | 198-15-26510 | PLUG | 5680-(106584) | |
| 17 | 562-15-19330 | RING,SEAL (K3) | 5001- | |
| 18 | 566-15-72770 | PISTON,2ND AND 1ST | (4074)- | |
| 18 | \0\566-15-62761 | PISTON,2ND AND 1ST | 5001-(4073) | |
| 19 | 198-15-29230 | RING,SEAL (K3) | 5001- | |
| 20 | 566-15-72710 | DISC | 5001- | |
| 21 | 566-15-62732 | PLATE | 5001- | |
| 22 | 175-15-42880 | SPRING | 5001- | |
| 23 | 281-15-11370 | PIN,(D=15,L=175) | 5001- | |
| 24 | 135-15-32920 | SPRING,(L=58) | 5001- | |
| 25 | 04020-01434 | PIN,DOWEL | 5001- | |
| 26 | 566-15-79510 | RING | 5001- | |
| 27 | 566-15-72610 | GEAR,RING | 5001- |
