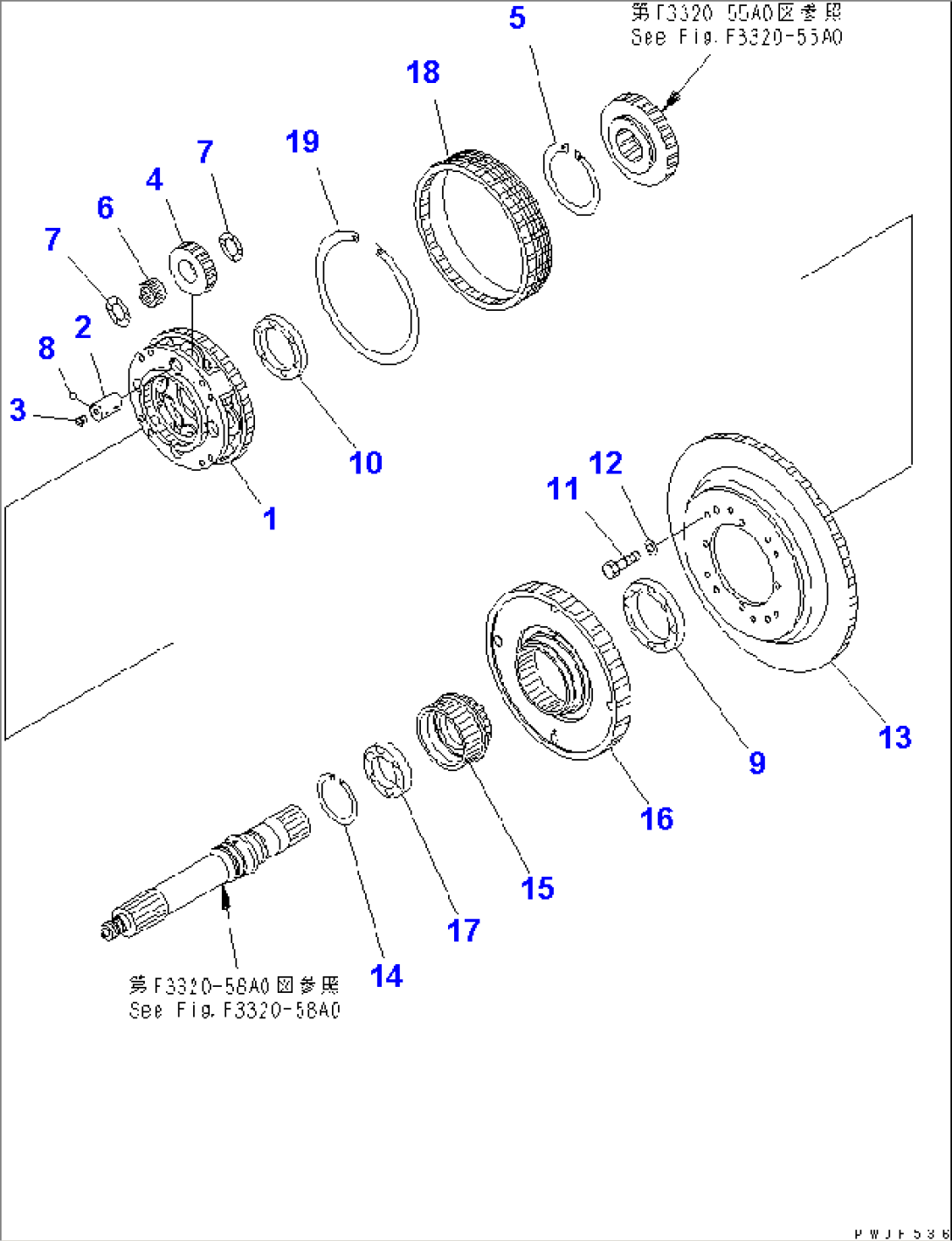

| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-51000) | TRANSMISSION ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 1 | 569-15-42311 | CARRIER | 7001- | |
| 561-15-00330 | SHAFT ASS'Y | 7001- | ||
| 2 | 561-15-62510 | SHAFT | 7001- | |
| 3 | 569-15-31260 | PLUG | 7001- | |
| 4 | 569-15-32410 | GEAR | 7001- | |
| 5 | 07018-11205 | RING,SEAL (K2) | 7001- | |
| 6 | 569-15-59410 | BEARING | 7001- | |
| 7 | 569-15-32580 | WASHER,THRUST | 7001- | |
| 8 | 04260-00635 | BALL | 7001- | |
| 9 | 569-15-39620 | BEARING | 7001- | |
| 10 | 569-15-39630 | BEARING | 7001- | |
| 11 | 01010-81235 | BOLT | 7001- | |
| 12 | 01643-31232 | WASHER | 7001- | |
| 13 | 569-15-41361 | PLATE | 7001- | |
| 14 | 04077-00110 | RING | 7001- | |
| 15 | 569-15-42210 | GEAR | 7001- | |
| 16 | 569-15-42290 | HUB | 7001- | |
| 17 | 06000-06014 | BEARING | 7001- | |
| 18 | 569-15-32280 | GEAR,RING | 7001- | |
| 19 | 154-15-12670 | RING,SNAP | 7001- |
