| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-71001) | TRANSMISSION ASS'Y | 10716- | ||
| (569-15-71000) | TRANSMISSION ASS'Y | 8001-10715 | ||

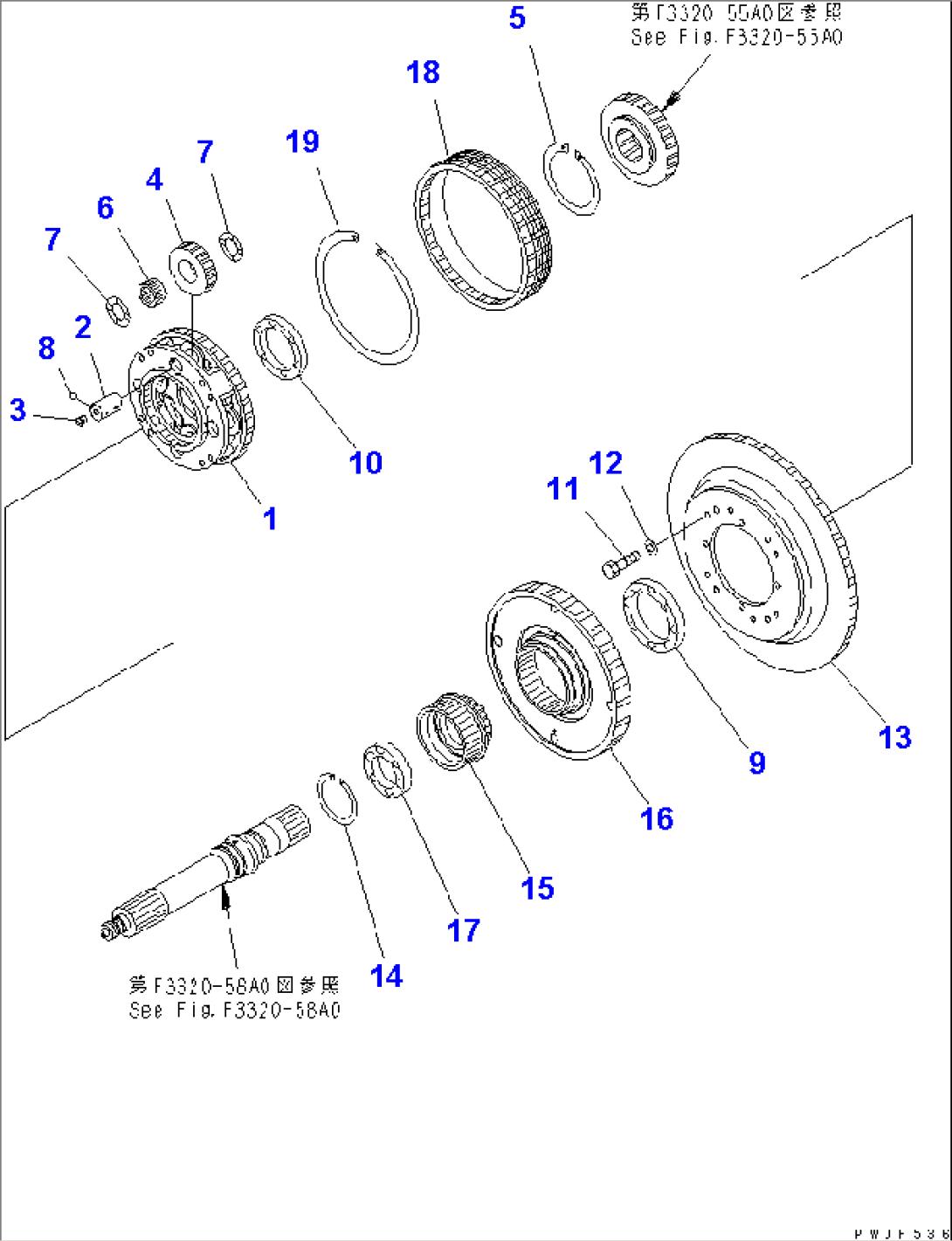

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A2 TO F3320-66A2. | ||||
| 1 | 569-15-42311 | CARRIER | 8001- | |
| 561-15-00330 | SHAFT ASS'Y | 8001- | ||
| 2 | \6\ | SHAFT | (101444)- | |
| 2 | \6\ | SHAFT | 8001-(101443) | |
| 3 | 569-15-31260 | PLUG | 8001- | |
| 4 | 569-15-32410 | GEAR | 8001- | |
| 5 | 561-15-69220 | SEAL RING (K2) | 8001- | |
| 6 | 569-15-59410 | BEARING | 8001- | |
| 7 | 569-15-32580 | WASHER | 8001- | |
| 8 | 04260-00635 | BALL | 8001- | |
| 9 | 569-15-39620 | BEARING | 8001- | |
| 10 | 569-15-39630 | BEARING | 8001- | |
| 11 | 01010-81235 | BOLT | 8001- | |
| 12 | 01643-31232 | WASHER | 8001- | |
| 13 | 569-15-41361 | PLATE | 8001- | |
| 14 | 04077-00110 | RING | 8001- | |
| 15 | 569-15-52210 | GEAR | 8001- | |
| 16 | 569-15-42290 | HUB | 8001- | |
| 17 | 06000-06014 | BEARING | 8001- | |
| 18 | 569-15-32280 | GEAR | 8001- | |
| 19 | 154-15-12670 | RING | 8001- |
