| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (566-15-72030) | TRANSMISSION ASS'Y | 6001- | ||
| (566-15-71032) | TRANSMISSION ASS'Y | (5431)-006000 | ||
| (566-15-71031) | TRANSMISSION ASS'Y | 5706-(5430) | ||
| (566-15-01200) | TRANSMISSION ASS'Y | 5001-5705 | ||

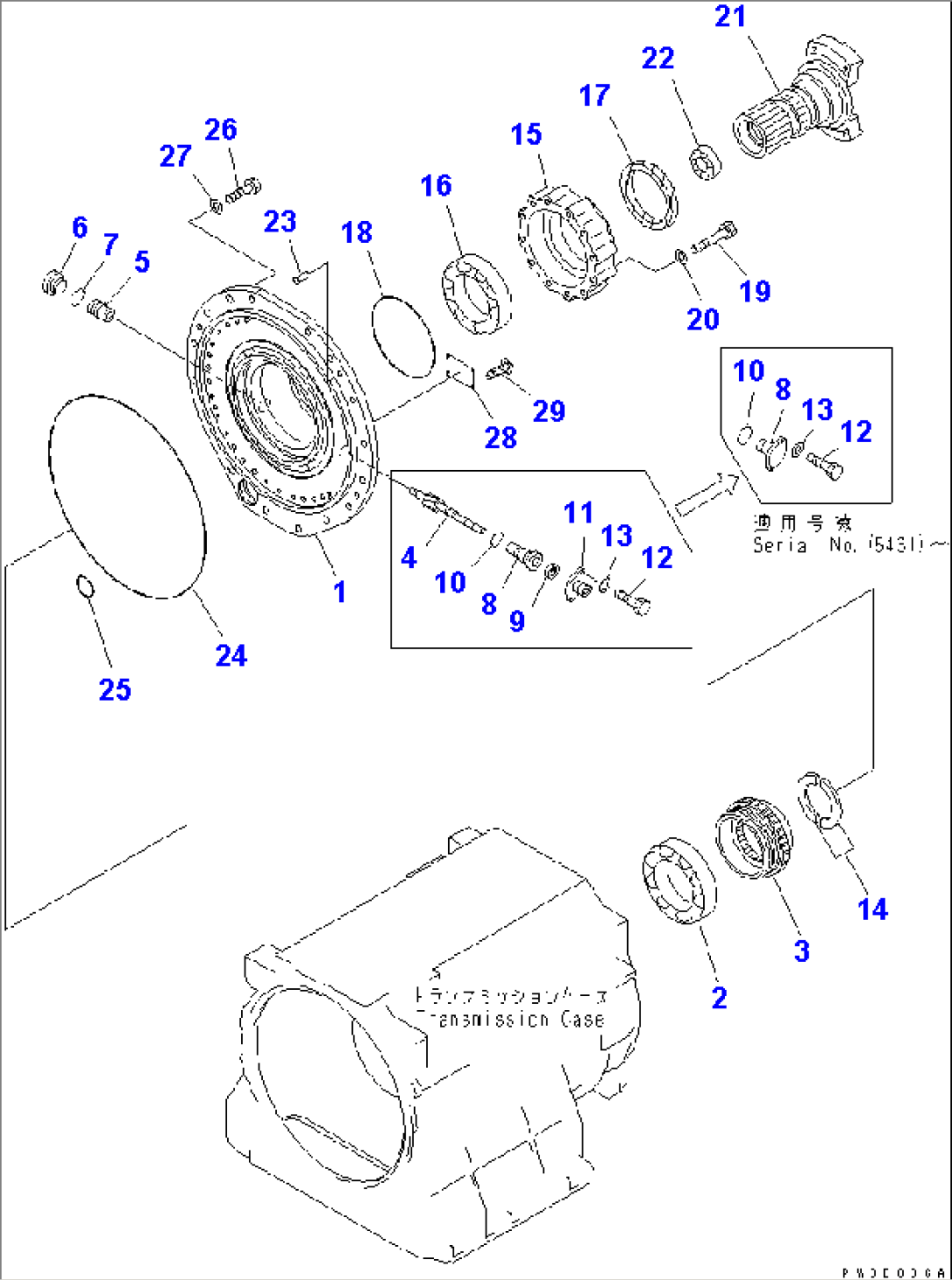

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2421 TO 2535 | ||||
| 1 | 566-15-73112 | CASE | 5706- | |
| 1 | 566-15-73111 | CASE | 5001-5705 | |
| 2 | 130-09-31210 | BEARING | 5001- | |
| 3 | 569-15-43410 | GEAR,WORM | 5001- | |
| 4 | 566-15-63421 | SHAFT | 5001-(5430) | |
| 5 | 569-15-33370 | BUSHING | 5001- | |
| 6 | 07040-13618 | PLUG | 5001- | |
| 7 | 07002-03634 | O-RING (K3) | 5001- | |
| 8 | 566-15-71890 | COVER | (5431)- | |
| 8 | 566-15-11480 | BUSHING | 5001-(5430) | |
| 9 | 281-15-13820 | SEAL,OIL (K3) | 5001-(5430) | |
| 10 | 07000-73025 | O-RING (K3) | 5001- | |
| 11 | 566-15-11490 | COVER | 5001-(5430) | |
| 12 | 01010-80820 | BOLT | 5001- | |
| 13 | 01643-30823 | WASHER | 5001- | |
| 14 | 569-15-32180 | SPACER | 5001- | |
| 15 | 569-15-33120 | CAGE | 5001- | |
| 16 | 569-15-39650 | BEARING | 5001- | |
| 17 | 07012-50120 | SEAL,OIL (K3) | 5001- | |
| 18 | 07000-75185 | O-RING (K3) | (106726)- | |
| 18 | 07000-05185 | O-RING (K3) | 5001-(106725) | |
| 19 | 01010-51480 | BOLT | 5001- | |
| 20 | 01643-31445 | WASHER | 5001- | |
| 21 | 569-15-42130 | COUPLING | 5001- | |
| 22 | 561-15-79661 | BEARING | (106974)- | |
| 22 | 569-15-39660 | BEARING | 5001-(106973) | |
| 23 | 04020-01434 | PIN,DOWEL | 5001- | |
| 24 | 07000-75465 | O-RING (K3) | (106726)- | |
| 24 | 07000-05470 | O-RING (K3) | 5001-(106725) | |
| 25 | 07000-72055 | O-RING (K3) | (106726)- | |
| 25 | 07000-12055 | O-RING (K3) | 5001-(106725) | |
| 26 | 01010-61645 | BOLT | 5001- | |
| 27 | 01643-31645 | WASHER | 5001- | |
| 28 | 09608-05080 | PLATE, NAME,(LIMITED SUPPLY) | 5001- | |
| 29 | 04418-13060 | SCREW | 5001- |
