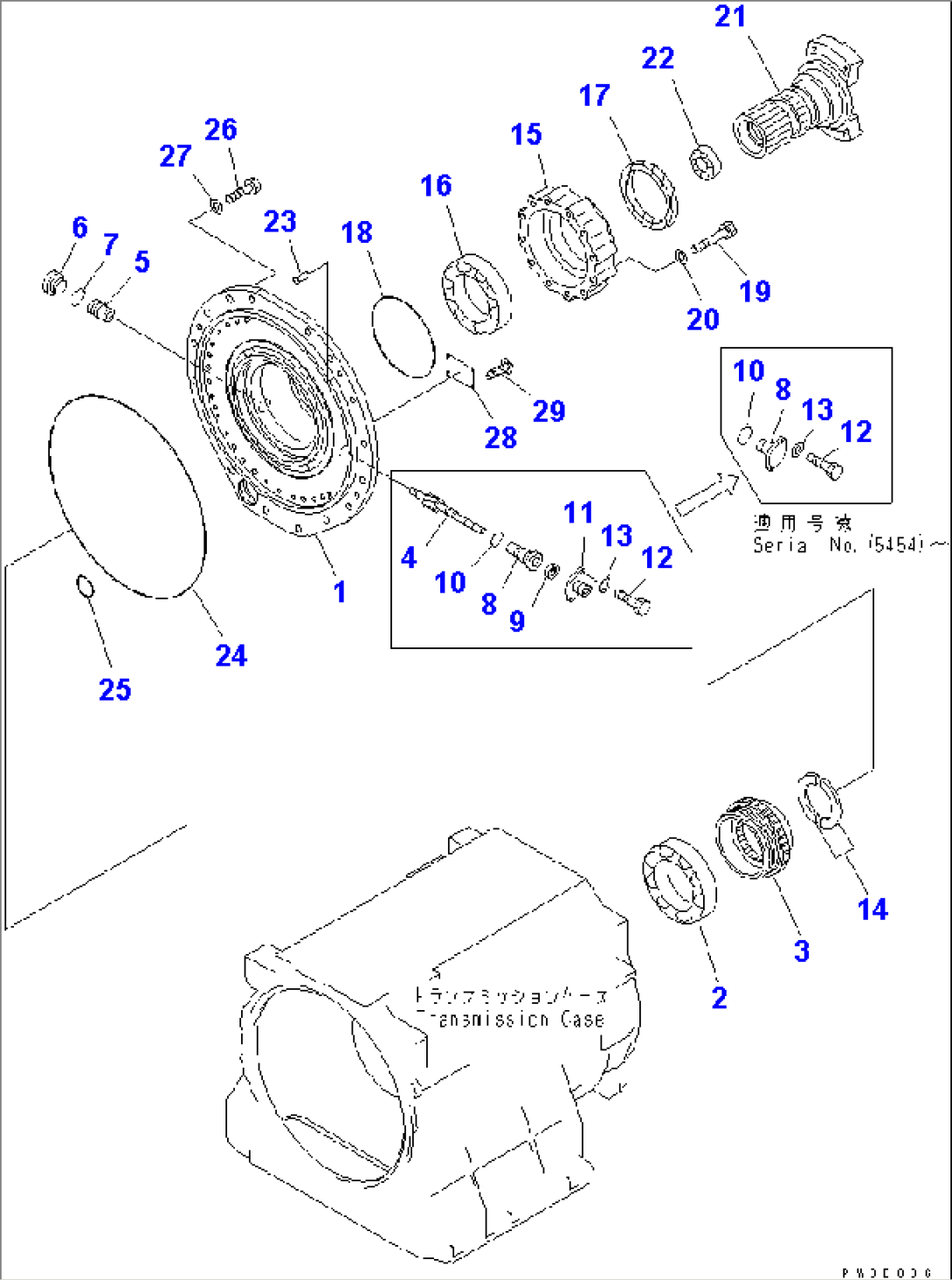

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (566-15-72000) | TRANSMISSION ASS'Y | 2001- | ||
| (566-15-71003) | TRANSMISSION ASS'Y | (5454)-002000 | ||
| (566-15-71002) | TRANSMISSION ASS'Y | 1055-(5453) | ||
| (566-15-01100) | TRANSMISSION ASS'Y | 1001-1054 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2531. | ||||
| 1 | 566-15-73112 | CASE | 1055- | |
| 1 | 566-15-73111 | CASE | 1001-1054 | |
| 2 | 130-09-31210 | BEARING | 1001- | |
| 3 | 569-15-43410 | GEAR,WORM | 1001- | |
| 4 | 566-15-63421 | SHAFT | 1001-(5453) | |
| 5 | 569-15-33370 | BUSHING | 1001- | |
| 6 | 07040-13618 | PLUG | 1001- | |
| 7 | 07002-03634 | O-RING (K3) | 1001- | |
| 8 | 566-15-71890 | COVER | (5454)- | |
| 8 | 566-15-11480 | BUSHING | 1001-(5453) | |
| 9 | 281-15-13820 | SEAL,OIL (K3) | 1001-(5453) | |
| 10 | 07000-73025 | O-RING (K3) | 1001- | |
| 11 | 566-15-11490 | COVER | 1001-(5453) | |
| 12 | 01010-80820 | BOLT | 1001- | |
| 13 | 01643-30823 | WASHER | 1001- | |
| 14 | 569-15-32180 | SPACER | 1001- | |
| 15 | 569-15-33120 | CAGE | 1001- | |
| 16 | 569-15-39650 | BEARING | 1001- | |
| 17 | 07012-50120 | SEAL,OIL (K3) | 1001- | |
| 18 | 07000-05185 | O-RING (K3) | 1001- | |
| 19 | 01010-61480 | BOLT | 1001- | |
| 20 | 01643-31445 | WASHER | 1001- | |
| 21 | 569-15-42130 | COUPLING | 1001- | |
| 22 | 569-15-39660 | BEARING | 1001- | |
| 23 | 04020-01434 | PIN,DOWEL | 1001- | |
| 24 | 07000-05470 | O-RING (K3) | 1001- | |
| 25 | 07000-12055 | O-RING (K3) | 1001- | |
| 26 | 01010-61645 | BOLT | 1001- | |
| 27 | 01643-31645 | WASHER | 1001- | |
| 28 | 09608-05080 | PLATE, NAME,(LIMITED SUPPLY) | 1001- | |
| 29 | 04418-13060 | SCREW | 1001- |
