| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (567-15-41002) | TRANSMISSION ASS'Y | 1061- | ||
| (567-15-41001) | TRANSMISSION ASS'Y | 1001-1060 | ||

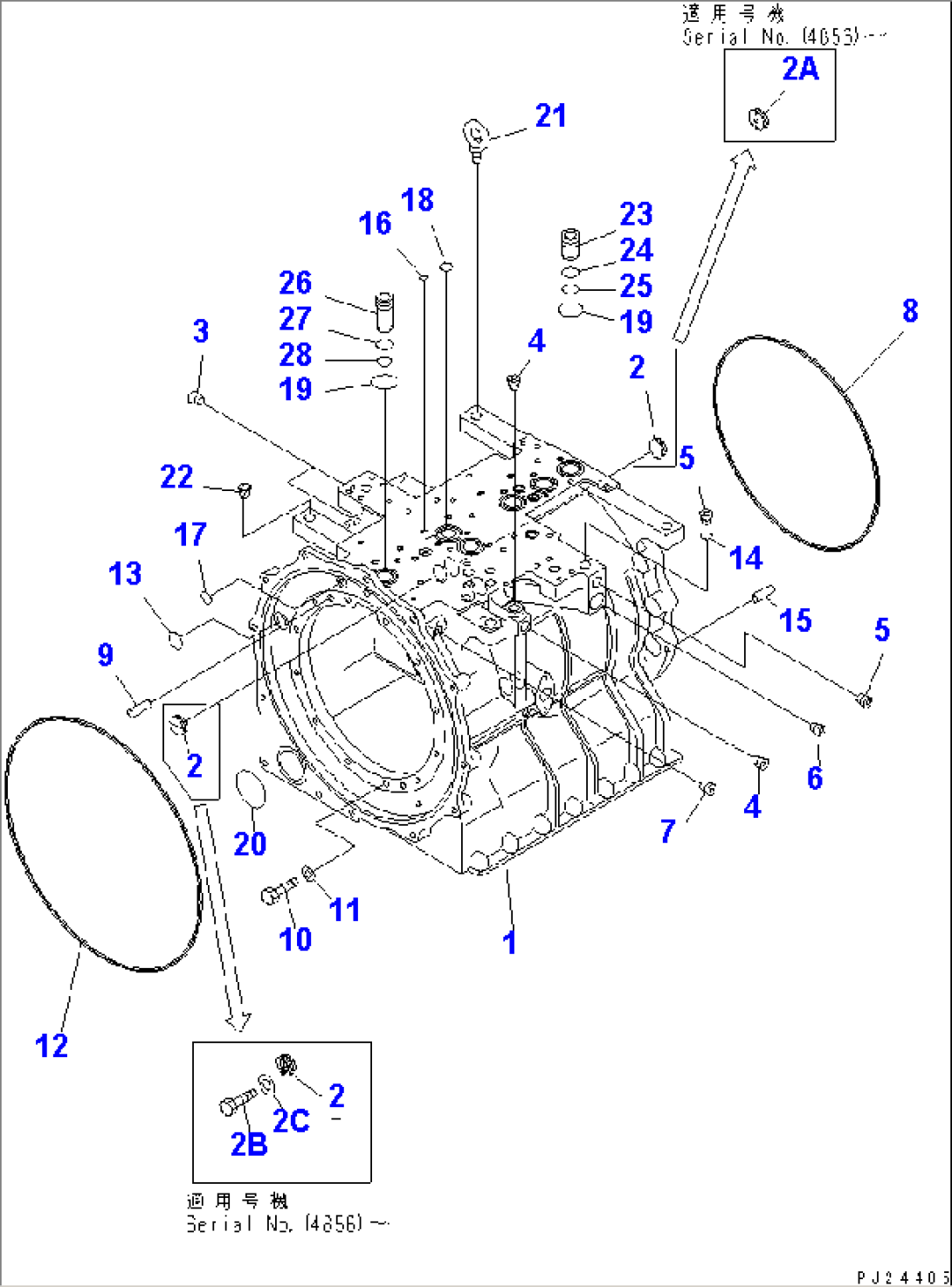

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 567-15-01111 | CASE ASS'Y | 1061- | ||
| 567-15-01110 | 1001-1060 | |||
| 1 | \6\ | CASE | 1001- | |
| 2 | 567-15-41270 | PLUG | (4856)- | |
| 569-15-31271 | PLUG | (4571)-(4855) | ||
| 569-15-31270 | PLUG | 1001-(4570) | ||
| 2A | 567-15-41280 | PLUG | (4856)- | |
| 2B | 01010-80830 | BOLT | (4856)- | |
| 2C | 01643-30823 | WASHER | (4856)- | |
| 3 | 07043-70211 | PLUG | 1001- | |
| 4 | 07043-70415 | PLUG | 1001- | |
| 5 | 07043-70415 | PLUG | 1001- | |
| 6 | 07043-71019 | PLUG | 1001- | |
| 7 | 07043-70108 | PLUG | 1001- | |
| 8 | 07000-75420 | O-RING (K2) | 1001- | |
| 9 | 04020-01228 | PIN,DOWEL | 1001- | |
| 10 | 01010-81235 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 07000-75495 | O-RING (K2) | 1001- | |
| 13 | 07000-73028 | O-RING (K2) | 1001- | |
| 14 | 07000-73022 | O-RING (K2) | 1001- | |
| 15 | 04020-01228 | PIN,DOWEL | 1001- | |
| 16 | 07000-71009 | O-RING (K2) | 1001- | |
| 17 | 07000-72021 | O-RING (K2) | 1001- | |
| 18 | 07000-72020 | O-RING (K2) | 1001- | |
| 19 | 07000-73045 | O-RING (K2) | 1001- | |
| 20 | 07000-72070 | O-RING (K2) | 1001- | |
| 21 | 04530-12030 | BOLT,EYE | 1001- | |
| 22 | 07049-02025 | PLUG | 1001- | |
| 23 | 569-15-31310 | SLEEVE | 1001- | |
| 24 | 07000-73025 | O-RING (K2) | 1001- | |
| 25 | 07000-73022 | O-RING (K2) | 1001- | |
| 26 | 561-15-41330 | SLEEVE | 1001- | |
| 27 | 07000-73025 | O-RING (K2) | 1001- | |
| 28 | 07000-73022 | O-RING (K2) | 1001- |
