| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-71001) | TRANSMISSION ASS'Y | 10716- | ||
| (569-15-71000) | TRANSMISSION ASS'Y | 8001-10715 | ||

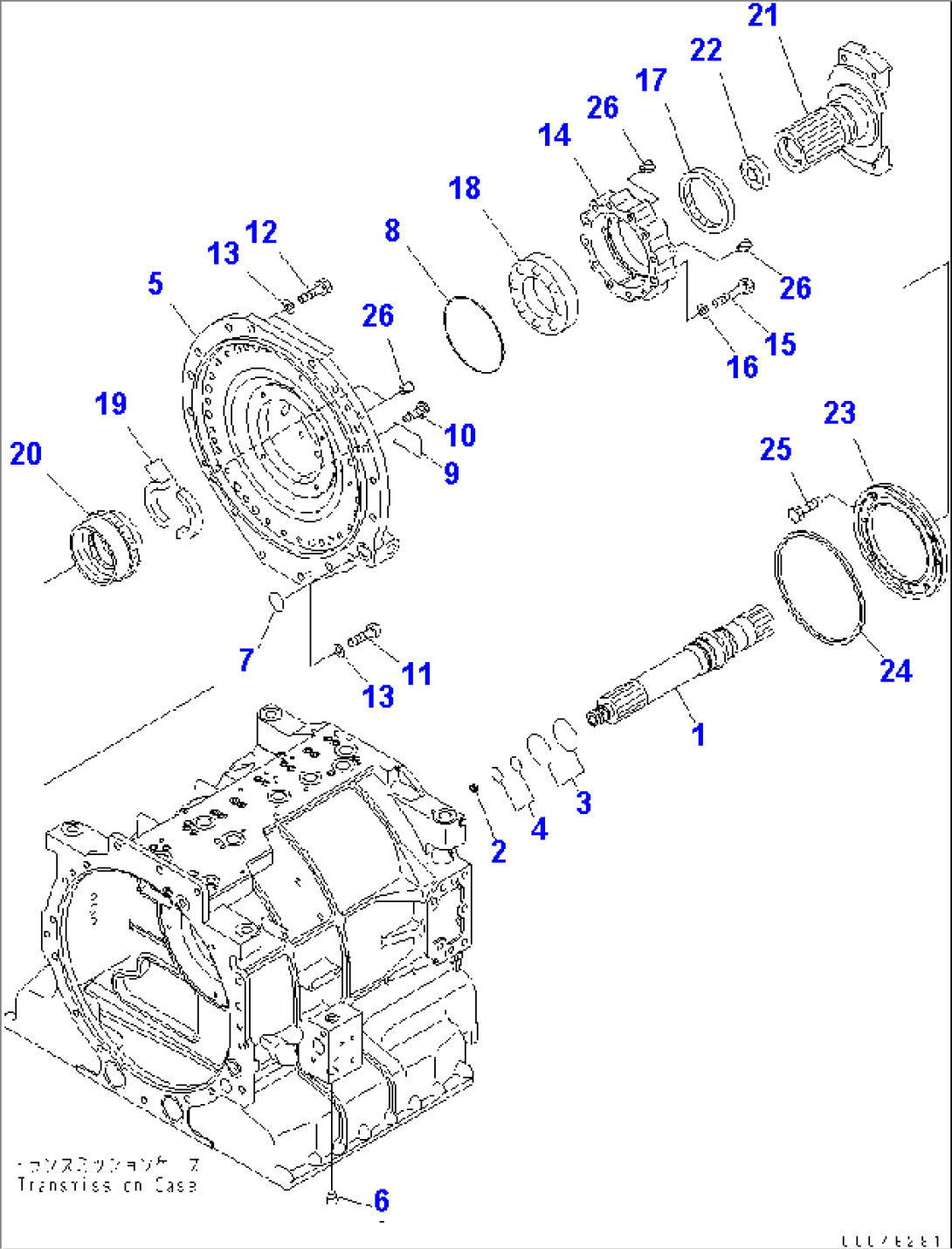

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A2 TO F3320-66A2. | ||||
| 569-15-02133 | SHAFT ASS'Y | 15308- | ||
| 569-15-02132 | SHAFT ASS'Y | 8001-15307 | ||
| 1 | \6\ | SHAFT | 15308- | |
| 1 | \6\ | SHAFT | 8001-15307 | |
| 2 | 56D-15-29790 | PLUG | 8001- | |
| 3 | 07018-20753 | RING | 8001- | |
| 4 | 07018-20353 | RING | 8001- | |
| 569-15-03120 | CASE ASS'Y | 8001- | ||
| 5 | \6\ | CASE | 8001- | |
| 6 | 07043-70617 | PLUG | 8001- | |
| 7 | 07000-73038 | O-RING (K2) | 8001- | |
| 8 | 07000-75185 | O-RING (K2) | 8001- | |
| 9 | 09608-05080 | PLATE, NAME | 8001- | |
| 10 | 04418-13060 | SCREW | 8001- | |
| 11 | 01010-61645 | BOLT | 8001- | |
| 12 | 01010-61650 | BOLT | 8001- | |
| 13 | 01643-31645 | WASHER | 8001- | |
| 14 | 569-15-53120 | CAGE | 8001- | |
| 15 | 01010-61480 | BOLT | 8001- | |
| 16 | 01643-31445 | WASHER | 8001- | |
| 17 | 07012-50120 | SEAL (K2) | 8001- | |
| 18 | 569-15-39650 | BEARING | 8001- | |
| 19 | 569-15-32180 | SPACER | 8001- | |
| 20 | 566-15-83410 | GEAR | 8001- | |
| 21 | 569-15-52130 | COUPLING | 8001- | |
| 22 | 561-15-79661 | BEARING | (100818)- | |
| 22 | 569-15-39660 | BEARING | 8001-(100817) | |
| 23 | 569-15-52380 | COVER | 8001- | |
| 24 | 561-15-49280 | RING (K2) | 8001- | |
| 25 | 01252-71025 | BOLT | 8001- | |
| 26 | 07049-01418 | PLUG | 8001- |
