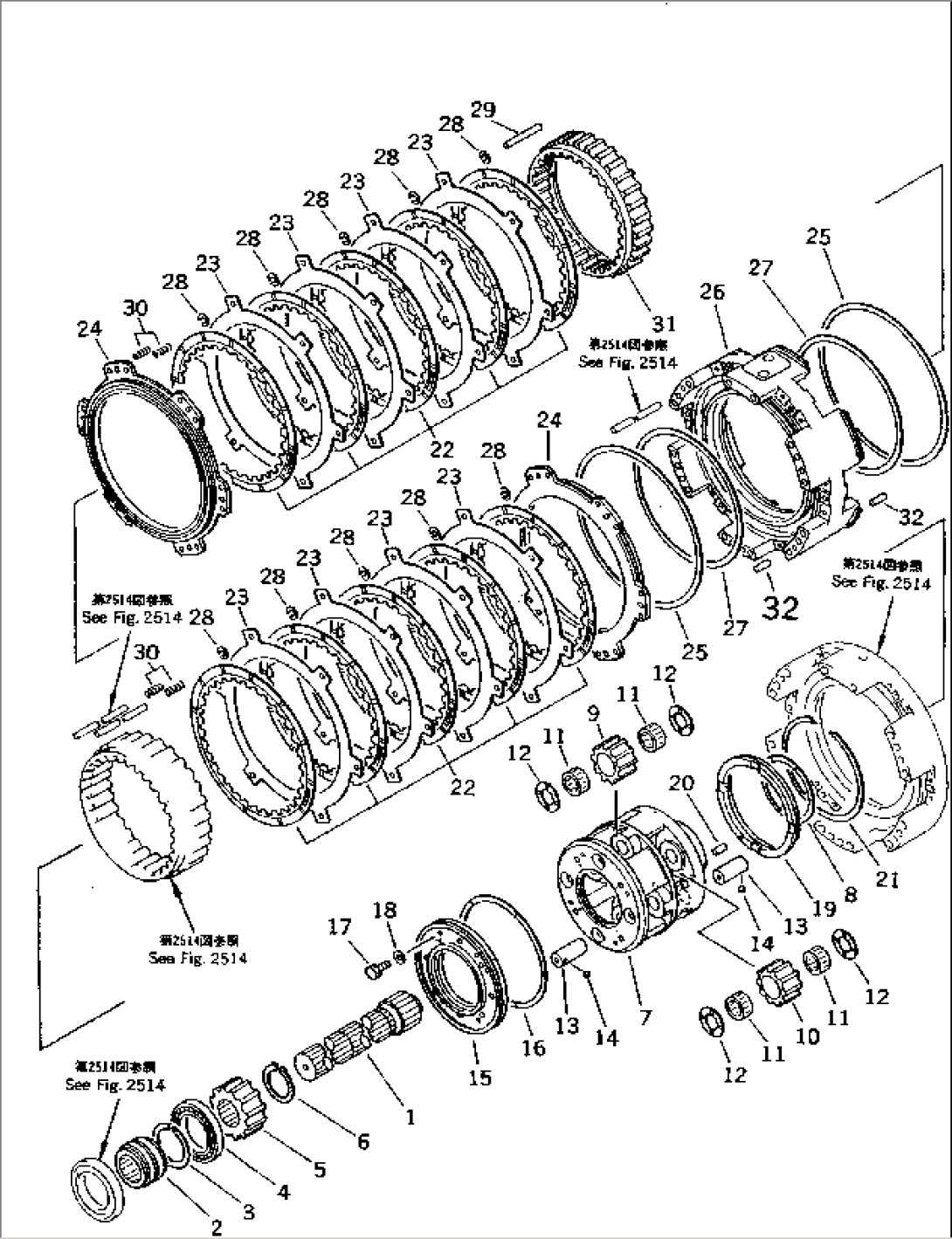

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00802) | TRANSMISSION ASS'Y | (1480)- | ||
| (\0\561-15-00801) | TRANSMISSION ASS'Y | 2299-(1479) | ||
| (561-15-00800) | TRANSMISSION ASS'Y | 2001-2298 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 561-15-62120 | SHAFT | 2001- | |
| 1 | (\2\561-15-52123) | SHAFT | (2001-(101926)) | |
| 2 | 561-15-52160 | SPACER | 2001- | |
| 3 | 569-15-39520 | RING,SNAP | 2001- | |
| 4 | 569-15-39620 | BEARING | 2001- | |
| 5 | 561-15-52251 | GEAR | 2001- | |
| 6 | 04064-08025 | RING,SNAP | 2001- | |
| 7 | 561-15-52351 | CARRIER | 2001- | |
| 8 | 195-15-49220 | RING,SEAL | 2001- | |
| 9 | 561-15-62441 | GEAR | (101927)- | |
| 9 | \0\561-15-62440 | GEAR | (1925)-(101926) | |
| 9 | \0\561-15-42440 | GEAR | 2001-(1924) | |
| 10 | 561-15-42450 | GEAR | 2001- | |
| 11 | 561-15-49420 | BEARING | 2001- | |
| 12 | 561-15-42560 | WASHER,THRUST | 2001- | |
| 13 | 561-15-42540 | SHAFT | 2001- | |
| 14 | 04260-00635 | BALL | 2001- | |
| 15 | 561-15-42390 | COVER | 2001- | |
| 16 | 561-15-59110 | RING,SEAL | 2170- | |
| 16 | \0\198-15-29271 | RING,SEAL | 2001-2169 | |
| 17 | 01010-51030 | BOLT | 2001- | |
| 18 | 01643-31032 | WASHER | 2001- | |
| 19 | 561-15-51320 | BUSHING | 2001- | |
| 20 | 04020-00820 | PIN,DOWEL | 2001- | |
| 21 | 561-15-49510 | RING,SNAP | 2001- | |
| 22 | 561-15-42711 | DISC | 2001- | |
| 23 | 561-15-52950 | PLATE | 2001- | |
| 24 | 561-15-52910 | PISTON,2ND AND 1ST | 2001- | |
| 25 | 561-15-59280 | RING,SEAL (K2) | 2001- | |
| 26 | 561-15-51131 | HOUSING,2ND AND 1ST | 2001- | |
| 27 | 561-15-59250 | RING,SEAL (K2) | 2001- | |
| 28 | 195-15-12880 | SPRING | 2001- | |
| 29 | 561-15-41280 | PIN,(D= 18, L=110) | 2001- | |
| 30 | 425-15-12920 | SPRING, (L= 68.0),(L=68) | 2001- | |
| 31 | 561-15-42610 | GEAR,RING | 2001- | |
| 32 | 04020-01842 | PIN,DOWEL | 2001- |
