| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

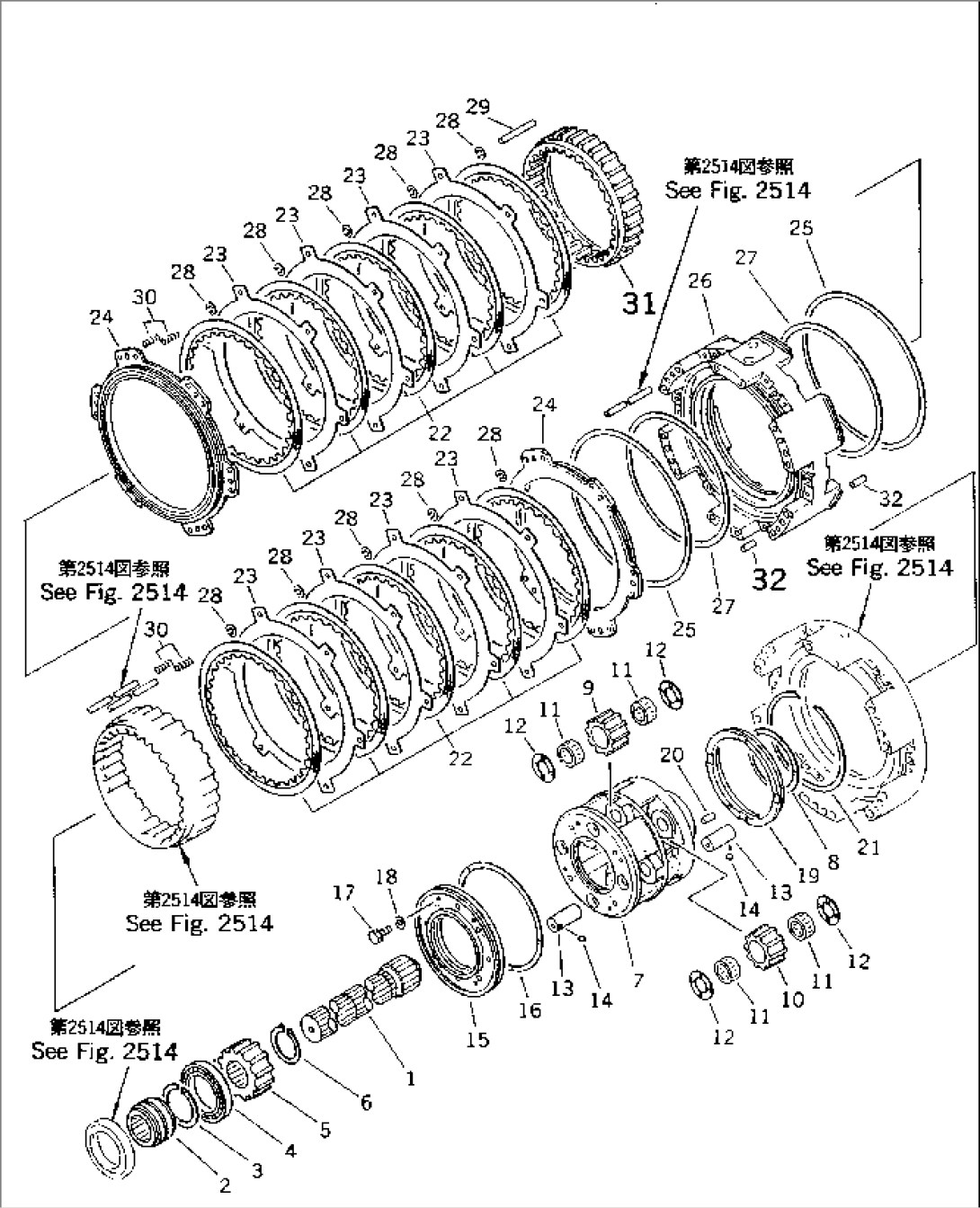

| (561-15-00900) | TRANSMISSION ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 1 | 561-15-52123 | SHAFT | 1001- | |
| 2 | 561-15-52160 | SPACER | 1001- | |
| 3 | 569-15-39520 | RING,SNAP | 1001- | |
| 4 | 569-15-39620 | BEARING | 1001- | |
| 5 | 561-15-52251 | GEAR | 1001- | |
| 6 | 04064-08025 | RING,SNAP | 1001- | |
| 7 | 561-15-52351 | CARRIER | 1001- | |
| 8 | 195-15-49220 | RING,SEAL | 1001- | |
| 9 | 561-15-42440 | GEAR | 1001- | |
| 10 | 561-15-42450 | GEAR | 1001- | |
| 11 | 561-15-49420 | BEARING | 1001- | |
| 12 | 561-15-42560 | WASHER,THRUST | 1001- | |
| 13 | 561-15-42540 | SHAFT | 1001- | |
| 14 | 04260-00635 | BALL | 1001- | |
| 15 | 561-15-42390 | COVER | 1001- | |
| 16 | 561-15-59110 | RING,SEAL | 1001- | |
| 17 | 01010-81030 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 561-15-51320 | BUSHING | 1001- | |
| 20 | 04020-00820 | PIN,DOWEL | 1001- | |
| 21 | 561-15-49510 | RING,SNAP | 1001- | |
| 22 | 562-15-22890 | DISC | 1001- | |
| 23 | 561-15-52951 | PLATE | 1001- | |
| 24 | 561-15-52911 | PISTON,2ND AND 1ST | 1001- | |
| 25 | 175-15-59240 | RING,SEAL (K2) | (1026)- | |
| 25 | \1\561-15-59280 | RING,SEAL (K2) | 1001-(1025) | |
| 26 | 561-15-51131 | HOUSING,2ND AND 1ST | 1001- | |
| 27 | 195-15-39220 | RING,SEAL (K2) | (1026)- | |
| 27 | \1\561-15-59250 | RING,SEAL (K2) | 1001-(1025) | |
| 28 | 195-15-12880 | SPRING | 1001- | |
| 29 | 561-15-41280 | PIN,(D= 18, L=110) | 1001- | |
| 30 | 425-15-12920 | SPRING, (L= 68.0),(L=68) | 1001- | |
| 31 | 561-15-42610 | GEAR,RING | 1001- | |
| 32 | 04020-01842 | PIN,DOWEL | 1001- |
