| Item | Part No. | Part Name | Qty | Serial No. |
| (566-15-81000) | TRANSMISSION ASS'Y | 7001- | ||

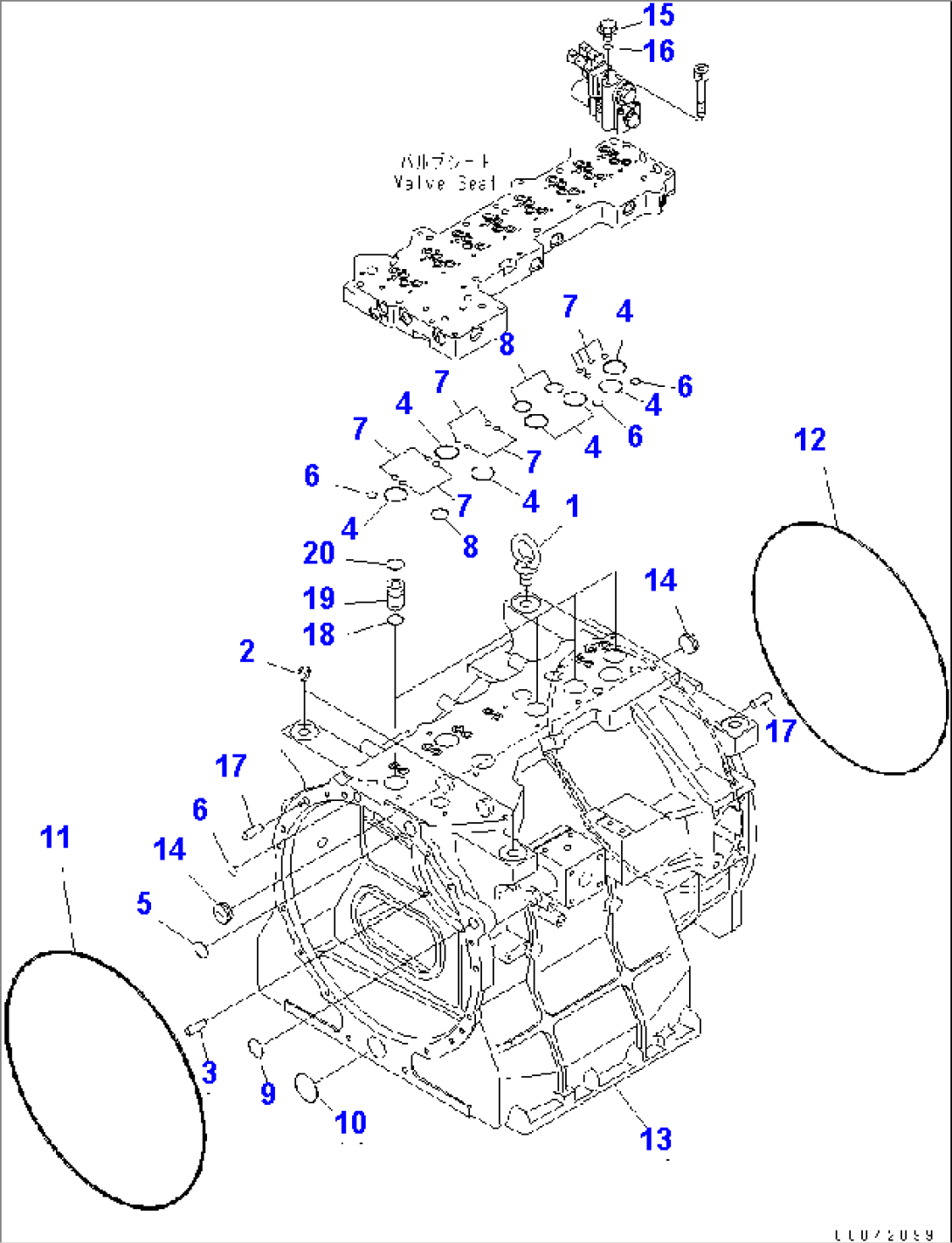

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||
| 1 | 04530-12438 | BOLT,EYE | 7001- | |
| 2 | 07049-02430 | PLUG | 7001- | |
| 3 | 04020-00820 | PIN | 7001- | |
| 4 | 07000-73045 | O-RING (K2) | 7001- | |
| 5 | 07000-73032 | O-RING (K2) | 7001- | |
| 6 | 07000-72020 | O-RING (K2) | 7001- | |
| 7 | 07000-72015 | O-RING (K2) | 7001- | |
| 8 | 07000-73035 | O-RING (K2) | 7001- | |
| 9 | 07000-73035 | O-RING (K2) | 7001- | |
| 10 | 07000-72055 | O-RING (K2) | 7001- | |
| 11 | 07000-75450 | O-RING (K2) | 7001- | |
| 12 | 07000-75465 | O-RING (K2) | 7001- | |
| 566-15-02112 | CASE ASS'Y | 7001- | ||
| 13 | \6\ | CASE | 7001- | |
| 14 | 569-15-31271 | PLUG | 7001- | |
| 15 | 708-8E-16150 | PLUG | 7001- | |
| 16 | 07002-61023 | O-RING (K2) | 7001- | |
| 17 | 04020-01434 | PIN,DOWEL | 7001- | |
| 18 | 07000-73022 | O-RING (K2) | 7001- | |
| 19 | 569-15-31310 | SLEEVE | 7001- | |
| 20 | 07000-73025 | O-RING (K2) | 7001- |
