| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00900) | TRANSMISSION ASS'Y | 1001- | ||

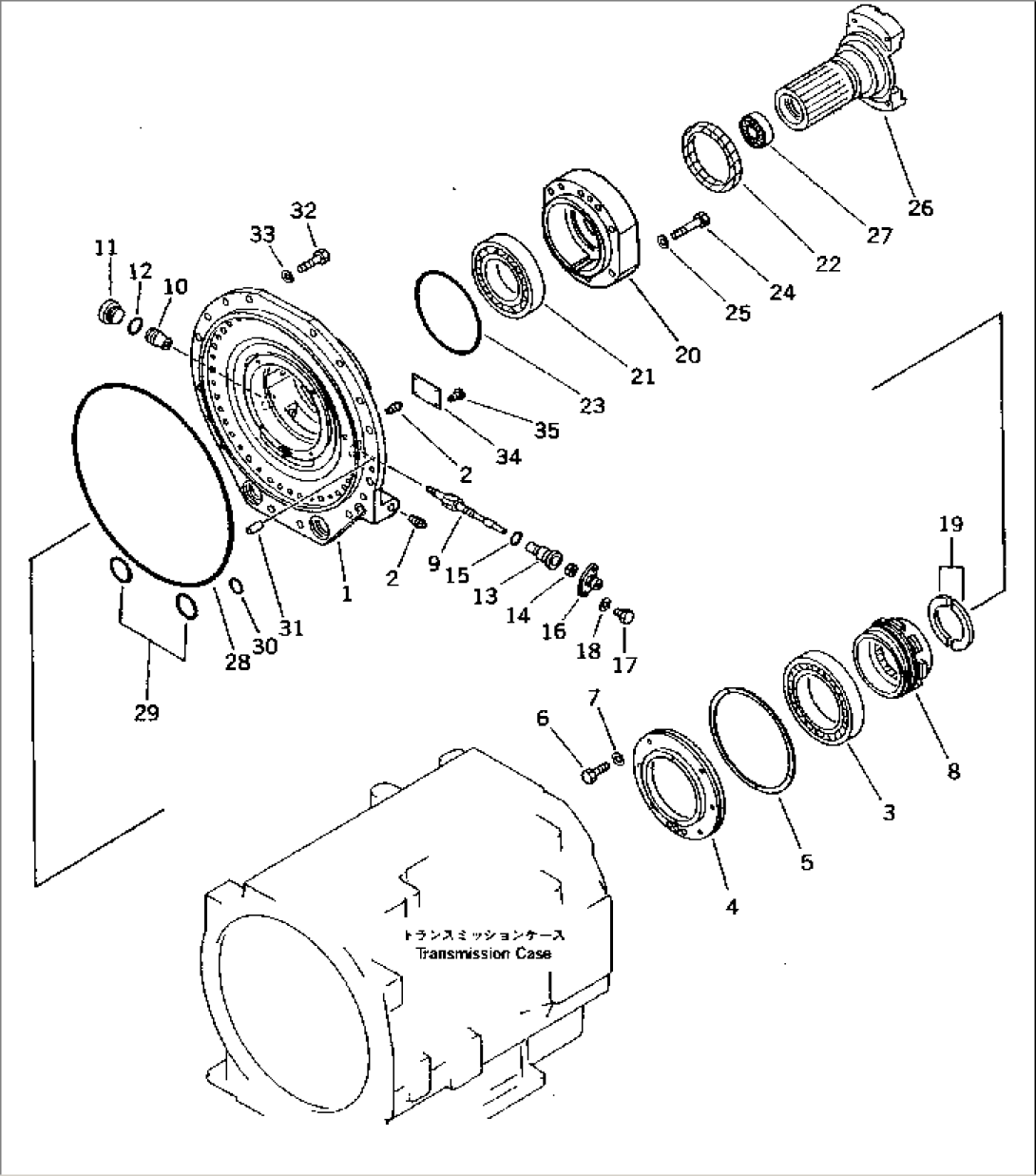

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 561-15-00822 | CASE ASS'Y | (1026)- | ||
| 561-15-00821 | CASE ASS'Y | 1001-(1025) | ||
| 1 | \6\ | CASE | (1026)- | |
| 1 | \6\ | CASE | 1001-(1025) | |
| 2 | 07043-71019 | PLUG | 1001- | |
| 3 | 566-15-69640 | BEARING | 1001- | |
| 4 | 561-15-52382 | COVER | 1001- | |
| 5 | 561-15-49280 | RING,SEAL | 1001- | |
| 6 | 01010-81035 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 561-15-53411 | GEAR,WORM | 1001- | |
| 9 | 569-15-33420 | SHAFT | 1001- | |
| 10 | 569-15-33370 | BUSHING | 1001- | |
| 11 | 07040-13618 | PLUG | 1001- | |
| 12 | 07002-03634 | O-RING (K2) | 1001- | |
| 13 | 566-15-11480 | BUSHING | 1001- | |
| 14 | 281-15-13820 | SEAL,OIL (K2) | 1001- | |
| 15 | 07000-73025 | O-RING (K2) | 1001- | |
| 16 | 566-15-11490 | COVER | 1001- | |
| 17 | 01010-80820 | BOLT | 1001- | |
| 18 | 01643-30823 | WASHER | 1001- | |
| 19 | 569-15-32180 | SPACER | 1001- | |
| 20 | 561-15-53121 | CAGE | 1001- | |
| 21 | 569-15-39650 | BEARING | 1001- | |
| 22 | 07012-10120 | SEAL,OIL (K2) | 1001- | |
| 23 | 07000-05200 | O-RING (K2) | 1001- | |
| 24 | 01010-61460 | BOLT | 1001- | |
| 25 | 01643-31445 | WASHER | 1001- | |
| 26 | 561-15-52130 | COUPLING | 1001- | |
| 27 | 569-15-39660 | BEARING | 1001- | |
| 28 | 195-15-39620 | O-RING (K2) | 1001- | |
| 29 | 07000-12055 | O-RING (K2) | 1001- | |
| 30 | 07000-73038 | O-RING (K2) | 1001- | |
| 31 | 04020-01842 | PIN,DOWEL | 1001- | |
| 32 | 01010-61650 | BOLT | 1001- | |
| 33 | 01643-31645 | WASHER | 1001- | |
| 34 | 09608-05080 | PLATE, NAME,(LIMITED SUPPLY) | 1001- | |
| 35 | 04418-13060 | SCREW | 1001- |
