| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (56B-13-20002) | TRANSMISSION ASS'Y | 2017- | ||
| (\0\56B-13-20001) | TRANSMISSION ASS'Y | (100120)-00002016 | ||
| (\0\56B-13-20000) | TRANSMISSION ASS'Y | 2001-(100119) | ||

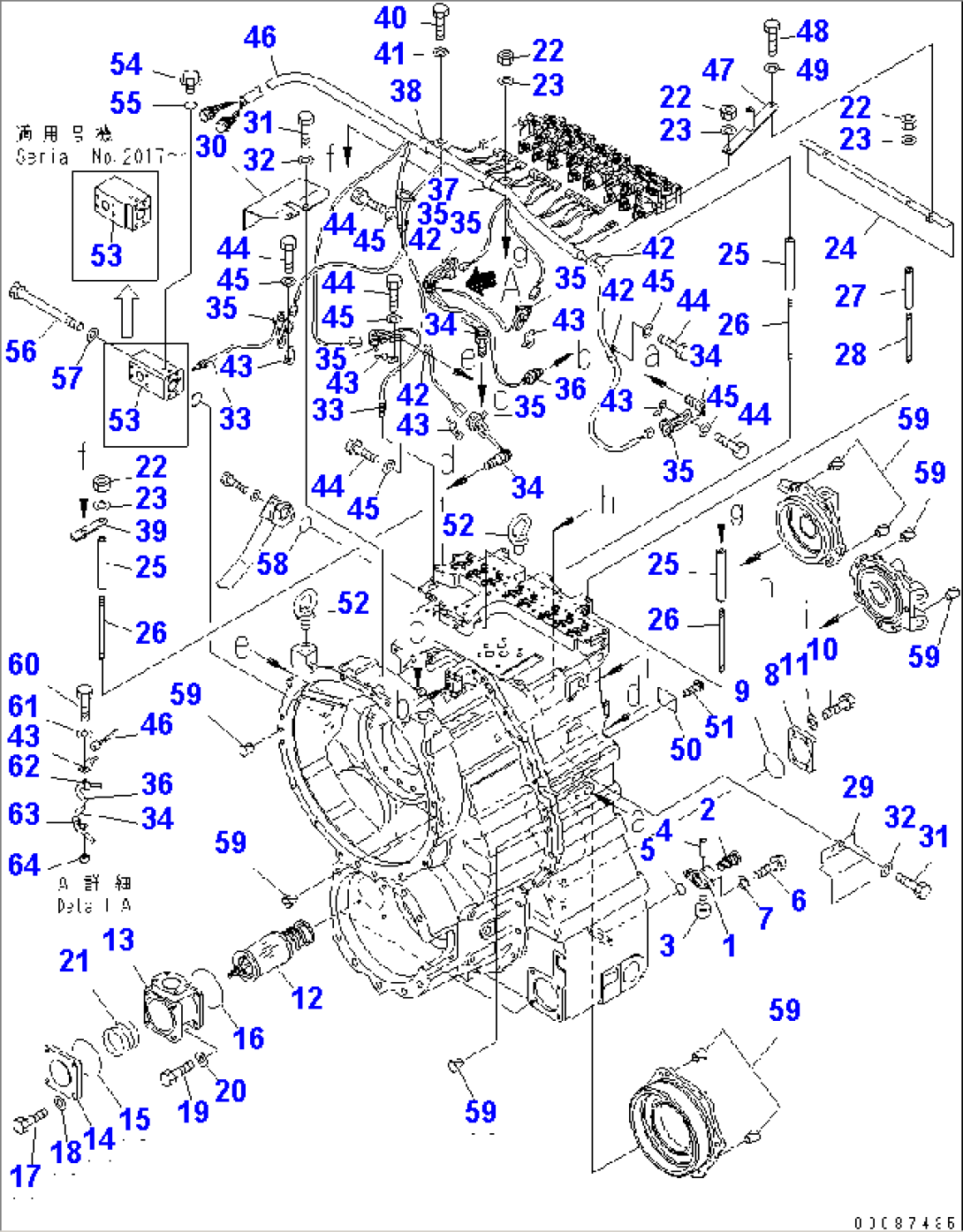

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3300-51A0 TO F3300-64A0. | ||||
| 6693-22-5600 | VALVE ASS'Y | 2001- | ||
| 1 | 6693-22-5610 | BODY | 2001- | |
| 2 | 6693-22-5620 | VALVE | 2001- | |
| 3 | 07040-02412 | PLUG | 2001- | |
| 4 | 04020-00514 | PIN | 2001- | |
| 5 | 07000-73028 | O-RING (K2) | 2001- | |
| 6 | 01010-81025 | BOLT | 2001- | |
| 7 | 01643-31032 | WASHER | 2001- | |
| 8 | 144-851-1530 | FLANGE | 2001- | |
| 9 | 07000-72075 | O-RING (K2) | 2001- | |
| 10 | 01010-81240 | BOLT | 2001- | |
| 11 | 01643-31232 | WASHER | 2001- | |
| 12 | 14X-49-12310 | MAGNET ASS'Y | 2001- | |
| 13 | 14X-49-12330 | HEAD | 2001- | |
| 14 | 14X-49-12340 | COVER | 2001- | |
| 15 | 07000-72100 | O-RING (K2) | 2001- | |
| 16 | 07000-72110 | O-RING (K2) | 2001- | |
| 17 | 01010-81235 | BOLT | 2001- | |
| 18 | 01643-31232 | WASHER | 2001- | |
| 19 | 01010-81235 | BOLT | 2001- | |
| 20 | 01643-31232 | WASHER | 2001- | |
| 21 | 14X-49-12320 | SPRING | 2001- | |
| 22 | 01580-11008 | NUT | 2001- | |
| 23 | 01643-31032 | WASHER | 2001- | |
| 24 | 56B-15-25860 | COVER | 2001- | |
| 25 | 56B-15-15910 | SPACER | 2001- | |
| 26 | 56B-15-25940 | STUD | 2001- | |
| 27 | 561-15-55910 | SPACER | 2001- | |
| 28 | 561-15-55940 | STUD | 2001- | |
| 29 | 56B-15-15870 | COVER | 2001- | |
| 30 | 56B-15-15880 | COVER | 2001- | |
| 31 | 01010-81020 | BOLT | 2001- | |
| 32 | 01643-31032 | WASHER | 2001- | |
| 33 | 7861-93-3320 | SENSOR,THERMO | 2001- | |
| 34 | 7861-93-2330 | SENSOR,PICK-UP | 2001- | |
| 35 | 08034-00414 | BAND | (101471)- | |
| 35 | 08034-00414 | BAND | 2001-(101470) | |
| 36 | 421-06-35121 | SENSOR,PRESSURE | 2001- | |
| 37 | 04434-51810 | CLIP | 2001- | |
| 38 | 04434-52511 | CLIP | 2001- | |
| 39 | 56B-15-28232 | PLATE | 2001- | |
| 40 | 01010-81020 | BOLT | 2001- | |
| 41 | 01643-31032 | WASHER | 2001- | |
| 42 | 08036-20814 | CLIP | 2001- | |
| 43 | 08193-21012 | CLIP | 2001- | |
| 44 | 01010-81020 | BOLT | (101471)- | |
| 44 | 01010-81020 | BOLT | 2001-(101470) | |
| 45 | 01643-31032 | WASHER | (101471)- | |
| 45 | 01643-31032 | WASHER | 2001-(101470) | |
| 46 | 56B-15-25811 | WIRING HARNESS | 2001- | |
| 47 | 56B-16-21310 | BRACKET | 2001- | |
| 48 | 01010-81020 | BOLT | 2001- | |
| 49 | 01643-31032 | WASHER | 2001- | |
| 50 | 09608-05080 | PLATE, NAME | 2001- | |
| 51 | 04418-13060 | SCREW | 2001- | |
| 52 | 04530-12438 | BOLT | 2001- | |
| 53 | 56B-15-28271 | BLOCK | 2017- | |
| 53 | 56B-15-28270 | BLOCK | 2001-2016 | |
| 54 | 708-8E-16150 | PLUG | 2001- | |
| 55 | 07002-61023 | O-RING (K2) | 2001- | |
| 56 | 01011-81050 | BOLT | 2001- | |
| 57 | 01643-31032 | WASHER | 2001- | |
| 58 | 07000-73038 | O-RING (K2) | 2001- | |
| 59 | 07049-01215 | PLUG | (100447)- | |
| 60 | 01010-81035 | BOLT | (101471)- | |
| 61 | 01643-31032 | WASHER | (101471)- | |
| 62 | 600-051-2100 | CLIP | (101471)- | |
| 63 | 600-051-2060 | CLIP | (101471)- | |
| 64 | 195-01-14540 | COLLAR | (101471)- |
