| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES POWER LINE SERIAL NO. | ||||
| 198-15-41002 | TRANSMISSION ASS'Y | (100748)- | ||
| \0\198-15-41001 | TRANSMISSION ASS'Y | 30001-(100747) | ||

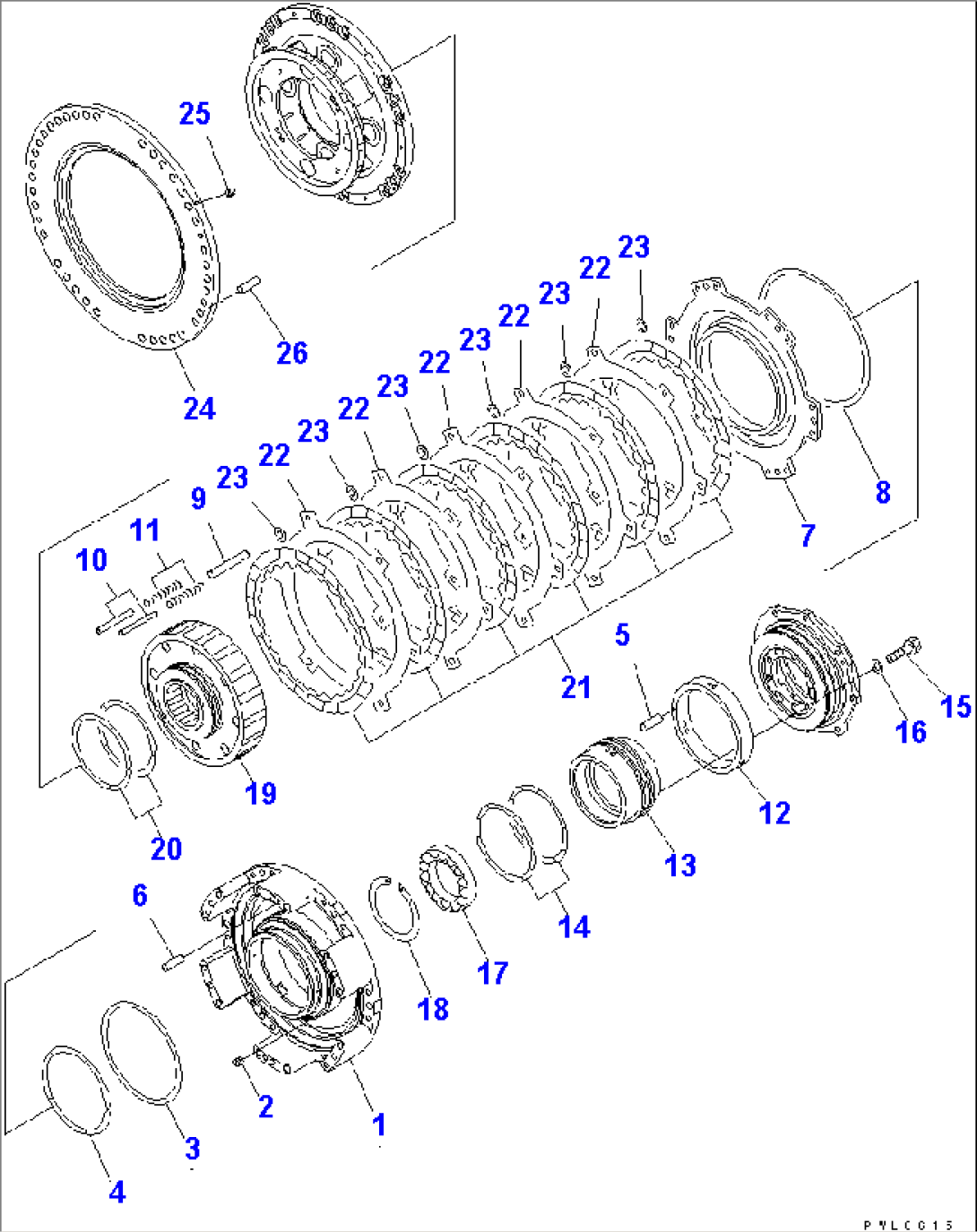

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-60A0. | ||||
| 1 | 198-15-32840 | HOUSING,1ST | 30001- | |
| 2 | 566-15-41321 | ORIFICE | (100295)- | |
| 2 | 566-15-41320 | PLUG | 30001-(100294) | |
| 3 | 566-15-49210 | RING,SEAL (K2) | 30001- | |
| 4 | 198-15-29280 | RING,SEAL | 30001- | |
| 5 | 04020-00616 | PIN,DOWEL | 30001- | |
| 6 | 04020-01228 | PIN,DOWEL | 30001- | |
| 7 | 198-15-22730 | PISTON,1ST | 30001- | |
| 8 | 198-15-29230 | RING,SEAL (K2) | 30001- | |
| 9 | 198-15-21270 | PIN | 30001- | |
| 10 | 198-15-21280 | PIN | 30001- | |
| 11 | 198-15-22961 | SPRING | 30001- | |
| 12 | 198-15-22830 | COLLAR | 30001- | |
| 13 | 198-15-42820 | CAGE | 30001- | |
| 14 | 195-15-39260 | RING,SEAL | 30001- | |
| 15 | 01010-81230 | BOLT | 30001- | |
| 16 | 01643-31232 | WASHER | 30001- | |
| 17 | 175-13-21160 | BEARING | 30001- | |
| 18 | 04077-00160 | RING | 30001- | |
| 19 | 198-15-22270 | HUB | 30001- | |
| 20 | 113-15-12260 | RING,SEAL | 30001- | |
| 21 | 198-15-22810 | DISC | 30001- | |
| 22 | 198-15-22890 | PLATE | 30001- | |
| 23 | 195-15-12880 | SPRING | 30001- | |
| 198-15-01130 | HOUSING ASS'Y | 30001- | ||
| 24 | \6\ | HOUSING | 30001- | |
| 25 | 145-14-11320 | PLUG | 30001- | |
| 26 | 234-71-11310 | PIN | 30001- |
