| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-11004) | TRANSMISSION ASS'Y | 50029- | ||
| (427-15-11003) | TRANSMISSION ASS'Y | 50002-50028 | ||
| (427-15-00013) | TRANSMISSION ASS'Y | 50001-50001 | ||

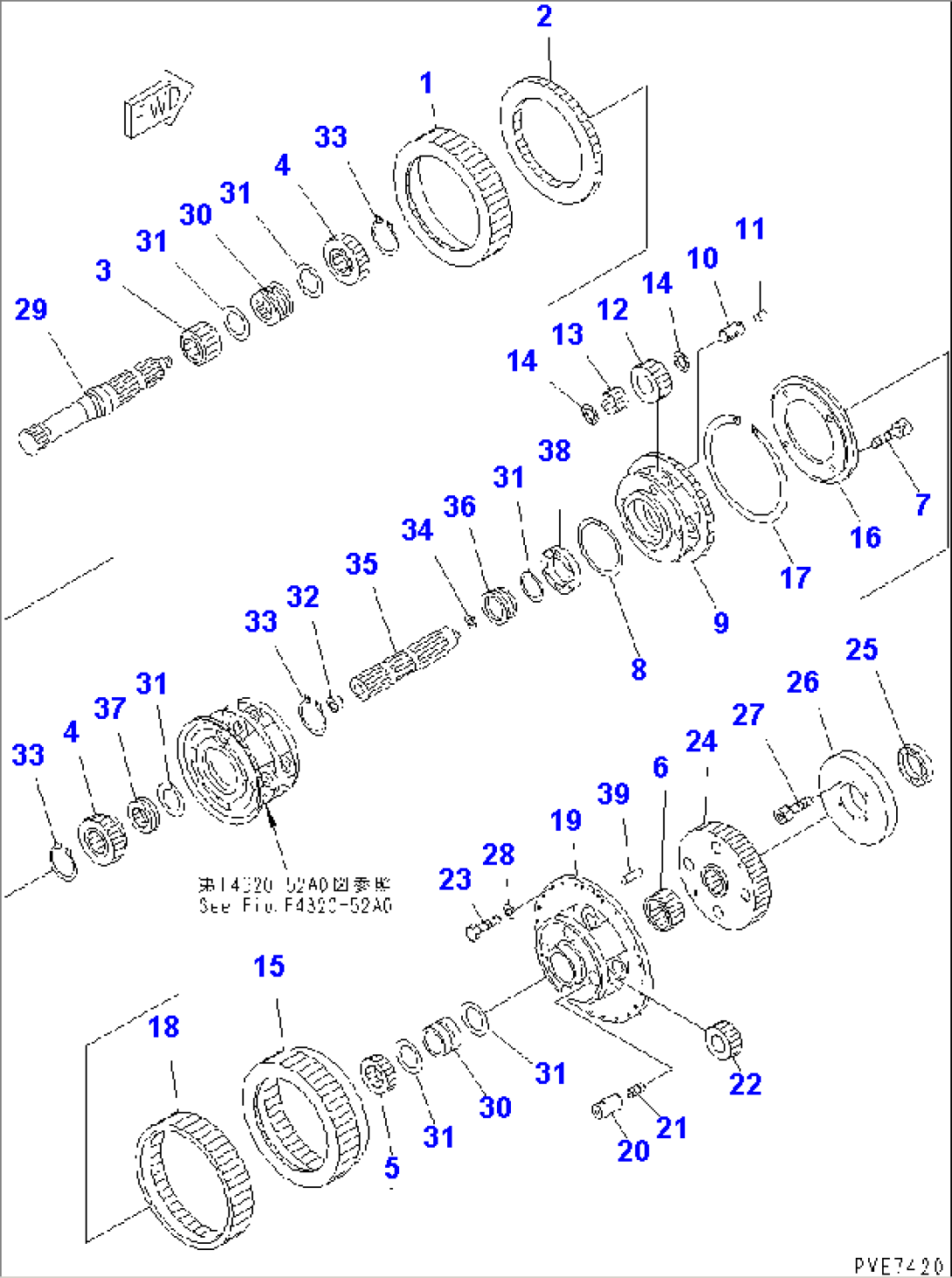

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | ||||
| 1 | 427-15-12640 | GEAR,RING | 50001- | |
| 2 | 427-15-12630 | GEAR,RING | 50001- | |
| 3 | 427-15-12210 | GEAR | 50001- | |
| 4 | 427-15-12220 | GEAR | 50001- | |
| 5 | 427-15-12230 | GEAR | 50001- | |
| 6 | 427-15-12240 | GEAR | 50001- | |
| 7 | 01252-31035 | BOLT | 50001- | |
| 8 | 195-15-49240 | RING,SEAL | 50001- | |
| 9 | 427-15-12332 | CARRIER | (1038)- | |
| 427-15-12330 | CARRIER | 50001-(1037) | ||
| 427-15-00140 | SHAFT ASS'Y | 50001- | ||
| 10 | \6\ | SHAFT | 50001- | |
| 11 | 568-15-11380 | PLUG | 50001- | |
| 12 | 427-15-12430 | GEAR | 50001- | |
| 13 | 427-15-19260 | BEARING | 50001- | |
| 14 | 561-15-32570 | WASHER,THRUST | 50001- | |
| 15 | 427-15-12610 | GEAR,RING | 50001- | |
| 16 | 427-15-12380 | COVER | 50001- | |
| 17 | 427-15-19530 | RING,SNAP | 50001- | |
| 18 | 427-15-12620 | GEAR,GEAR | 50001- | |
| 19 | 427-15-12341 | CARRIER | 50029- | |
| 427-15-12340 | CARRIER | 50001-50028 | ||
| 427-15-00150 | SHAFT ASS'Y | 50001- | ||
| 20 | \6\ | SHAFT | 50001- | |
| 21 | 568-15-11380 | PLUG | 50001- | |
| 22 | 427-15-12440 | GEAR | 50001- | |
| 23 | 01010-61435 | BOLT | 50001- | |
| 24 | 427-15-12270 | HUB | 50001- | |
| 25 | 06030-06214 | BEARING | 50029- | |
| 06000-06214 | BEARING | 50001-50028 | ||
| 26 | 427-15-12790 | COVER | 50001- | |
| 27 | 01252-31035 | BOLT | 50001- | |
| 28 | 01643-31445 | WASHER | 50001- | |
| 29 | 427-15-12141 | SHAFT | 50001- | |
| 30 | 427-15-12150 | COLLAR | 50001- | |
| 31 | 07018-11004 | RING,SEAL | 50001- | |
| 32 | 427-15-19420 | BUSHING | 50001- | |
| 33 | 04064-08025 | RING | 50001- | |
| 34 | 07018-10352 | RING | 50001- | |
| 35 | 427-15-12120 | SHAFT | 50001- | |
| 36 | 427-15-12170 | COLLAR | 50001- | |
| 37 | 427-15-12160 | COLLAR | 50001- | |
| 38 | 06030-06020 | BEARING | 50029- | |
| 06000-06020 | BEARING | 50001-50028 | ||
| 39 | 04020-01434 | PIN | 50001- |
