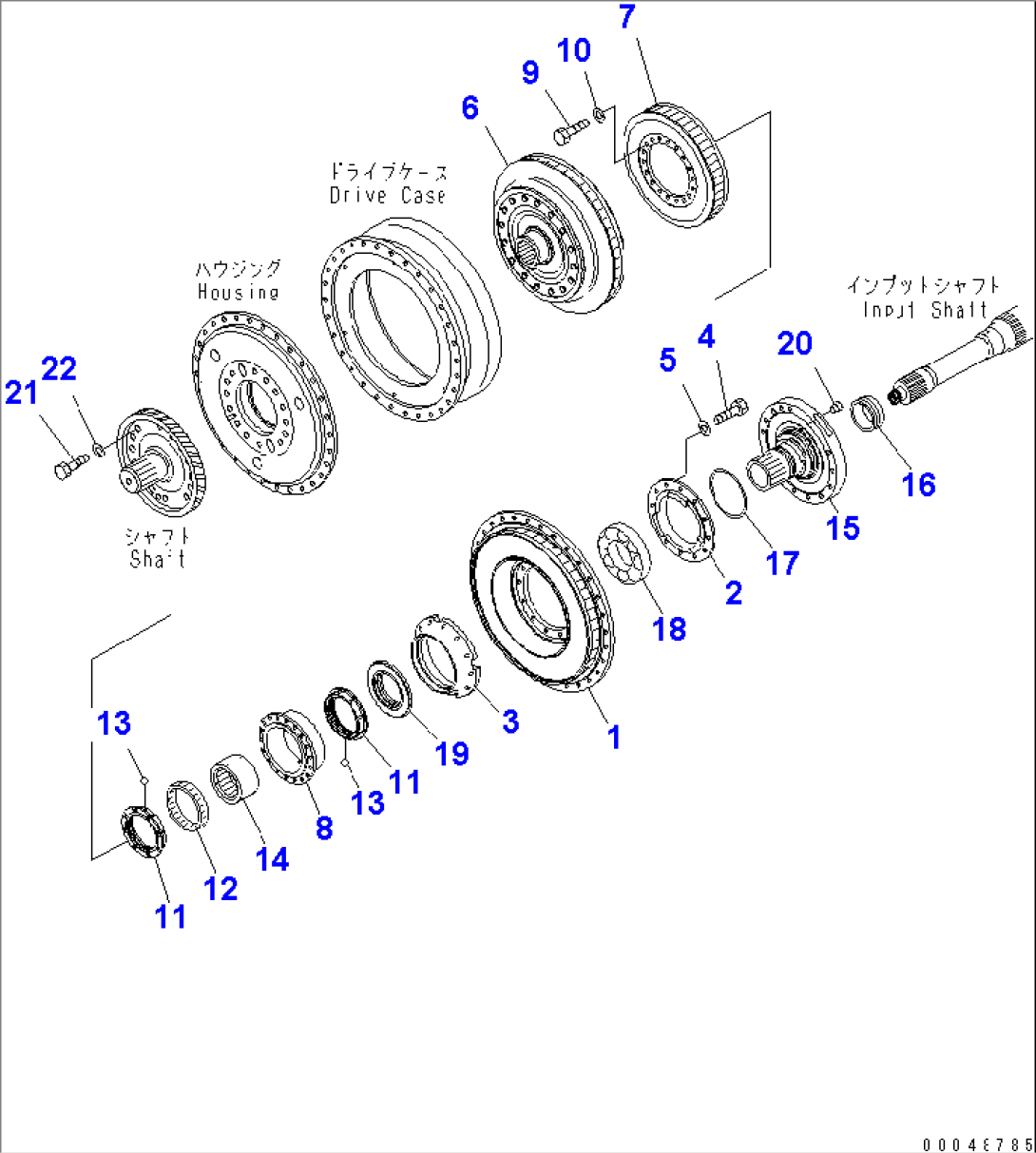

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (56B-13-20002) | TRANSMISSION ASS'Y | 2017- | ||
| (\0\56B-13-20001) | TRANSMISSION ASS'Y | (100120)-00002016 | ||
| (\0\56B-13-20000) | TRANSMISSION ASS'Y | 2001-(100119) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3300-51A0 TO F3300-64A0. | ||||
| 1 | 711-20-31120 | PUMP | 2001- | |
| 2 | 711-20-31140 | RETAINER | 2001- | |
| 3 | 569-13-51190 | GUIDE | 2001- | |
| 4 | 01010-81040 | BOLT | 2001- | |
| 5 | 01643-31032 | WASHER | 2001- | |
| 6 | 711-40-21511 | TURBINE ASS'Y | 2001- | |
| 6 | 711-40-21520 | TURBINE | 2001- | |
| 6 | 711-40-21531 | BOSS | 2001- | |
| 6 | 711-70-11540 | PLATE | 2001- | |
| 6 | 711-70-11550 | RIVET | 2001- | |
| 7 | 711-20-32110 | STATOR | 2001- | |
| 8 | 711-20-32120 | RACE | 2001- | |
| 9 | 01010-81025 | BOLT | 2001- | |
| 10 | 01643-31032 | WASHER | 2001- | |
| 11 | 711-20-12141 | BUSHING | 2001- | |
| 12 | 711-20-12160 | WHEEL | 2001- | |
| 13 | 04260-00635 | BALL | 2001- | |
| 14 | 711-20-32130 | RACE | 2001- | |
| 15 | 56B-13-12521 | SHAFT,STATOR | 2001- | |
| 16 | 56B-13-12530 | SLEEVE | 2001- | |
| 17 | 14X-15-19220 | SEAL RING | 2001- | |
| 18 | 568-13-13351 | BEARING | 2001- | |
| 19 | 711-40-12680 | NUT | 2001- | |
| 20 | 07043-00108 | PLUG | 2001- | |
| 21 | 01010-61645 | BOLT | 2001- | |
| 22 | 01643-31645 | WASHER | 2001- |
