| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 14X-15-31002 | TRANSMISSION ASS'Y | 67843- | ||
| 14X-15-31001 | TRANSMISSION ASS'Y | 67137-67842 | ||
| 14X-15-31000 | TRANSMISSION ASS'Y | 67001-67136 | ||

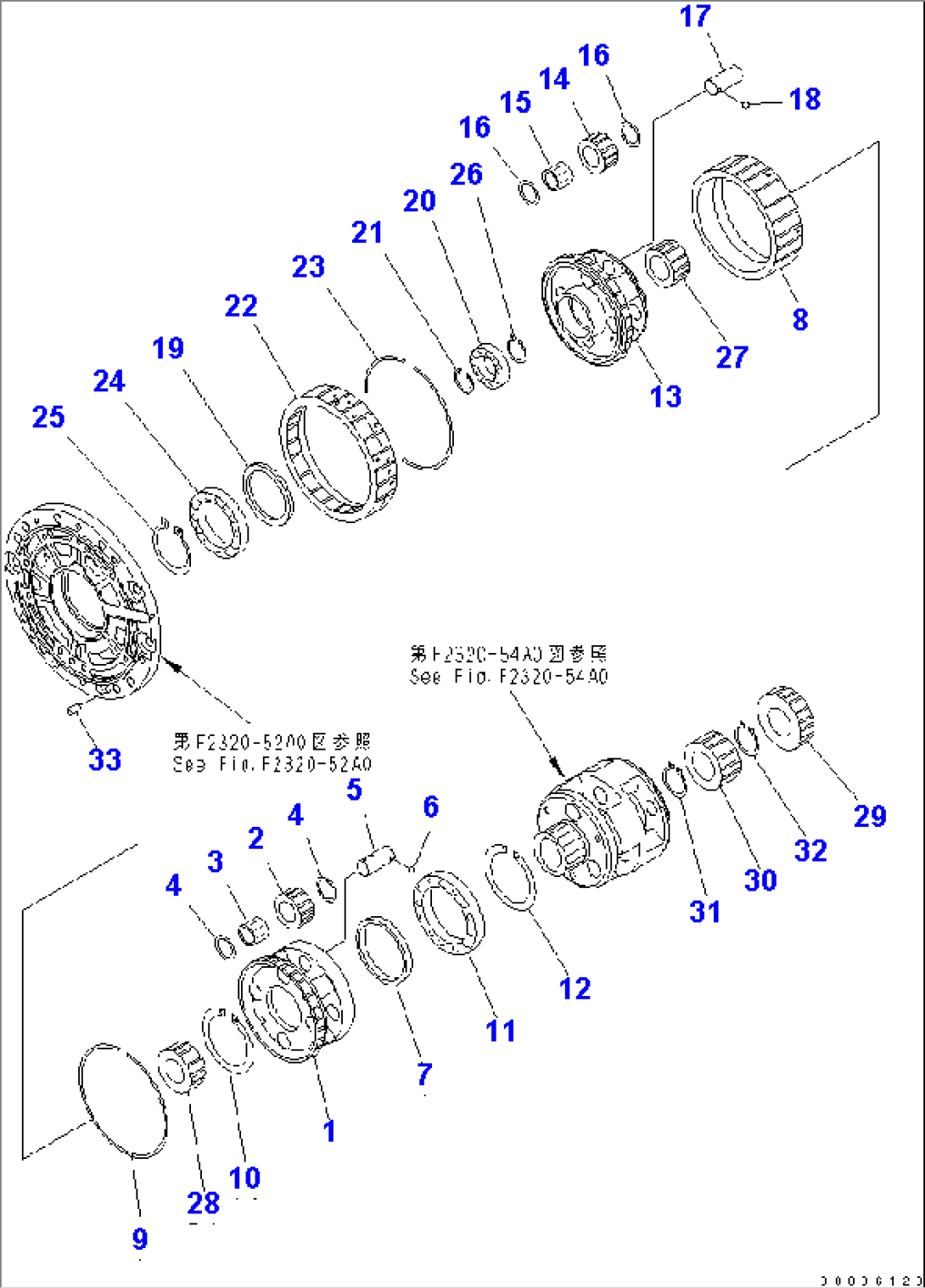

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| 1 | 14X-15-22340 | CARRIER | 67001- | |
| 2 | 14X-15-22420 | GEAR | 67001- | |
| 3 | 14X-15-29440 | BEARING | 67001- | |
| 4 | 09233-12920 | WASHER | 67001- | |
| 5 | 14X-15-22540 | SHAFT | 67001- | |
| 6 | 04260-00635 | BALL | 67001- | |
| 7 | 14X-15-22150 | SPACER | 67001- | |
| 8 | 14X-15-22620 | RING GEAR | 67001- | |
| 9 | 14X-15-29530 | SNAP RING | 67001- | |
| 10 | 14X-15-29510 | SNAP RING | 67001- | |
| 11 | 06000-06921 | BEARING | 67001- | |
| 12 | 04070-00105 | RING | 67001- | |
| 13 | 14X-15-22310 | CARRIER | 67001- | |
| 14 | 14X-15-22410 | GEAR | 67001- | |
| 15 | 14X-15-29440 | BEARING | 67001- | |
| 16 | 09233-12920 | WASHER | 67001- | |
| 17 | 14X-15-22540 | SHAFT | 67001- | |
| 18 | 04260-00635 | BALL | 67001- | |
| 19 | 14X-15-22190 | SPACER | 67001- | |
| 20 | 14X-15-29610 | BEARING | 67001- | |
| 21 | 04065-07525 | RING | 67001- | |
| 22 | 14X-15-22610 | RING GEAR | 67001- | |
| 23 | 14X-15-29520 | SNAP RING | 67001- | |
| 24 | 06030-06918 | BEARING | 67001- | |
| 25 | 04064-09030 | RING | 67001- | |
| 26 | 04064-04518 | RING | 67001- | |
| 27 | 14X-15-22211 | GEAR | (101375)- | |
| 27 | 14X-15-22210 | GEAR | 67001-(101374) | |
| 28 | 14X-15-22221 | GEAR | (101375)- | |
| 28 | 14X-15-22220 | GEAR | 67001-(101374) | |
| 29 | 14X-15-22250 | GEAR | 67001- | |
| 30 | 14X-15-22241 | GEAR | (101375)- | |
| 30 | 14X-15-22240 | GEAR | 67001-(101374) | |
| 31 | 04064-04819 | RING | 67001- | |
| 32 | 14X-15-29540 | RING | 67001- | |
| 33 | 04020-01228 | PIN | 67001- |
