| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-00012) | TRANSMISSION ASS'Y | 3034-4000 | ||

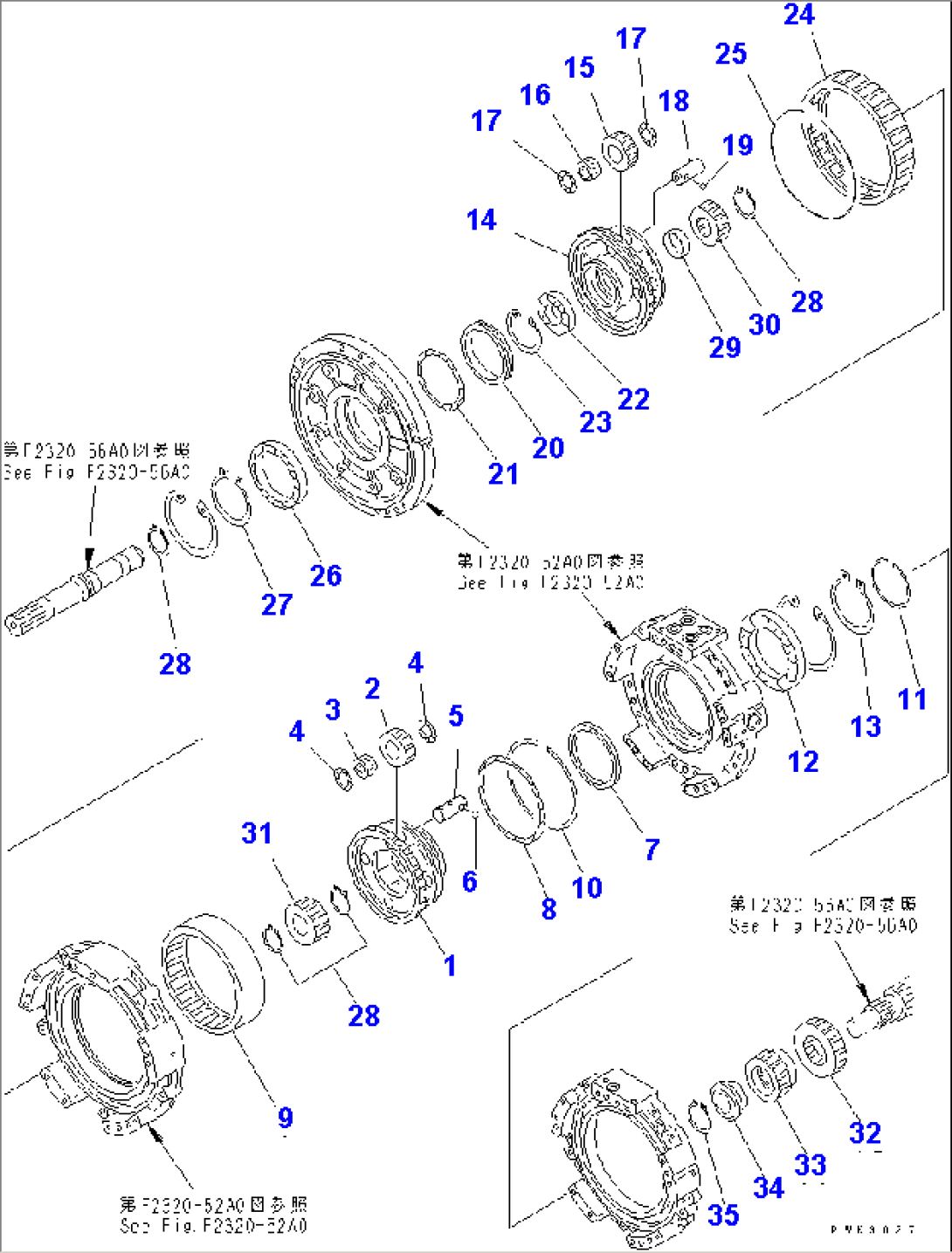

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| 1 | 14X-15-12340 | CARRIER | 3034-4000 | |
| 2 | 421-15-12420 | GEAR | 3034-4000 | |
| 3 | 14X-15-19440 | BEARING | 3034-4000 | |
| 4 | 09233-12920 | WASHER | 3034-4000 | |
| 5 | 14X-15-12540 | SHAFT | 3034-4000 | |
| 6 | 04260-00635 | BALL | 3034-4000 | |
| 7 | 421-15-12150 | SPACER | 3034-4000 | |
| 8 | 14X-15-19210 | SEAL RING | 3369-4000 | |
| 07018-12105 | RING | 3034-3368 | ||
| 9 | 14X-15-12621 | GEAR | 3034-4000 | |
| 10 | 14X-15-19530 | RING | 3034-4000 | |
| 11 | 14X-15-19510 | RING | 3034-4000 | |
| 12 | 06000-06926 | BEARING | 3034-4000 | |
| 13 | 04070-00130 | RING | 3034-4000 | |
| 14 | 14X-15-12310 | CARRIER | 3034-4000 | |
| 15 | 14X-15-12410 | GEAR | 3034-4000 | |
| 16 | 14X-15-19440 | BEARING | 3034-4000 | |
| 17 | 09233-12920 | WASHER | 3034-4000 | |
| 18 | 14X-15-12540 | SHAFT | 3034-4000 | |
| 19 | 04260-00635 | BALL | 3034-4000 | |
| 20 | 14X-15-12190 | SPACER | 3034-4000 | |
| 21 | 14X-15-19220 | SEAL RING | 3369-4000 | |
| 07018-11355 | RING | 3034-3368 | ||
| 22 | 06030-06210 | BEARING | 3034-4000 | |
| 23 | 04077-00090 | RING | 3034-4000 | |
| 24 | 14X-15-12611 | GEAR | 3034-4000 | |
| 25 | 14X-15-19520 | RING | 3034-4000 | |
| 26 | 06030-06922 | BEARING | 3034-4000 | |
| 27 | 04070-00110 | RING | 3034-4000 | |
| 28 | 04064-05020 | RING | 3034-4000 | |
| 29 | 14X-15-12140 | SPACER | 3034-4000 | |
| 30 | 14X-15-12210 | GEAR | 3034-4000 | |
| 31 | 14X-15-12220 | GEAR | 3034-4000 | |
| 32 | 14X-15-12250 | GEAR | 3034-4000 | |
| 33 | 14X-15-12240 | GEAR | 3034-4000 | |
| 34 | 14X-15-12160 | SPACER | 3034-4000 | |
| 35 | 04064-05520 | RING | 3034-4000 |
