| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (17M-15-51031) | TRANSMISSION ASS'Y,-50ßC | 25178- | ||
| (17M-15-51030) | TRANSMISSION ASS'Y,-50ßC | 25001-25177 | ||

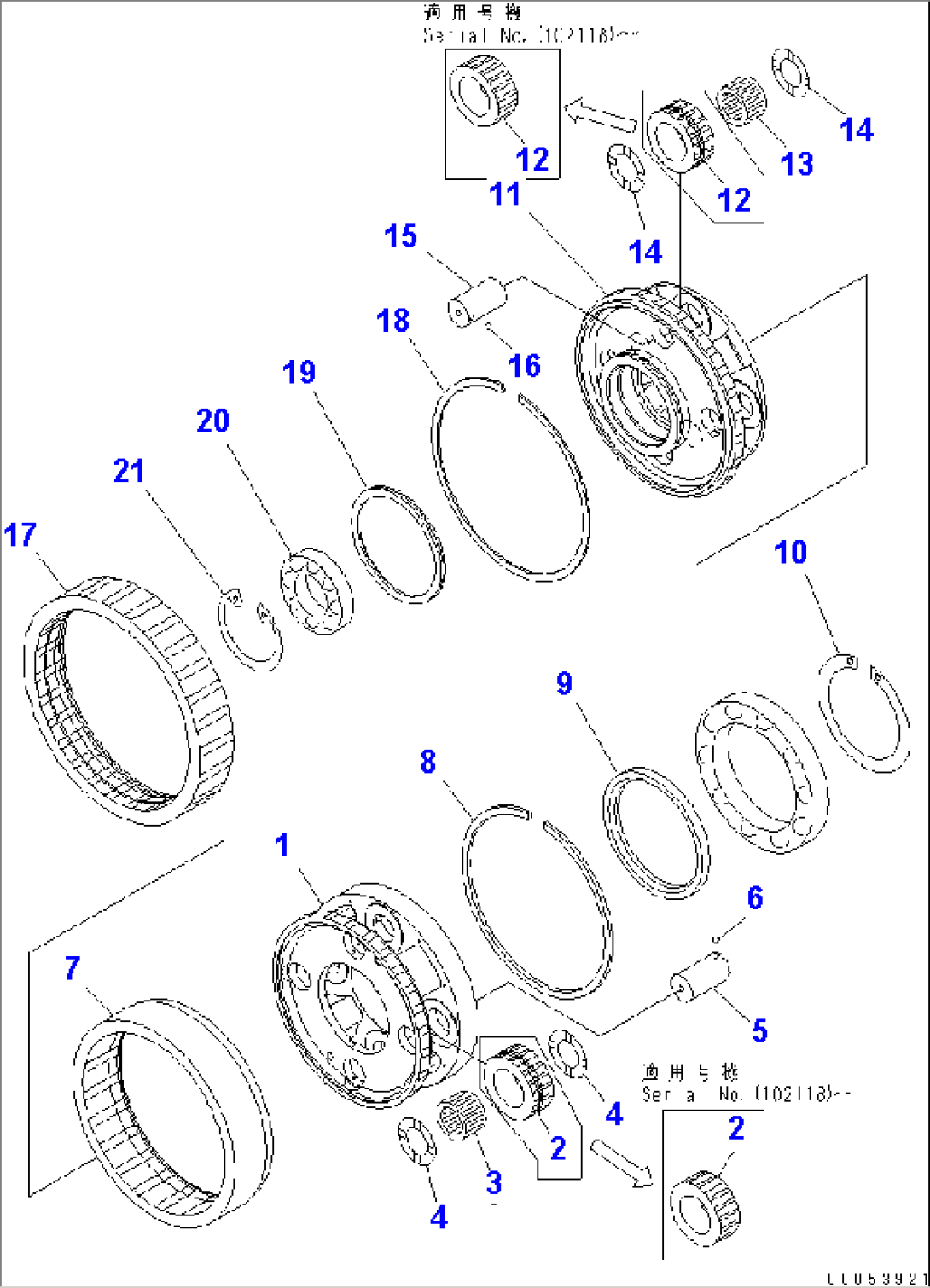

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-63A1. | ||||
| 1 | 17M-15-42320 | CARRIER | 25001- | |
| 2 | 17M-15-42421 | GEAR | (102118)- | |
| 2 | \0\17M-15-42420 | GEAR | 25001-(102117) | |
| 3 | 17M-15-39440 | BEARING | 25001- | |
| 4 | 561-15-32590 | WASHER,THRUST | 25001- | |
| 5 | 17M-15-42541 | SHAFT | (103202)- | |
| 5 | 17M-15-42540 | SHAFT | 25001-(103201) | |
| 6 | 04260-00635 | BALL | 25001- | |
| 7 | 17A-15-22620 | GEAR,RING | 25001- | |
| 8 | 17A-15-49520 | RING, SNAP | (102448)- | |
| 8 | 17A-15-29520 | RING | 25001-(102447) | |
| 9 | 17A-15-22160 | SPACER | 25001- | |
| 10 | 04070-00150 | RING,SNAP | 25001- | |
| 11 | 17M-15-42311 | CARRIER | 25178- | |
| 11 | 17M-15-42310 | CARRIER | 25001-25177 | |
| 12 | 17M-15-42411 | GEAR | (102118)- | |
| 12 | \0\17M-15-42410 | GEAR | 25001-(102117) | |
| 13 | 17M-15-39440 | BEARING | 25001- | |
| 14 | 561-15-32590 | WASHER,THRUST | 25001- | |
| 15 | 17M-15-42541 | SHAFT | (103202)- | |
| 15 | 17M-15-42540 | SHAFT | 25001-(103201) | |
| 16 | 04260-00635 | BALL | 25001- | |
| 17 | 17A-15-22610 | GEAR | 25001- | |
| 18 | 17A-15-29510 | RING,SNAP | 25001- | |
| 19 | 17A-15-22151 | SPACER | 25001- | |
| 20 | 714-12-19380 | BEARING | 25178- | |
| 20 | 06000-06212 | BEARING | 25001-25177 | |
| 21 | 04065-01104 | RING,SNAP | 25001- |
