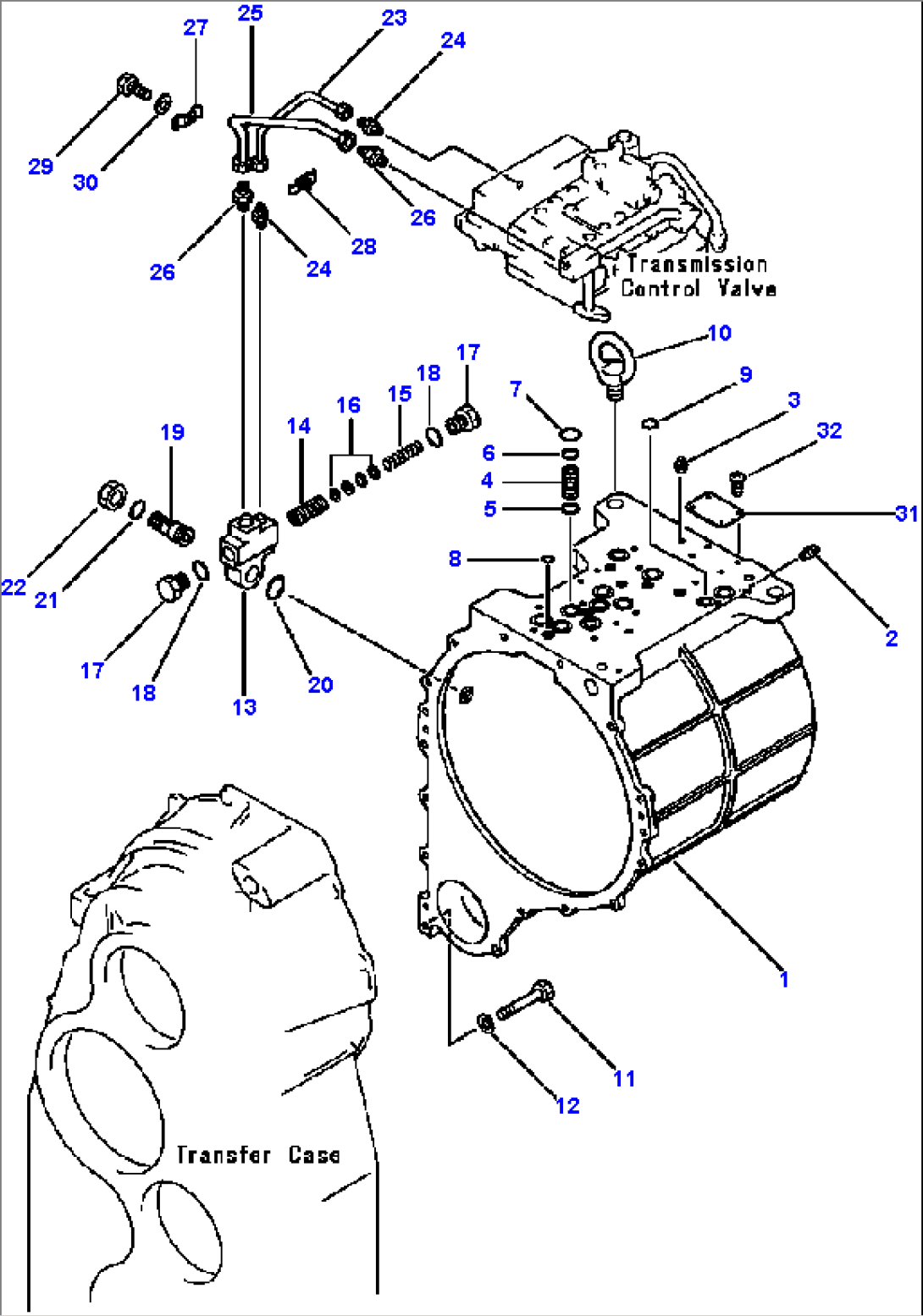

| Item | Part No. | Part Name | Qty | Serial No. |
| 426-15-00011 | TRANSMISSION ASSEMBLY | |||
| 426-15-00100 | CASE ASSEMBLY, TRANSMISSION | |||
| 1 | (NSS) | CASE | ||
| 2 | 07042-00312 | PLUG | ||
| 3 | 07042-00211 | PLUG | ||
| 4 | 425-15-11310 | SLEEVE | ||
| 5 | 07000-72021 | O-RING, SLEEVE | ||
| 6 | 170-09-17130 | O-RING, SLEEVE | ||
| 7 | 07000-73030 | O-RING, VALVE SEAT | ||
| 8 | 07000-72018 | O-RING, VALVE SEAT | ||
| 9 | 07000-72021 | O-RING, VALVE SEAT | ||
| 10 | 04530-12438 | BOLT, EYE | ||
| 11 | 01010-51260 | BOLT | ||
| 12 | 01643-31232 | WASHER | ||
| 13 | 425-15-14110 | BODY, VALVE | ||
| 14 | 425-15-14330 | VALVE | ||
| 15 | 145-14-12790 | SPRING | ||
| 16 | 425-15-14240 | SHIM, 0.5mm | ||
| 17 | 425-15-14220 | PLUG | ||
| 18 | 07002-03034 | O-RING, PLUG | ||
| 19 | 425-15-14213 | BOLT | ||
| 20 | 07002-03634 | O-RING, VALVE BODY | ||
| 21 | 07000-73025 | O-RING, VALVE BODY | ||
| 22 | 01583-13018 | NUT | ||
| 23 | 426-15-14320 | TUBE | ||
| 24 | 07238-00210 | NIPPLE | ||
| 25 | 426-15-14310 | TUBE | ||
| 26 | 07213-51826 | CONNECTOR | ||
| 27 | 425-15-14250 | CLAMP | ||
| 28 | 425-15-14260 | CLAMP | ||
| 29 | 01010-50616 | BOLT | ||
| 30 | 01602-20619 | WASHER, LOCK | ||
| 31 | 09608-05080 | PLATE, NAME (LIMITED SUPPLY) | ||
| 32 | 04418-03060 | SCREW | ||
| N/I | SERVICE KIT, TRANSMISSION (SEE PG 02-060) | |||
| F1 - INCLUDED IN SERVICE KIT 426-15-05200. | ||||
