| Item | Part No. | Part Name | Qty | Serial No. |
| (415-15-11002) | TRANSMISSION ASS'Y | 12001- | ||

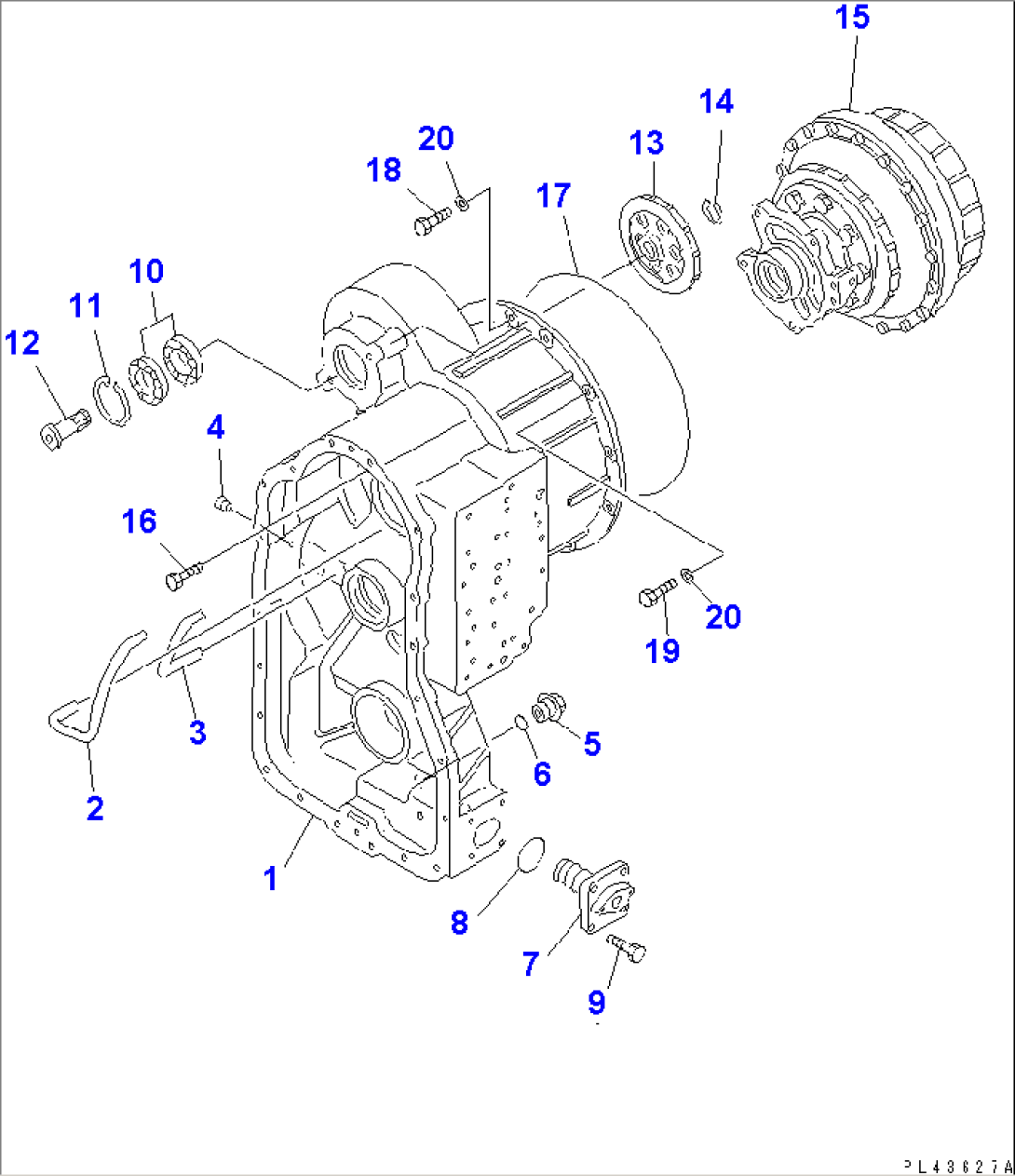

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142A. | ||||
| 415-15-18303 | CASE ASS'Y,TORQUE CONVERTER | 12001- | ||
| 1 | \6\ | CASE,REAR | 12001- | |
| 2 | \6\ | TUBE | 10001- | |
| 3 | \6\ | TUBE | 10001- | |
| 4 | 07043-00211 | PLUG | 12001- | |
| 5 | 176-76-67150 | PLUG | 12001- | |
| 6 | 07002-02434 | O-RING (K1) | 10001- | |
| 7 | 415-15-14710 | STRAINER ASS'Y | 12001- | |
| 7 | 415-15-14720 | MAGNET | 12001- | |
| 7 | 415-15-14730 | SPRING,SUPPORT | 12001- | |
| 8 | 07000-02075 | O-RING (K1) | 10001- | |
| 9 | 01010-31030 | BOLT | 12001- | |
| 10 | 06030-06208 | BEARING | 10001- | |
| 11 | 04065-08025 | RING,SNAP | 10001- | |
| 12 | 415-15-14110 | SHAFT,PUMP | 10001- | |
| 13 | 415-15-14150 | GEAR, 57 TEETH | 10001- | |
| 14 | 04064-03515 | RING,SNAP | 10001- | |
| 15 | (711-64-11000) | TORQUE CONVERTER A. | 10001- | |
| 16 | 01010-61255 | BOLT | 10001- | |
| 17 | 415-15-18911 | O-RING (K1) | 10216- | |
| 18 | 01010-31030 | BOLT | 12001- | |
| 19 | 01010-31040 | BOLT | 12001- | |
| 20 | 01643-31032 | WASHER | 10001- |
