| Item | Part No. | Part Name | Qty | Serial No. |
| 154-15-01012 | TRANSMISSION ASS'Y | (1237)- | ||
| 154-15-01011 | TRANSMISSION ASS'Y | 35127-(1236) | ||
| 154-15-01010 | TRANSMISSION ASS'Y | 35001-35126 | ||

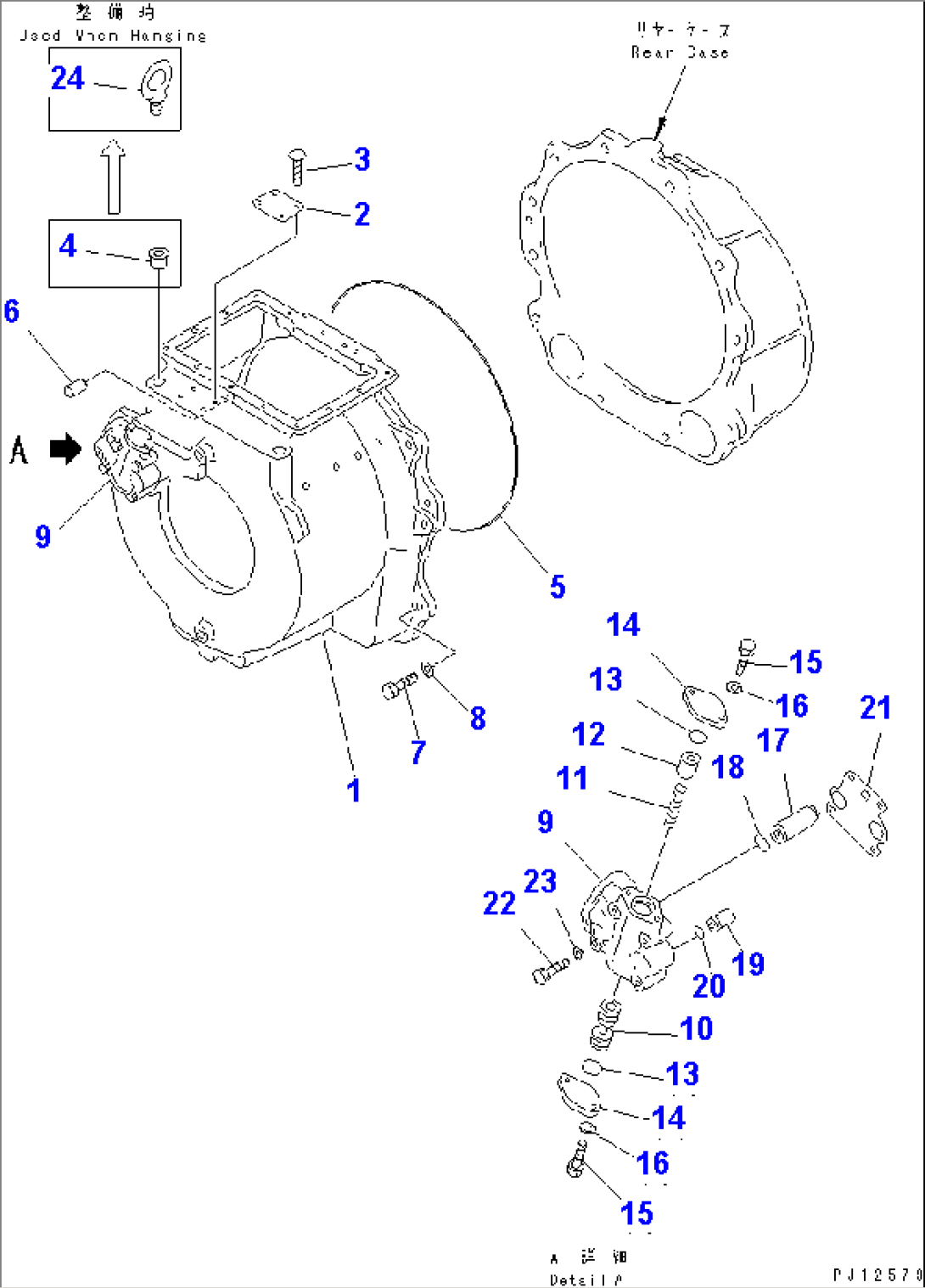

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2513. | ||||
| 154-15-01110 | TRANSMISSION ASS'Y | 35001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2505. | ||||
| 1 | 154-15-41110 | CASE | 35001- | |
| 2 | 09608-05080 | PLATE, NAME | 35001- | |
| 3 | 04418-13060 | SCREW | 35001- | |
| 4 | 07048-02216 | PLUG | 35001- | |
| 5 | 195-21-11350 | O-RING (KIT) | 35001- | |
| 6 | 04020-01638 | PIN,DOWEL | 35001- | |
| 7 | 01010-61645 | BOLT | 35001- | |
| 8 | 01643-31645 | WASHER | 35001- | |
| 154-15-01151 | VALVE ASS'Y,LUBRICATION | 35127- | ||
| 154-15-01150 | VALVE ASS'Y,LUBRICATION | 35001-35126 | ||
| 9 | 154-15-24110 | BODY | 35001- | |
| 10 | 175-15-14130 | SPOOL | 35001- | |
| 11 | 175-15-14120 | SPRING | 35127- | |
| 11 | 195-15-34160 | SPRING | 35001-35126 | |
| 12 | 175-15-14141 | GUIDE | 35127- | |
| 12 | 154-15-44140 | GUIDE | 35001-35126 | |
| 13 | 07000-73032 | O-RING (KIT) | 35001- | |
| 14 | 175-15-14150 | COVER | 35001- | |
| 15 | 01010-50825 | BOLT | 35001- | |
| 16 | 01643-30823 | WASHER | 35001- | |
| 17 | 154-15-44172 | SLEEVE | 35127- | |
| 17 | 154-15-44171 | SLEEVE | 35001-35126 | |
| 18 | 07000-73022 | O-RING (KIT) | 35001- | |
| 19 | 154-15-44182 | SLEEVE | 35127- | |
| 19 | 154-15-44181 | SLEEVE | 35001-35126 | |
| 20 | 07000-72018 | O-RING (KIT) | 35001- | |
| 21 | 154-15-44160 | GASKET (KIT) | 35001- | |
| 22 | 01010-81065 | BOLT | 35001- | |
| 23 | 01643-31032 | WASHER | 35001- | |
| 24 | 04530-02438 | BOLT,EYE | 35001- |
