| Item | Part No. | Part Name | Qty | Serial No. |
| (415-15-11002) | TRANSMISSION ASS'Y | 12001- | ||
| (415-15-11001) | TRANSMISSION ASS'Y | 10001-11999 | ||

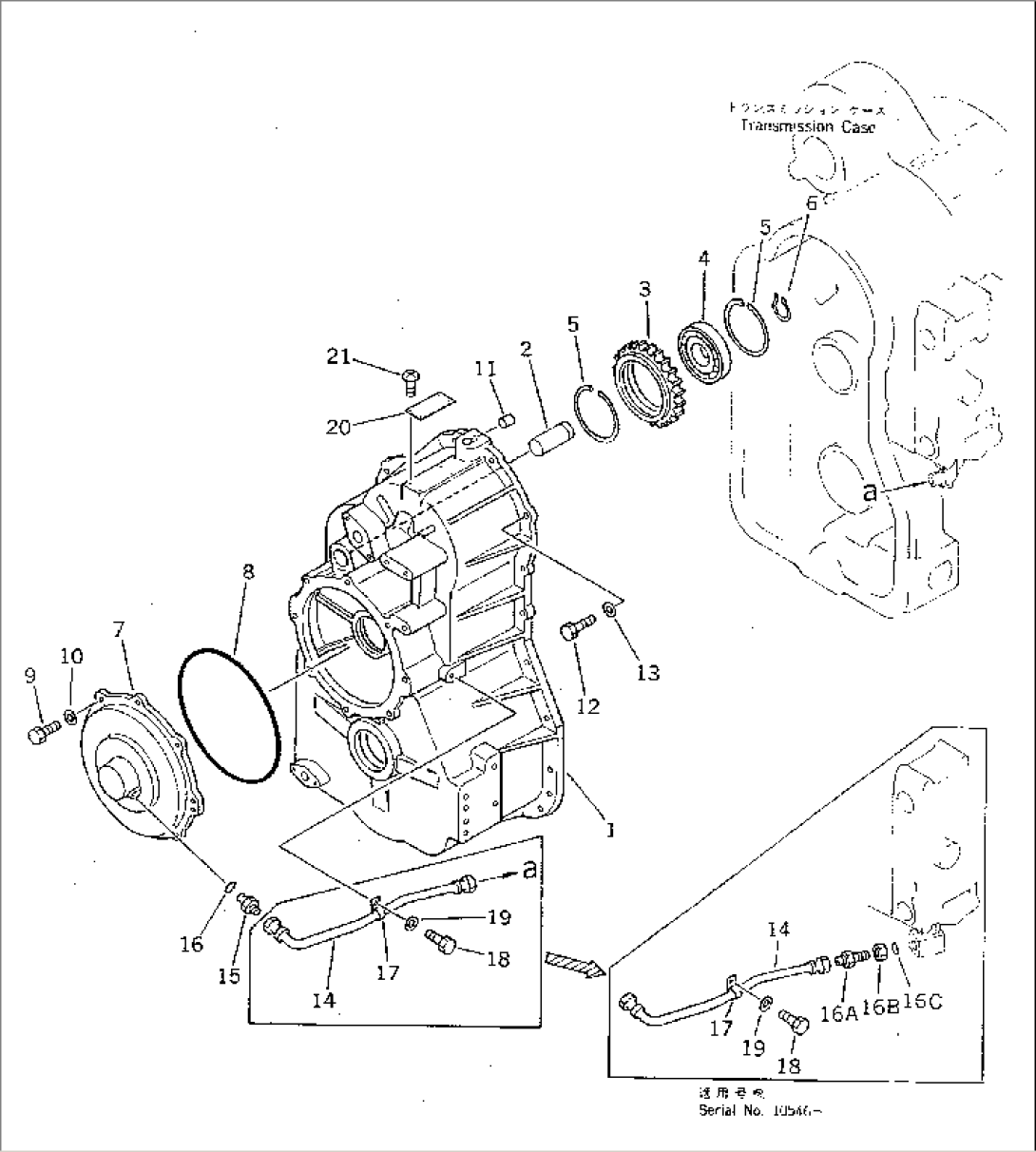

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2111 TO 2142A. | ||||
| 415-15-18102 | CASE ASS'Y,TRANSMISSION | 12001- | ||
| \0\415-15-18101 | CASE ASS'Y,TRANSMISSION | 10001-11999 | ||
| 1 | \6\ | CASE,FRONT | 12001- | |
| 1 | \6\ | CASE,FRONT | 10001-11999 | |
| 2 | \6\ | SHAFT,IDLER | 10001- | |
| 3 | 415-15-12952 | GEAR, 26 TEETH,IDLER | 12001- | |
| 3 | \0\415-15-12950 | GEAR,IDLER | 10001-11999 | |
| 4 | 06030-06207 | BEARING | 10001- | |
| 5 | 04065-07225 | RING,SNAP | 10001- | |
| 6 | 04064-03515 | RING,SNAP | 10001- | |
| 7 | 415-15-18211 | COVER | 12001- | |
| 7 | \0\415-15-18210 | COVER | 10001-11999 | |
| 8 | 07000-05210 | O-RING (K1) | 10001- | |
| 9 | 01010-31030 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001-11999 | |
| 11 | 04020-01228 | PIN,DOWEL | 10001- | |
| 12 | 01010-61240 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001-11999 | |
| 14 | 415-15-14313 | TUBE | 10546- | |
| 14 | 415-15-14312 | TUBE | 10001-10545 | |
| 15 | 07230-20315 | UNION | 10001- | |
| 16 | 07002-02034 | O-RING (K1) | 10001- | |
| 16A | 415-15-14321 | UNION | 10546- | |
| 16B | 415-15-14340 | NUT | 10546- | |
| 16C | 07002-02034 | O-RING | 10546- | |
| 17 | 415-15-14410 | CLIP | 10001- | |
| 18 | 01010-31020 | BOLT,(FOR SHIPPING) | 10001- | |
| 19 | 01643-31032 | WASHER,(FOR SHIPPING) | 10001- | |
| 20 | 09608-05080 | PLATE, NAME,(LIMITED SUPPLY) | 10001- | |
| 21 | 04418-13060 | SCREW | 10001- | |
| 22 | 419-15-18131 | LIQUID GASKET,(NOT SHOWN) (K1) | 10001- |
