| Item | Part No. | Part Name | Qty | Serial No. |

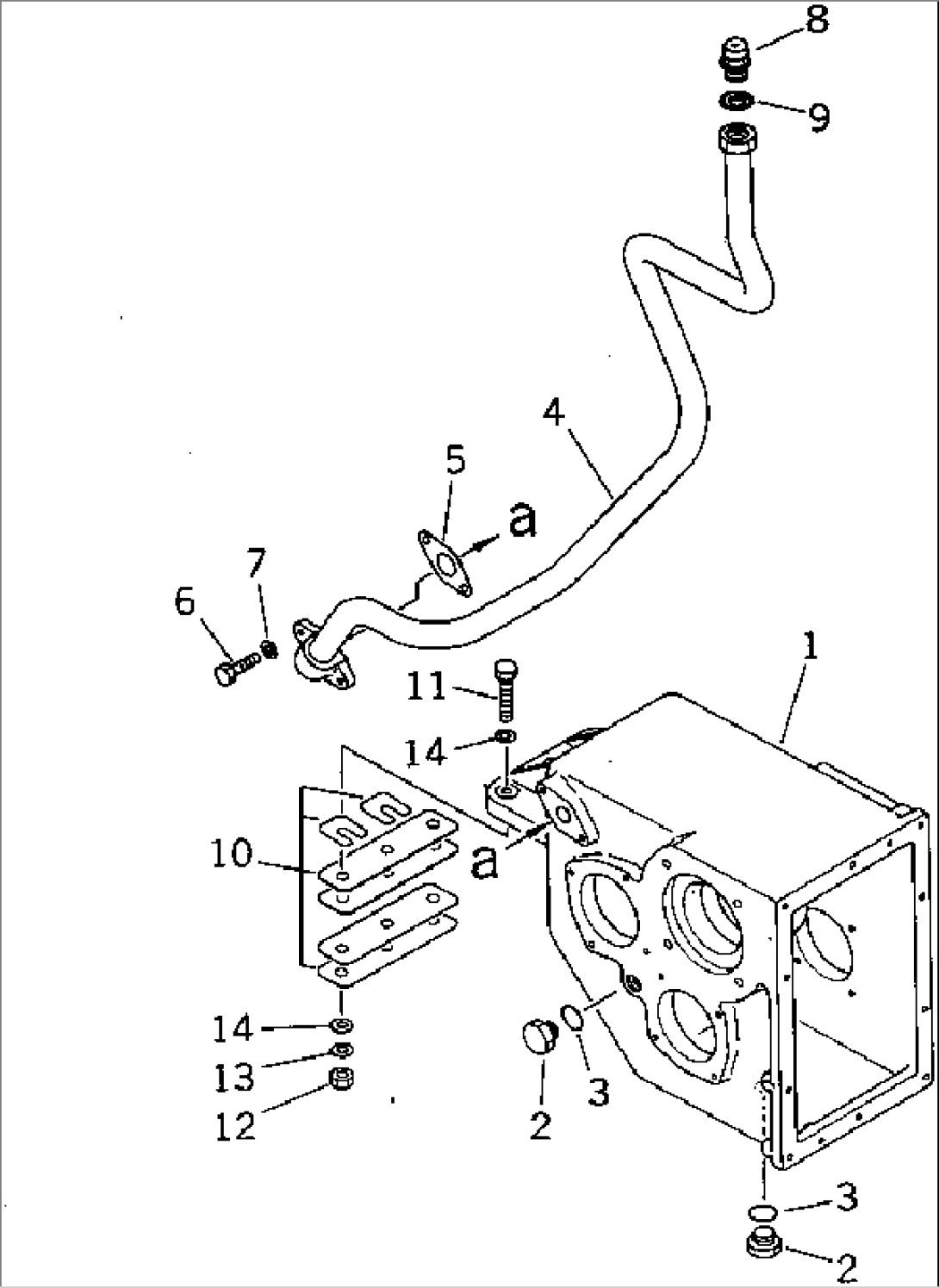

| 273-14-11000 | TRANSMISSION ASS'Y | 30003- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2407. | ||||
| 1 | 273-14-11610 | CASE | 30003- | |
| 2 | 07044-12412 | PLUG | 30003- | |
| 3 | 07002-12434 | O-RING | 30003- | |
| 4 | 273-14-11160 | TUBE | 30003- | |
| 5 | 238-12-12150 | GASKET | 30003- | |
| 6 | 01010-51030 | BOLT | 30003- | |
| 7 | 01643-31032 | WASHER | 30003- | |
| 8 | 232-23-11220 | BREATHER | 30003- | |
| 9 | 07005-03016 | SEAL, WASHER | 30003- | |
| 10 | 273-14-00010 | SHIM ASS'Y | 30003- | |
| 10 | \6\ | SHIM, 0.5MM | 30003- | |
| 10 | \6\ | SHIM, 0.2MM | 30003- | |
| 10 | 273-14-00020 | SHIM ASS'Y | 30003- | |
| 10 | \6\ | SHIM, 0.5MM | 30003- | |
| 10 | \6\ | SHIM, 0.2MM | 30003- | |
| 11 | 01010-51265 | BOLT | 30003- | |
| 12 | 01580-11210 | NUT | 30003- | |
| 13 | 01643-31232 | WASHER | 30003- | |
| 14 | 01643-31232 | WASHER | 30003- |
