| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

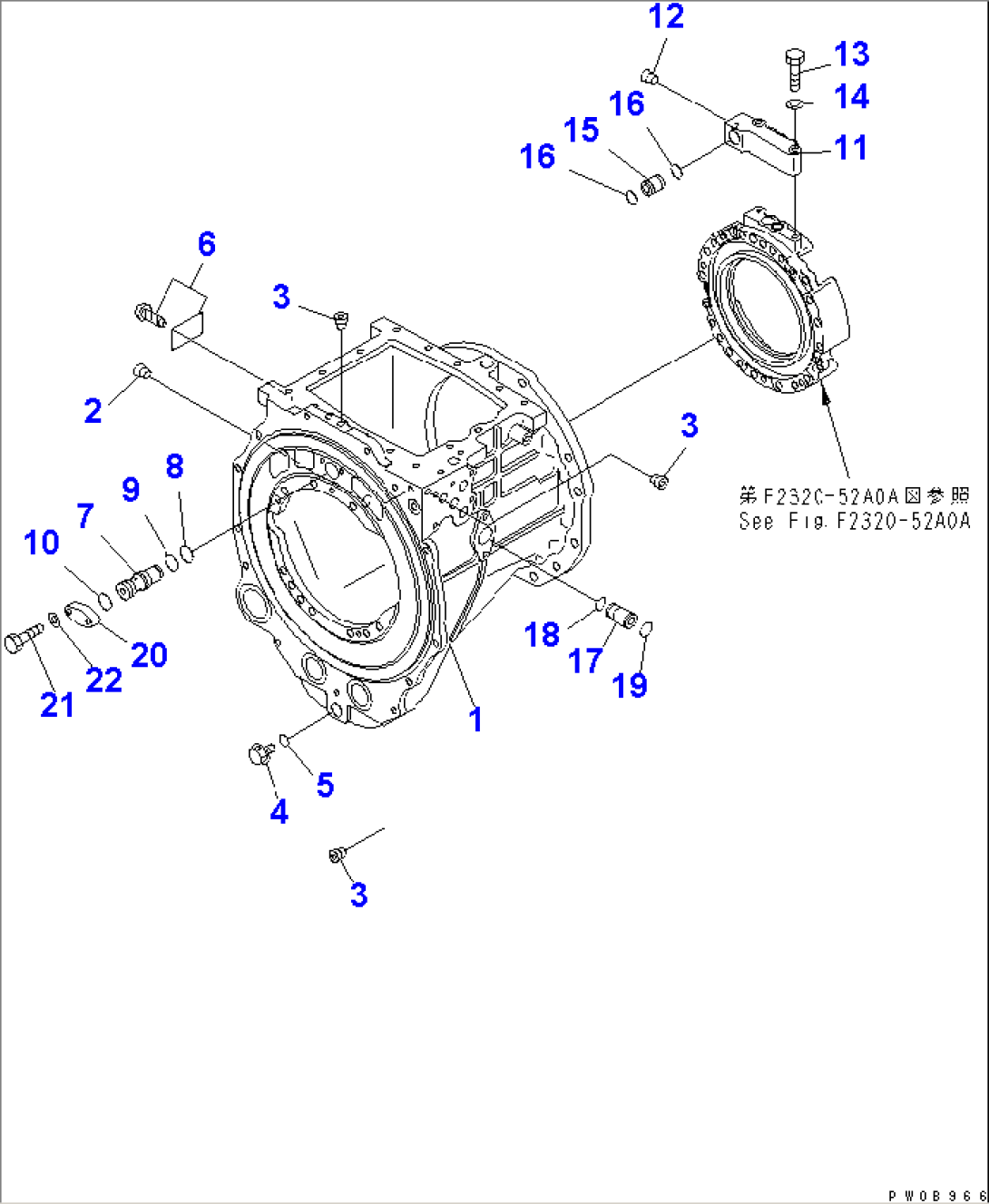

| (14X-15-21002) | TRANSMISSION ASS'Y | 4934- | ||
| (14X-15-21001) | TRANSMISSION ASS'Y | 4001-4933 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0A TO F2320-62A0A | ||||
| 1 | 134-15-71110 | CASE | (104171)- | |
| 1 | \0\14X-15-21111 | CASE | (101093)-(104170) | |
| 1 | \0\14X-15-21110 | CASE | 4001-(101092) | |
| 2 | 07043-70617 | PLUG | 4001- | |
| 3 | 07043-70211 | PLUG | 4001- | |
| 4 | 07044-12412 | PLUG | 3034- | |
| 5 | 07002-12434 | O-RING (K2) | 4001- | |
| 6 | 09608-05080 | PLATE, NAME | 3034- | |
| 6 | 04418-13060 | SCREW | 3034- | |
| 7 | 14X-15-15161 | SLEEVE | 3034- | |
| 8 | 07000-73022 | O-RING (K2) | 3034- | |
| 9 | 07000-73025 | O-RING (K2) | 3034- | |
| 10 | 07000-73028 | O-RING (K2) | 3034- | |
| 11 | 14X-15-25140 | BLOCK | 4001- | |
| 12 | 07043-70312 | PLUG | 3034- | |
| 13 | 01010-81065 | BOLT | 3034- | |
| 14 | 01643-31032 | WASHER | 3034- | |
| 15 | 17A-15-25191 | SLEEVE | 4001- | |
| 16 | 07000-73022 | O-RING (K2) | 3034- | |
| 17 | 14X-15-14150 | SLEEVE | 3034- | |
| 18 | 07000-73022 | O-RING (K2) | 3034- | |
| 19 | 07000-73025 | O-RING (K2) | 3034- | |
| 20 | 07336-60416 | FLANGE | 4001- | |
| 21 | 01010-81040 | BOLT | (105489)- | |
| 21 | 01010-81040 | BOLT | 4001-(105488) | |
| 22 | 01643-31032 | WASHER | (105489)- | |
| 22 | 01643-31032 | WASHER | 4001-(105488) |
