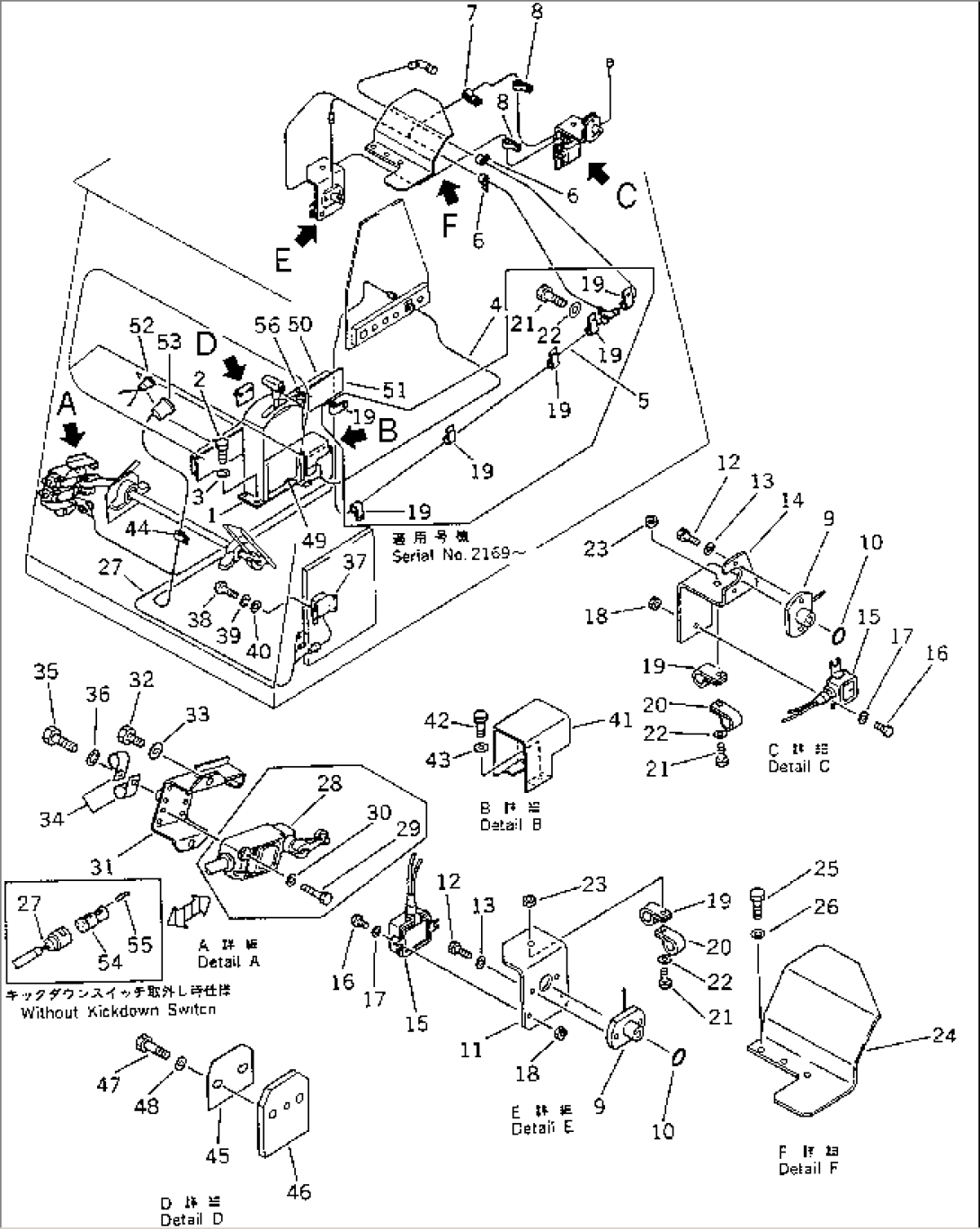

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (7818-16-1002) | CONSOLE BOX ASS'Y,(SEE FIG.1701) | 2001- | |
| 2 | 01010-51225 | BOLT | 2001- | |
| 3 | 01643-31232 | WASHER | 2001- | |
| 4 | 569-43-37110 | WIRE ASS'Y | 2001- | |
| 5 | 569-43-37120 | WIRE ASS'Y | 2001- | |
| 6 | 08036-02514 | CLIP | 2001- | |
| 7 | 08036-01814 | CLIP | 2001- | |
| 8 | 569-43-37160 | CLIP | 2001- | |
| 9 | 287-17-28611 | SENSOR,SPEED | 2001- | |
| 10 | 07000-43055 | O-RING | 2001- | |
| 11 | 569-43-37130 | BRACKET | 2001- | |
| 12 | 01010-50835 | BOLT | 2001- | |
| 13 | 01643-30823 | WASHER | 2001- | |
| 14 | 569-43-37150 | BRACKET | 2001- | |
| 15 | 566-17-18311 | CONTROLLER | 2001- | |
| 16 | 01010-50616 | BOLT | 2001- | |
| 17 | 01643-30623 | WASHER | 2001- | |
| 18 | 01580-10605 | NUT | 2001- | |
| 19 | 08036-02514 | CLIP | 2169- | |
| 08036-02514 | CLIP | 2001-2168 | ||
| 20 | 08036-01814 | CLIP | 2001- | |
| 21 | 01010-51016 | BOLT | 2169- | |
| 01010-51016 | BOLT | 2001-2168 | ||
| 22 | 01643-31032 | WASHER | 2169- | |
| 01643-31032 | WASHER | 2001-2168 | ||
| 23 | 01580-11008 | NUT | 2001- | |
| 24 | 569-43-45420 | COVER | 2001- | |
| 25 | 01010-51090 | BOLT | 2001- | |
| 26 | 01643-31032 | WASHER | 2001- | |
| 27 | 569-43-35310 | WIRE ASS'Y | 2001- | |
| 28 | 566-06-41413 | SWITCH | .- | |
| \0\566-06-41411 | SWITCH | 2001-. | ||
| 29 | 01010-50620 | BOLT | 2001- | |
| 30 | 01643-30623 | WASHER | 2001- | |
| 31 | 566-43-45191 | BRACKET | 2001- | |
| 32 | 01010-51020 | BOLT | 2001- | |
| 33 | 01643-31032 | WASHER | 2001- | |
| 34 | 08036-02514 | CLIP | 2001- | |
| 35 | 01010-51016 | BOLT | 2001- | |
| 36 | 01643-31032 | WASHER | 2001- | |
| 37 | 566-43-45411 | RELAY | 2001- | |
| 38 | 01220-40612 | SCREW | 2001- | |
| 39 | 01602-20619 | WASHER,SPRING | 2001- | |
| 40 | 01641-20608 | WASHER | 2001- | |
| 41 | 566-43-45420 | COVER | 2001- | |
| 42 | 01010-51225 | BOLT | 2001- | |
| 43 | 01643-31232 | WASHER | 2001- | |
| 44 | 08036-03014 | CLIP | 2001- | |
| 45 | 566-43-45610 | PLATE | 2001- | |
| 46 | 566-43-41170 | SEAL | 2001- | |
| 47 | 01010-51025 | BOLT | 2001- | |
| 48 | 01643-31032 | WASHER | 2001- | |
| 49 | 566-06-16920 | STICKER | 2001- | |
| 50 | 566-54-43590 | FELT | 2001- | |
| 51 | 566-54-43290 | PLATE,PUNCHING METAL | 2001- | |
| 52 | 566-06-41320 | LAMP,KICK-DOWN | 2001- | |
| 53 | (7818-13-1001) | SHIFT INDICATOR A.,(SEE FIG.1711) | 2001- | |
| 54 | 08050-04710 | CONNECTOR | 2001- | |
| 55 | 08050-00600 | PLUG | 2001- | |
| 56 | (566-35-11150) | VALVE ASS'Y,(SEE FIG.3611) | 2001- |
