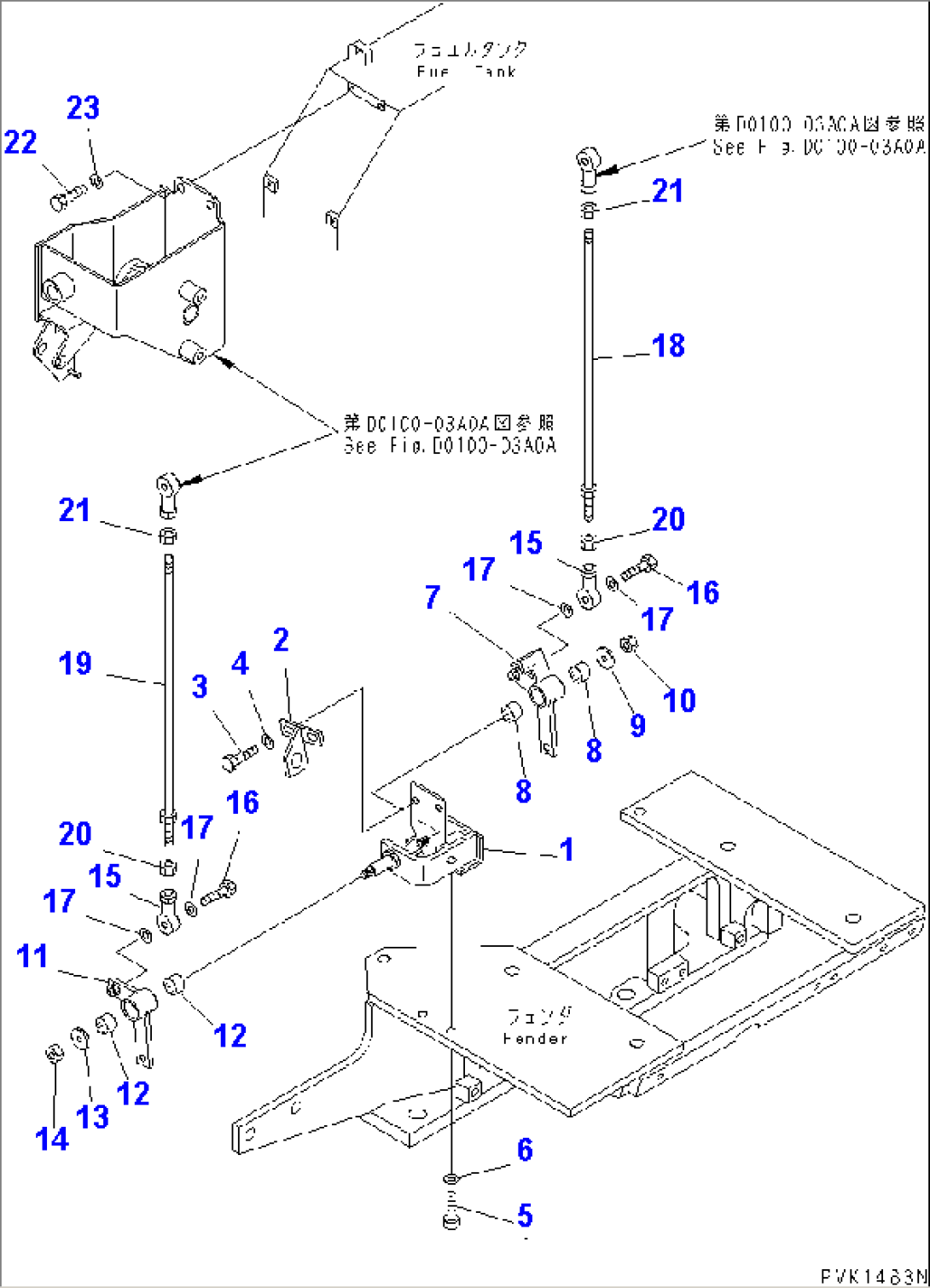

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-43-48512 | BRACKET | 47617- | |
| 2 | 104-43-41320 | BRACKET | 47617- | |
| 3 | 01010-80820 | BOLT | 47617- | |
| 4 | 01643-30823 | WASHER | 47617- | |
| 5 | 01010-81030 | BOLT | 47617- | |
| 6 | 01602-21030 | WASHER | 47617- | |
| 7 | 114-43-51380 | LEVER | 47617- | |
| 8 | 363-43-27250 | BEARING | 47617- | |
| 9 | 113-43-23230 | WASHER | 47617- | |
| 10 | 01598-00809 | NUT | 47617- | |
| 11 | 114-43-51390 | LEVER | 47617- | |
| 12 | 363-43-27250 | BEARING | 47617- | |
| 13 | 113-43-23230 | WASHER | 47617- | |
| 14 | 01598-00809 | NUT | 47617- | |
| 15 | 04250-80847 | END | 47617- | |
| 16 | 01010-80830 | BOLT | 47617- | |
| 17 | 01643-30823 | WASHER | 47617- | |
| 18 | 04248-30844 | ROD | 47617- | |
| 19 | 04248-30844 | ROD | 47839- | |
| 19 | 04248-30845 | ROD | 47617-47838 | |
| 20 | 01580-10806 | NUT | 47617- | |
| 21 | 01508-40805 | NUT | 47617- | |
| 22 | 01010-81020 | BOLT | 47617- | |
| 23 | 01643-31032 | WASHER | 47617- |
