| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-43-11813 | LEVER | F70001- | |
| 2 | 01010-81245 | BOLT | F70001- | |
| 3 | 01580-11210 | NUT | F70001- | |
| 4 | 01643-11232 | WASHER | F70001- | |
| 5 | 42N-06-12312 | KNOB | F70001- | |
| 6 | 885081064 | PUSH-BUTTON | F70001- | |
| 7 | 42N-54-19550 | BOOT | F70001- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb93r 5e0 s/n f70001 up
- Control system
- Transmission control lever
Поиск по каталогу

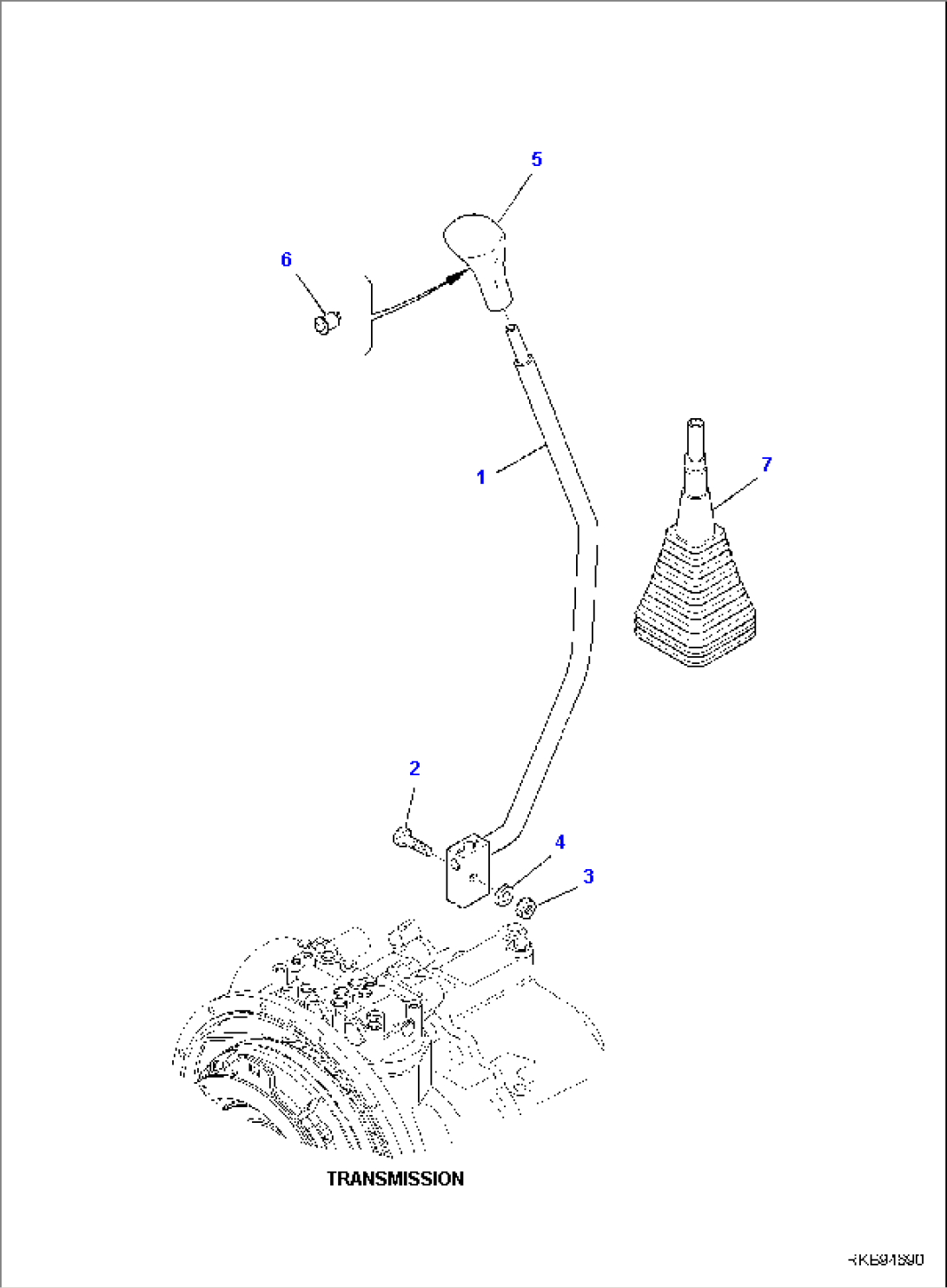

TRANSMISSION CONTROL LEVER
