| Item | Part No. | Part Name | Qty | Serial No. |
| (235-45-31101) | CONTROLLER ASS'Y,TRANSMISSION | 11031-12020 | ||

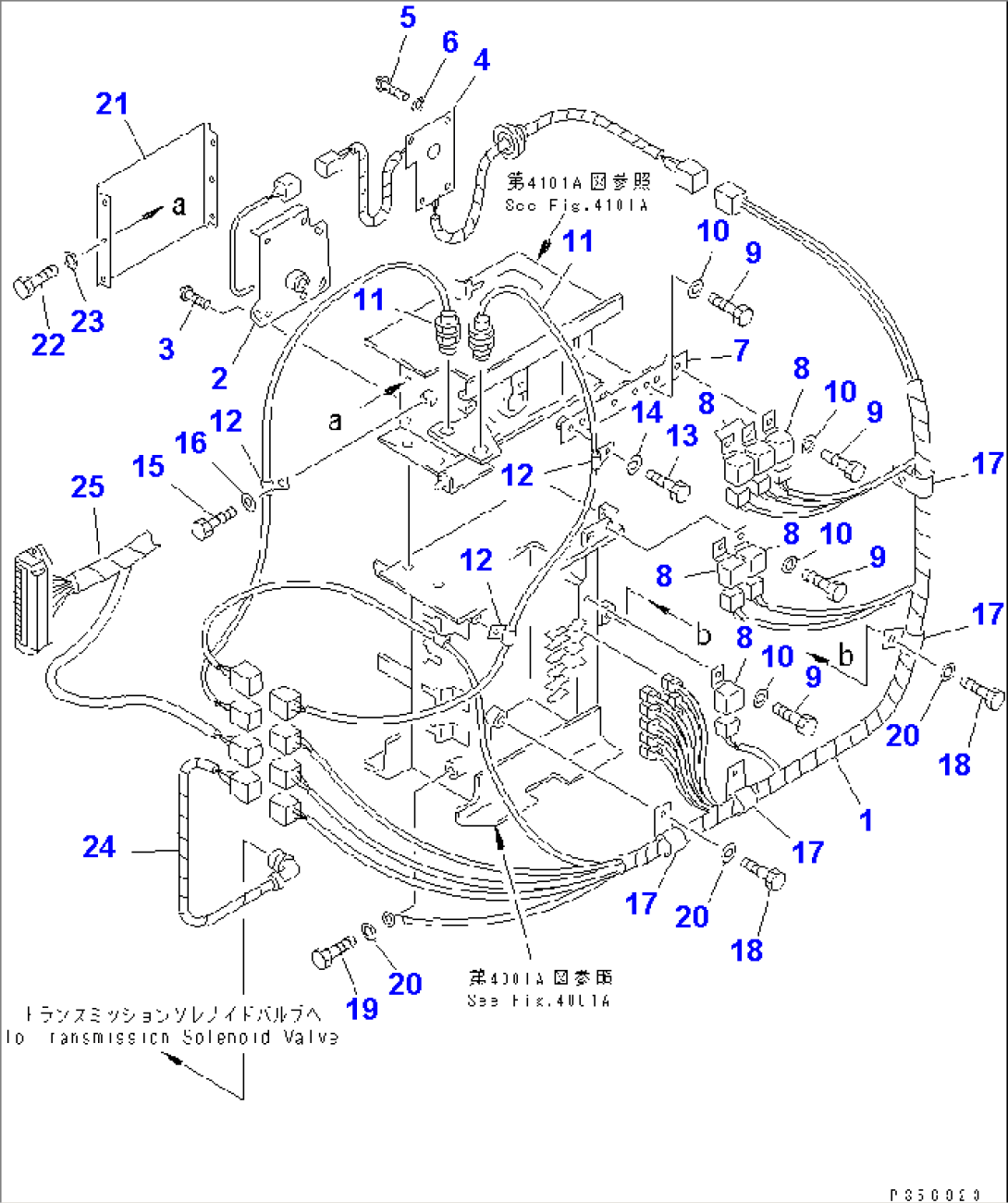

| THIS ASSEMBLY CONSIST OF ALL PARTS SHOWN IN FIGS.4001A AND 4101A, 4105A. | ||||
| 1 | 235-45-33451 | HARNESS | 11031-12020 | |
| 2 | 235-45-13811 | SWITCH ASS'Y | 11014-12020 | |
| 3 | 01023-10612 | SCREW | 11001-12020 | |
| 4 | 235-45-33441 | HARNESS | 11031-12020 | |
| 5 | 01220-40410 | SCREW | 11001-12020 | |
| 6 | 01642-20405 | WASHER | 11001-12020 | |
| 7 | 235-45-33180 | BRACKET | 11001-12020 | |
| 8 | 569-06-61960 | RELAY | 11031-12020 | |
| 9 | 01010-50612 | BOLT | 11031-12020 | |
| 10 | 01643-30623 | WASHER | 11031-12020 | |
| 11 | 235-45-33410 | SENSOR | 11001-12020 | |
| 12 | 08036-10810 | CLIP | 11001-12020 | |
| 13 | 01010-50612 | BOLT | 11001-12020 | |
| 14 | 01643-30623 | WASHER | 11001-12020 | |
| 15 | 01010-50814 | BOLT | 11001-12020 | |
| 16 | 01643-30823 | WASHER | 11001-12020 | |
| 17 | 08036-02514 | CLIP | 11001-12020 | |
| 18 | 01010-51018 | BOLT | 11001-12020 | |
| 19 | 01010-51016 | BOLT | 11001-12020 | |
| 20 | 01643-31032 | WASHER | 11001-12020 | |
| 21 | 235-45-33190 | COVER | 11001-12020 | |
| 22 | 01010-50614 | BOLT | 11001-12020 | |
| 23 | 01643-30623 | WASHER | 11001-12020 | |
| 24 | (235-06-31213) | HARNESS | 11031-12020 | |
| 25 | (235-06-31473) | HARNESS | 11031-12020 |
