| Item | Part No. | Part Name | Qty | Serial No. |

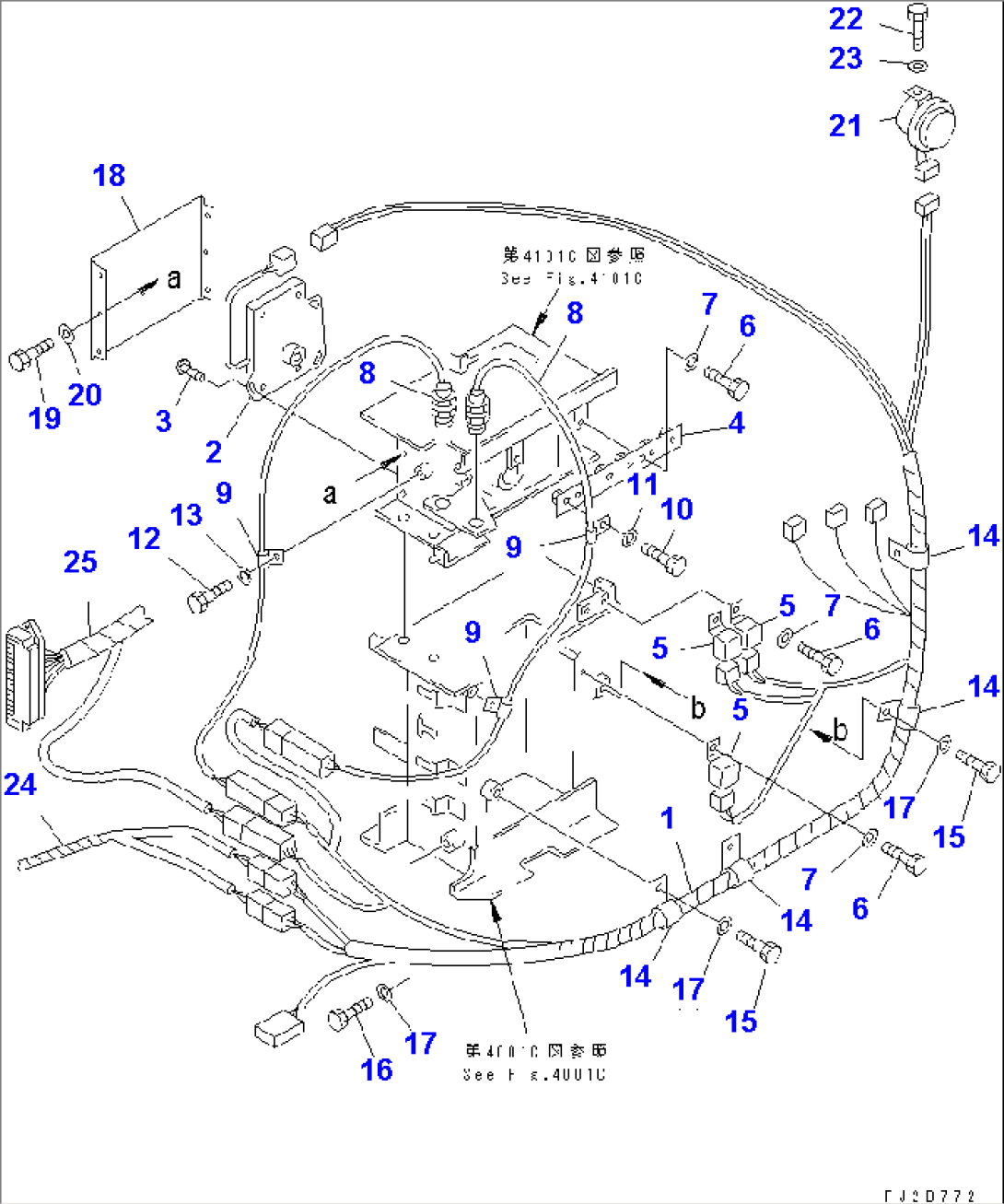

| (235-45-31103) | CONTROLLER ASS'Y,TRANSMISSION | 12095-12502 | ||
| THIS ASSEMBLY CONSIST OF ALL PARTS SHOWN IN FIGS.4001C AND 4101C, 4105C. | ||||
| 1 | 235-06-36450 | HARNESS | 12099-12502 | |
| 1 | 235-06-35681 | HARNESS | 12095-12098 | |
| 2 | 235-45-13811 | SWITCH ASS'Y | 12095-@ | |
| 3 | 01023-10612 | SCREW | 12095-@ | |
| 4 | 235-45-34230 | SEAT | 12099-@ | |
| 4 | \0\235-45-33180 | BRACKET | 12095-12098 | |
| 5 | 569-06-61960 | RELAY | 12095-@ | |
| 6 | 01010-50612 | BOLT | 12095-@ | |
| 7 | 01643-30623 | WASHER | 12095-@ | |
| 8 | 235-45-33410 | SENSOR | 12095-@ | |
| 9 | 08036-10810 | CLIP | 12095-12502 | |
| 10 | 01010-50612 | BOLT | 12095-@ | |
| 11 | 01643-30623 | WASHER | 12095-@ | |
| 12 | 01010-50814 | BOLT | 12095-12502 | |
| 13 | 01643-30823 | WASHER | 12095-@ | |
| 14 | 08036-02514 | CLIP | 12095-12502 | |
| 15 | 01010-81018 | BOLT | 12095-@ | |
| 16 | 01010-81016 | BOLT | 12095-@ | |
| 17 | 01643-31032 | WASHER | 12095-@ | |
| 18 | 235-45-33190 | COVER | 12095-@ | |
| 19 | 01010-80614 | BOLT | 12095-@ | |
| 20 | 01643-30623 | WASHER | 12095-@ | |
| 21 | 203-06-56230 | BUZZER ASS'Y | 12095-@ | |
| 22 | 01010-80612 | BOLT | 12095-@ | |
| 23 | 01643-30623 | WASHER | 12095-@ | |
| 24 | (235-06-35661) | HARNESS | 12095-@ | |
| 25 | (235-06-36440) | HARNESS | 12099-@ | |
| 25 | (235-06-31474) | HARNESS | 12095-12098 |
