| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23A-45-11130 | LEVER | 6001-6700 | |
| 2 | 232-43-52320 | BUSHING | 6001-6700 | |
| 3 | 01643-31645 | WASHER | 6001-6700 | |
| 4 | 04064-01610 | RING,SNAP | 6001-6700 | |
| 5 | 04252-01061 | END,ROD | 6001-6700 | |
| 6 | 01583-11006 | NUT | 6001-6700 | |
| 7 | 232-45-11180 | ROD | 6001-6700 | |
| 8 | 04252-11061 | END,ROD | 6001-6700 | |
| 9 | 01508-41006 | NUT,L.H. THREAD | 6525-6700 | |
| 01508-21006 | NUT,L.H. THREAD | 6001-6524 | ||
| 10 | 232-45-11340 | PIN | 6001-6700 | |
| 11 | 01582-11008 | NUT | 6001-@ | |
| 12 | 01643-31032 | WASHER | 6001-@ | |
| 13 | 23A-45-11290 | NUT | 6042-6700 | |
| 01593-11008 | NUT | 6001-6041 | ||
| 14 | 04050-12018 | PIN,COTTER | 6001-6700 | |
| 15 | 238-45-11310 | LINK,BALL | 6001-6700 | |
| 16 | 01583-11006 | NUT | 6001-6700 | |
| 17 | 01508-41006 | NUT,L.H. THREAD | 6525-6700 | |
| 01508-21006 | NUT,L.H. THREAD | 6001-6524 | ||
| 18 | 01643-31032 | WASHER | 6001-6700 | |
| 19 | 04248-31055 | ROD | 6001-6700 | |
| 20 | 238-45-11320 | LINK,BALL | 6001-6700 | |
| 21 | 01583-11006 | NUT | 6001-6700 | |
| 22 | 01582-11008 | NUT | 6001-6700 | |
| 23 | 01643-31032 | WASHER | 6001-6700 | |
| 24 | 23E-45-11170 | BRACKET | 6001-6700 | |
| 25 | 01010-51055 | BOLT | 6001-6700 | |
| 26 | 23A-45-11140 | LEVER | 6001-6700 | |
| 27 | 232-43-57180 | BUSHING | 6001-6700 | |
| 28 | 01643-31645 | WASHER | 6001-6700 | |
| 29 | 04064-01610 | RING,SNAP | 6001-6700 | |
| 30 | 238-45-11320 | LINK,BALL | 6001-6700 | |
| 31 | 01583-11006 | NUT | 6001-6700 | |
| 32 | 01582-11008 | NUT | 6001-6700 | |
| 33 | 01643-31032 | WASHER | 6001-6700 | |
| 34 | 04248-31026 | ROD | 6001-6700 | |
| 35 | 04250-61056 | END,ROD | 6001-6700 | |
| 36 | 01593-31008 | NUT | 6670-6700 | |
| 01593-11008 | NUT | 6001-6669 | ||
| 37 | 01508-41006 | NUT,L.H. THREAD | 6001-6700 | |
| 38 | 04050-12018 | PIN,COTTER | 6001-6700 | |
| 39 | 23E-43-12210 | COVER | 6001-6700 | |
| 40 | 23E-43-12220 | PLATE | 6001-6700 | |
| 41 | 23E-43-12230 | SEAT | 6001-6700 | |
| 42 | 01010-50614 | BOLT | 6001-6700 | |
| 43 | 01643-30623 | WASHER | 6001-6700 | |
| 44 | 01010-50825 | BOLT | 6001-6700 | |
| 45 | 01643-30823 | WASHER | 6001-6500 | |
| 46 | 01643-30823 | WASHER | 6001-6700 | |
| 47 | 23A-45-11190 | YOKE | 6001-@ | |
| 48 | 01580-10605 | NUT | 6001-@ | |
| 49 | 04205-10822 | PIN | 6001-@ | |
| 50 | 04052-00833 | PIN,SNAP | 6001-@ | |
| 51 | 233-45-12112 | CABLE¤ 1350MM | 6001-6700 | |
| 52 | 01583-11610 | NUT | 6015-6700 | |
| 01582-11613 | NUT | 6001-6014 | ||
| 53 | 01582-11613 | NUT | 6001-@ | |
| 54 | 07005-01612 | GASKET | 6001-@ | |
| 55 | 232-45-11311 | YOKE | 6001-@ | |
| 56 | 01580-10605 | NUT | 6001-@ | |
| 57 | 23B-43-12250 | COVER | 6001-6700 | |
| 58 | 23B-43-12260 | SEAT | 6001-6700 | |
| 59 | 01010-50825 | BOLT | 6001-6700 | |
| 60 | 01643-30823 | WASHER | 6001-6500 | |
| 61 | 01643-30823 | WASHER | 6001-6700 |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd305a 1 s/n 6001 6733
- Control system

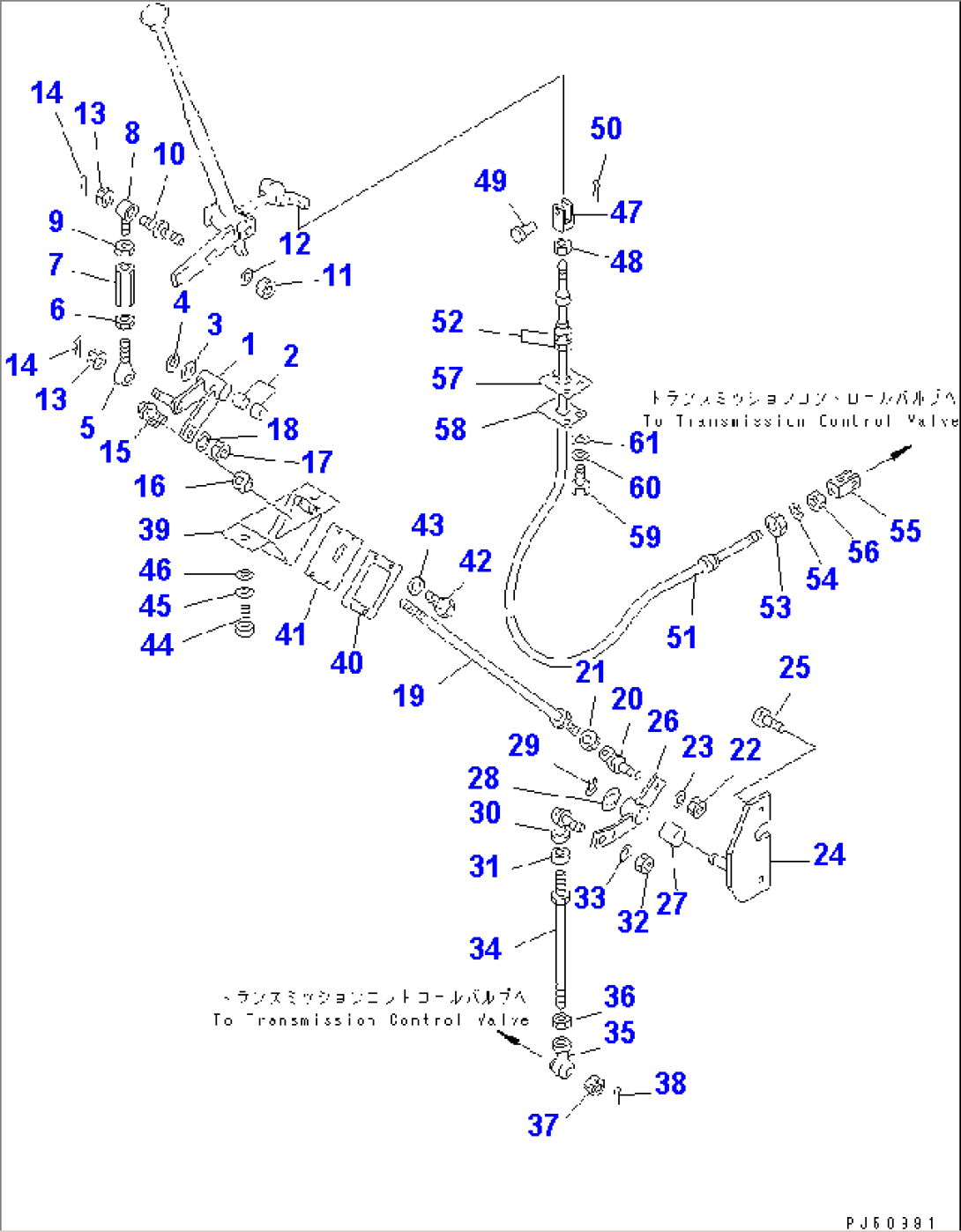

- Transmission control linkage(#6001 6700)
