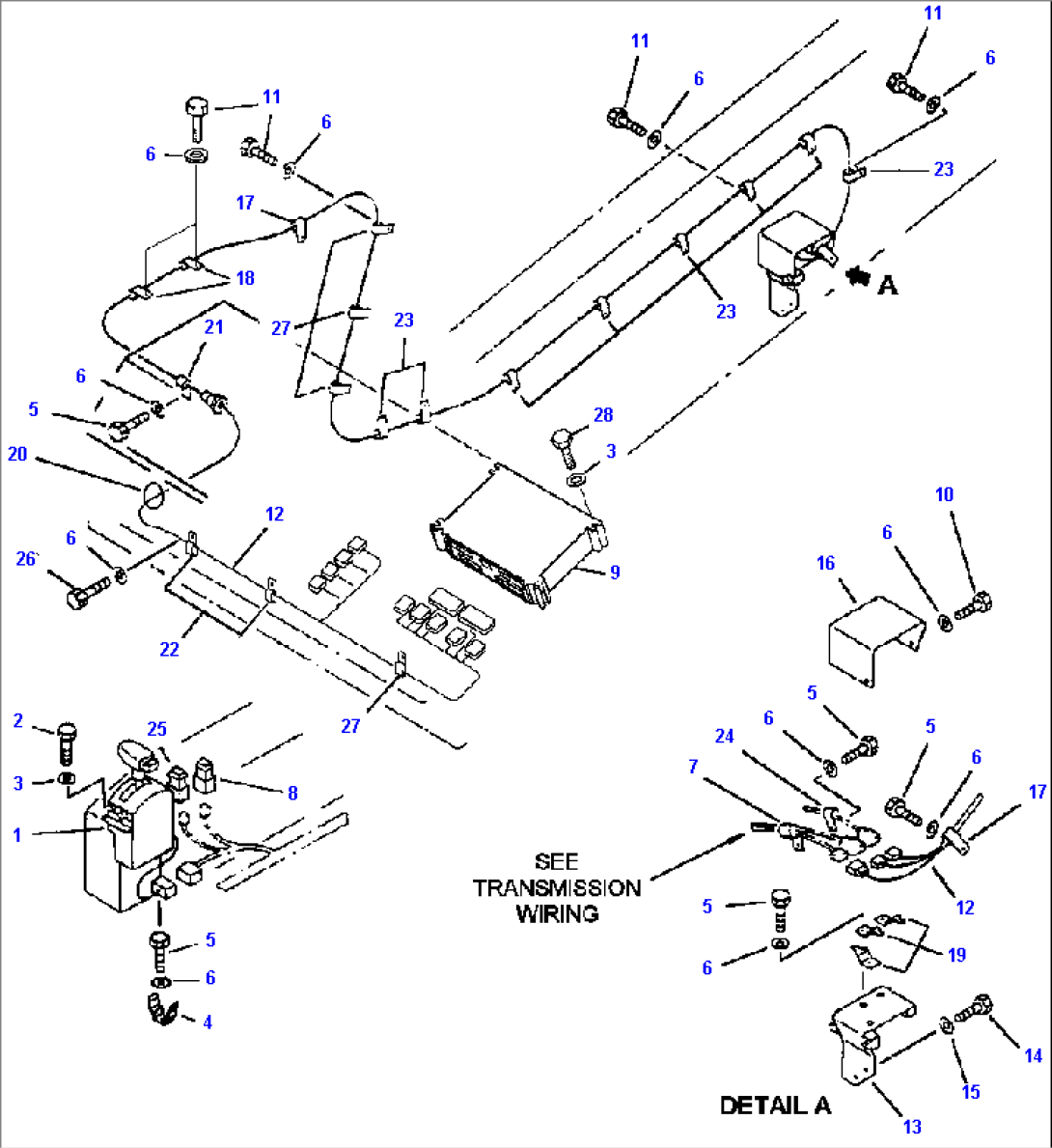

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-44-65600 | TRANSMISSION LEVER ASSEMBLY (SEE INDEX) | ||
| 2 | 01010-80816 | CAPSCREW | ||
| 3 | 01643-30823 | FLAT WASHER | ||
| 4 | 08053-15012 | CLIP, CONNECTOR | ||
| 5 | 01010-81016 | CAPSCREW | ||
| 6 | 01643-31032 | FLAT WASHER | ||
| 7 | 08036-03014 | CLIP | ||
| 8 | 569-06-61282 | SWITCH, SHIFT LIMIT | ||
| 8 | 569-06-61340 | BULB, RED | ||
| 8 | 569-06-61350 | BULB, WHITE | ||
| 9 | 7818-53-3009 | CONTROL BOX ASSEMBLY | ||
| 10 | 01010-81020 | CAPSCREW | ||
| 11 | 01010-81025 | CAPSCREW | ||
| 12 | 561-44-66412 | WIRING HARNESS, CONTROLLER TO TRANSMISSION | ||
| 13 | 561-44-65450 | BRACKET | ||
| 14 | 01010-81225 | CAPSCREW | ||
| 15 | 01643-31232 | FLAT WASHER | ||
| 16 | 561-44-65460 | COVER | ||
| 17 | 04434-52711 | CLAMP, VINYL | ||
| 18 | 08035-03008 | CLAMP, VINYL | ||
| 19 | 08053-00912 | CLIP, CONNECTOR | ||
| 20 | 08034-10838 | BAND | ||
| 21 | 285-02-11320 | CLIP | ||
| 22 | 562-06-15180 | CLIP | ||
| 23 | 08036-03014 | CLIP | ||
| 24 | 08036-01814 | CLIP | ||
| 25 | 569-06-61262 | SWITCH, ECONOMY | ||
| 25 | 569-06-61350 | BULB, WHITE | ||
| 25 | 569-06-61330 | BULB, GREEN | ||
| 26 | 01580-11008 | NUT | ||
| 27 | 04434-53412 | CLIP | ||
| 28 | 01010-80885 | CAPSCREW |
