| Item | Part No. | Part Name | Qty | Serial No. |
| (566-15-81000) | TRANSMISSION ASS'Y | 7001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-64A0. | ||||

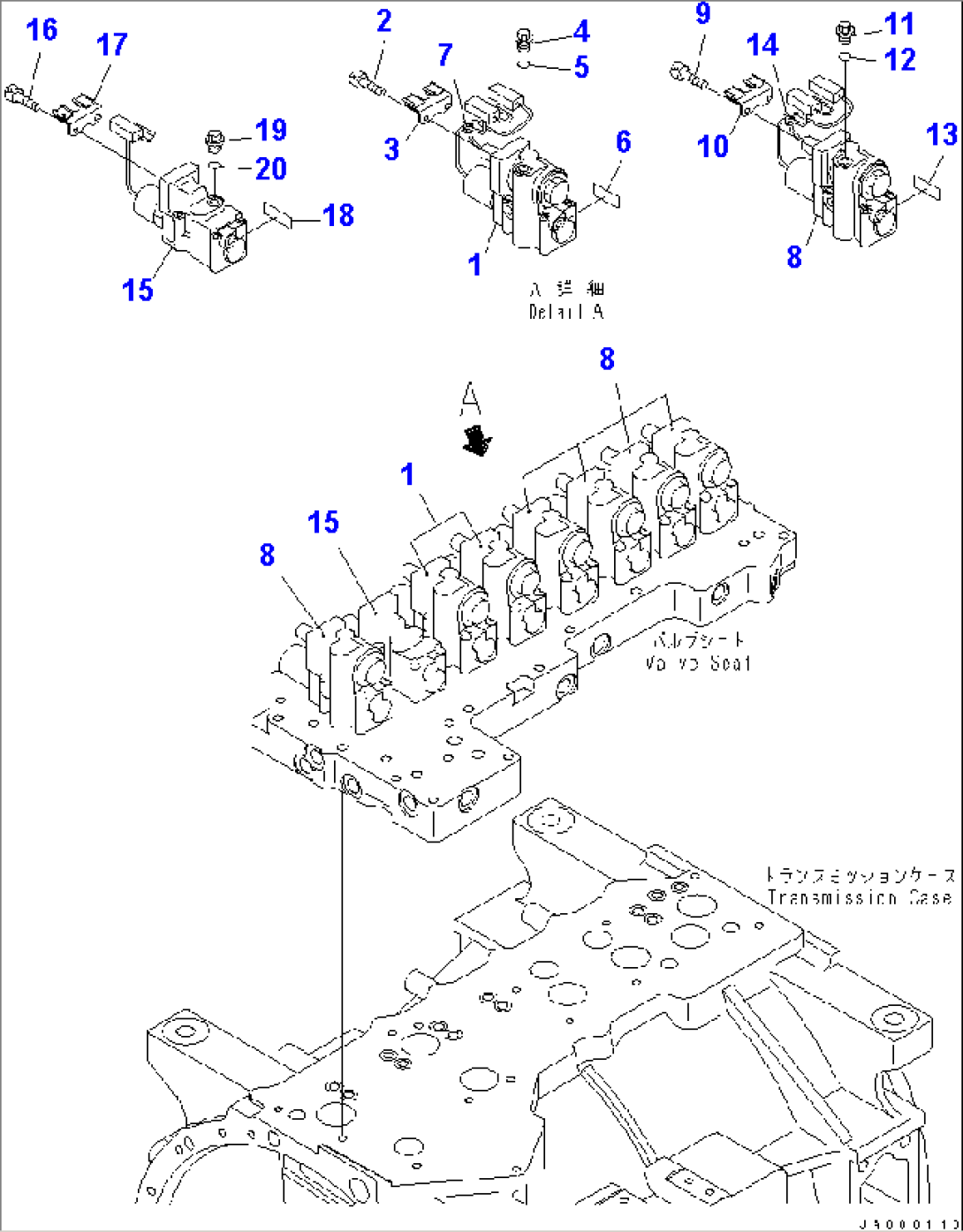

| 566-15-85003 | CONTROL VALVE ASS'Y | 7001- | ||
| (\2\566-15-85002) | CONTROL VALVE ASS'Y | (7001-7334) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-61A0 TO F3320-62A0. | ||||
| 1 | 566-15-85301 | ECMV ASS'Y | 7001- | |
| 1 | (\2\566-15-85300) | ECMV ASS'Y | (7001-7334) | |
| 2 | 01252-60510 | BOLT | 7001- | |
| 3 | 714-23-15690 | BRACKET | 7001- | |
| 4 | 708-8E-16150 | PLUG | 7001- | |
| 5 | 07002-61023 | O-RING (K3) | 7001- | |
| 6 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 7001- | |
| 7 | 08034-00310 | BAND | 7335- | |
| 7 | 08034-00414 | BAND | 7001-7334 | |
| 8 | 425-15-35201 | ECMV ASS'Y | 7001- | |
| 8 | (\2\425-15-35200) | ECMV ASS'Y | (7001-7334) | |
| 9 | 01252-60510 | BOLT | 7001- | |
| 10 | 714-23-15690 | BRACKET | 7001- | |
| 11 | 708-8E-16150 | PLUG | 7001- | |
| 12 | 07002-61023 | O-RING (K3) | 7001- | |
| 13 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 7001- | |
| 14 | 08034-00310 | BAND | 7335- | |
| 14 | 08034-20414 | BAND | 7001-7334 | |
| 15 | 425-15-35300 | ECMV ASS'Y | 7001- | |
| 16 | 01252-60510 | BOLT | 7001- | |
| 17 | 425-15-35330 | BRACKET | 7001- | |
| 18 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 7001- | |
| 19 | 708-8E-16150 | PLUG | 7001- | |
| 20 | 07002-61023 | O-RING (K3) | 7001- |
