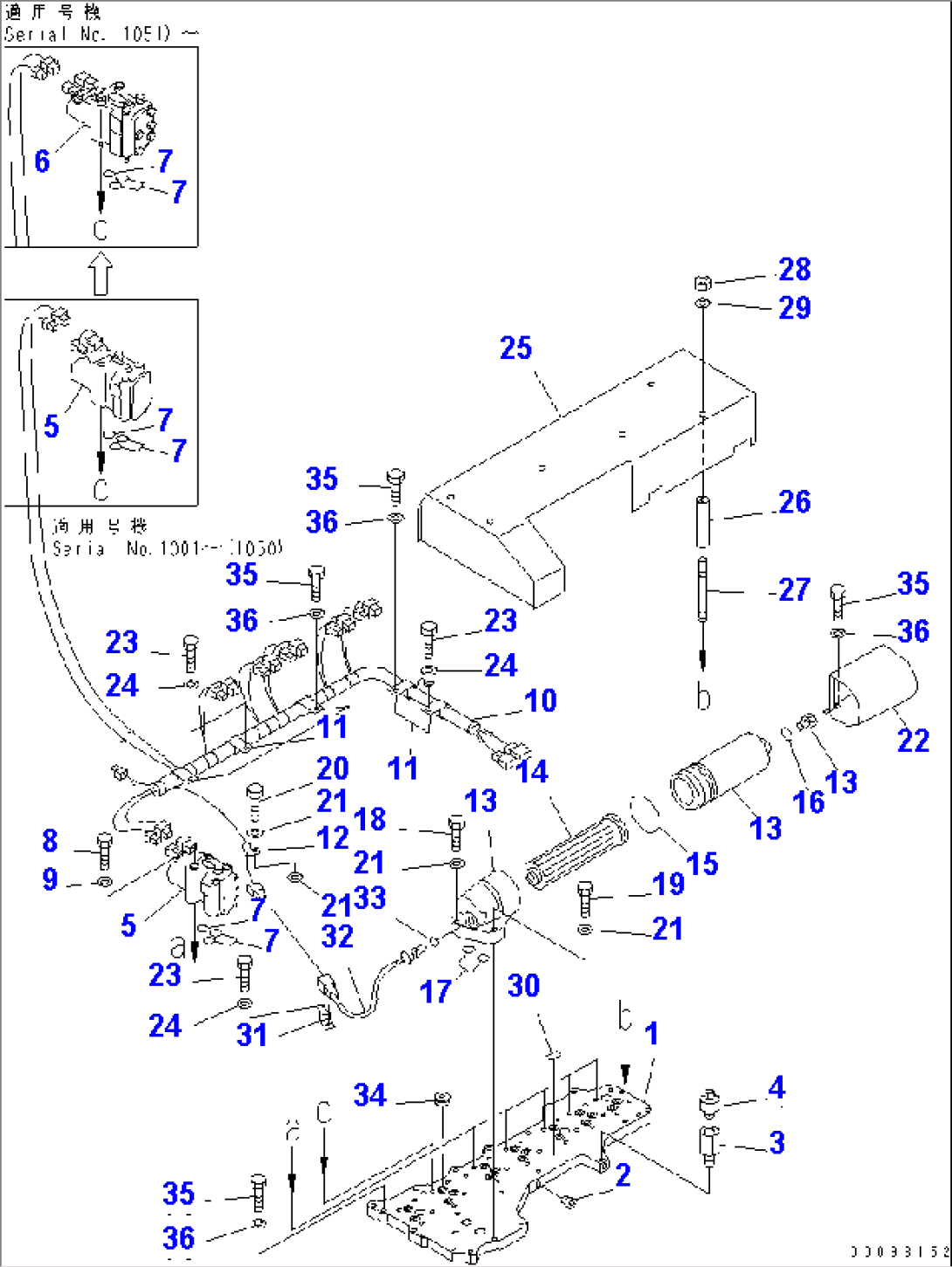

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00900) | TRANSMISSION ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||
| 561-15-00950 | VALVE ASS'Y | (101063)- | ||
| 561-15-00854 | VALVE ASS'Y | (1051)-(101062) | ||
| 561-15-00852 | CONTROL VALVE ASS'Y | (1045)-(1050) | ||
| 561-15-00851 | CONTROL VALVE ASS'Y | 1001-(1044) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2521 TO 2523. | ||||
| 1 | 561-15-55135 | SEAT,VALVE | (1005)- | |
| 1 | 561-15-55134 | SEAT,VALVE | 1001-(1004) | |
| 2 | 07043-00312 | PLUG | 1001- | |
| 3 | 170-21-11190 | NIPPLE | (1007)- | |
| 3 | 569-15-11620 | EXTENSION | 1001-(1006) | |
| 4 | 07030-00252 | BREATHER | (1021)- | |
| 4 | 07030-10252 | BREATHER | 1001-(1020) | |
| 5 | (561-15-00863) | ECMV ASS'Y | (1051)- | |
| 5 | (561-15-00861) | ECMV ASS'Y | (1045)-(1050) | |
| 5 | (561-15-00860) | ECMV ASS'Y | 1001-(1044) | |
| 6 | (561-15-55400) | ECMV ASS'Y | (1051)- | |
| 7 | 07000-72018 | O-RING (K3) | 1001- | |
| 8 | 10E-60-25120 | BOLT | 1001- | |
| 9 | 01643-30823 | WASHER | 1001- | |
| 10 | 561-15-55870 | WIRING HARNESS | (101063)- | |
| 10 | 561-15-55882 | WIRING HARNESS | 1001-(101062) | |
| 11 | 08035-03010 | CLIP | 1001- | |
| 12 | 08036-21014 | CLIP | 1001- | |
| 13 | 561-15-55650 | FILTER ASS'Y | 1001- | |
| 14 | 561-15-55660 | ELEMENT ASS'Y | 1001- | |
| 15 | 07000-02080 | O-RING (K3) | 1001- | |
| 16 | 170-09-17130 | O-RING (K3) | 1001- | |
| 17 | 07000-73028 | O-RING (K3) | 1001- | |
| 18 | 01010-81045 | BOLT | 1001- | |
| 19 | 01010-81075 | BOLT | 1001- | |
| 20 | 01010-81080 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 561-15-55921 | COVER | 1001- | |
| 23 | 01010-81020 | BOLT | 1001- | |
| 24 | 01643-31032 | WASHER | 1001- | |
| 25 | 561-15-55863 | COVER | 1001- | |
| 26 | 561-15-55910 | SPACER | 1001- | |
| 27 | 561-15-55940 | STUD | 1001- | |
| 28 | 01580-11008 | NUT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | 700-11-31980 | PLATE, NAME,(LIMITED SUPPLY) | 1001- | |
| 31 | 08053-01512 | CLIP | 1001- | |
| 32 | 7861-92-3360 | SENSOR,TEMPERATURE | 1001- | |
| 33 | 07002-01823 | O-RING (K3) | 1001- | |
| 34 | 562-15-25160 | ORIFICE | (1051)- | |
| 35 | 01010-81050 | BOLT | 1001- | |
| 36 | 01643-31032 | WASHER | 1001- |
