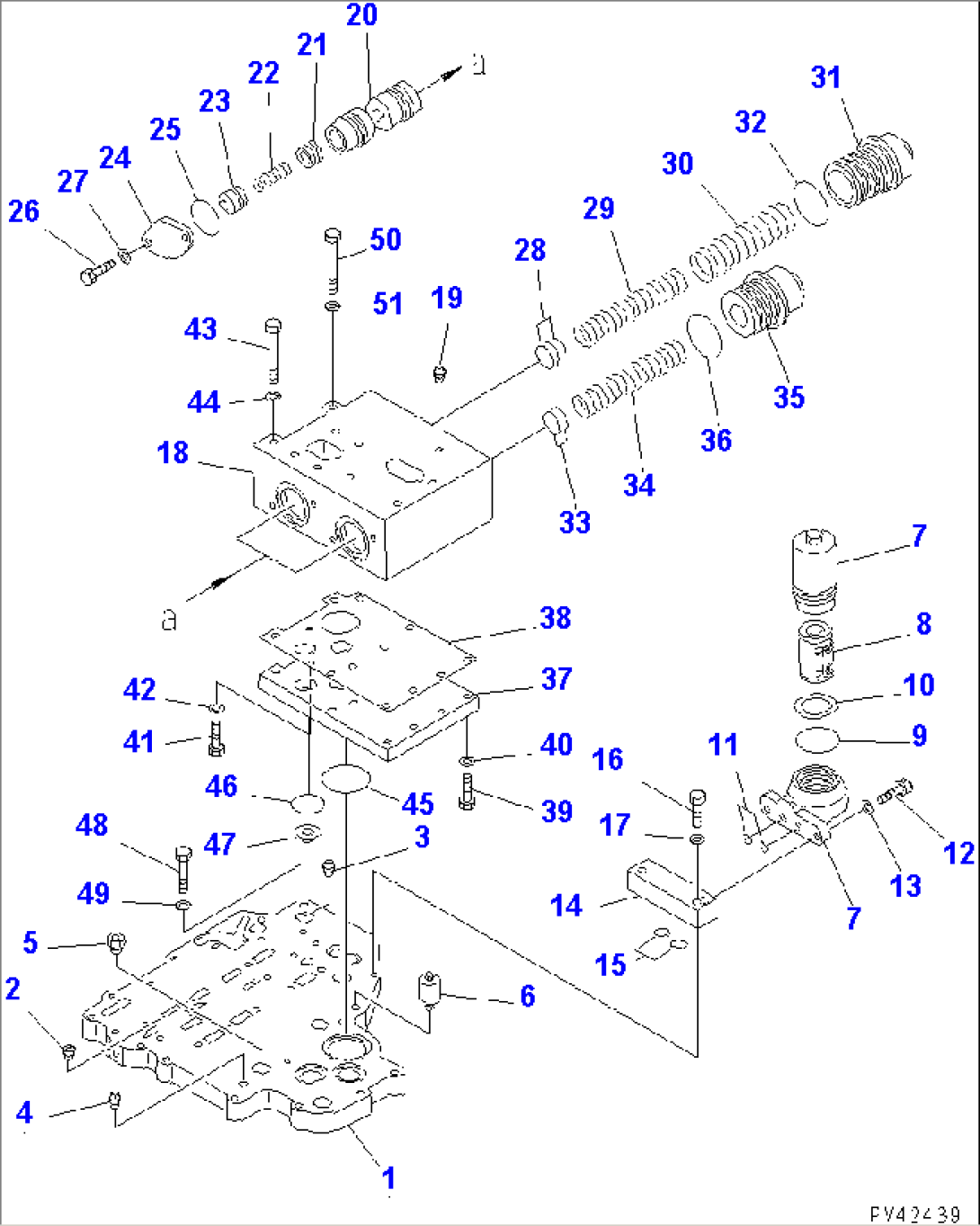

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (427-15-01001) | TORQFLOW ASS'Y | (1045)-(1100) | ||
| (\0\427-15-01000) | TORQFLOW ASS'Y | 10001-(1044) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-00013) | TRANSMISSION ASS'Y | (1144)- | ||
| (\0\427-15-00012) | TRANSMISSION ASS'Y | (1101)-(1143) | ||
| (427-15-00011) | TRANSMISSION ASS'Y | 10001-(1100) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||
| 427-15-00201 | CONTROL VALVE A. | (1101)- | ||
| 427-15-00200 | CONTROL VALVE A. | 10001-(1100) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2521 TO 2524. | ||||
| 427-15-00300 | VALVE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2523. | ||||
| 1 | 427-15-15130 | SEAT | 10001- | |
| 2 | 07043-00108 | PLUG | 10001- | |
| 3 | 07042-20108 | PLUG | 10001- | |
| 4 | 07042-20211 | PLUG | 10001- | |
| 5 | 170-21-11190 | NIPPLE | 10001- | |
| 6 | 07030-00252 | BREATHER | 10001- | |
| 7 | 426-15-16510 | FILTER ASS'Y | 10001- | |
| 8 | 209-38-12470 | ELEMENT | 10001- | |
| 9 | 209-38-12480 | O-RING | 10001- | |
| 10 | 209-38-12490 | RING,BACK-UP | 10001- | |
| 11 | 07000-72014 | O-RING (K4) | 10001- | |
| 12 | 01010-81030 | BOLT | (1144)- | |
| 01010-51035 | BOLT | 10001-(1143) | ||
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 427-15-15830 | SEAT | 10001- | |
| 15 | 07000-72021 | O-RING (K4) | 10001- | |
| 16 | 01010-51045 | BOLT | 10001- | |
| 17 | 01643-31032 | WASHER | 10001- | |
| 18 | 427-15-15220 | BODY,VALVE | 10001- | |
| 19 | 07042-20108 | PLUG | 10001- | |
| 20 | 427-15-15231 | VALVE | (1144)- | |
| 427-15-15230 | VALVE | 10001-(1143) | ||
| 21 | 427-15-15490 | VALVE | 10001- | |
| 22 | 427-15-16130 | SPRING,(L=53) | 10001- | |
| 23 | 427-15-15480 | VALVE | 10001- | |
| 24 | 427-15-15810 | PLATE | 10001- | |
| 25 | 07000-72060 | O-RING (K4) | (1310)- | |
| 07000-02060 | O-RING (K4) | 10001-(1309) | ||
| 26 | 01010-81030 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 427-15-16470 | SHIMä 0.5MM (K4) | 10001- | |
| 29 | 427-15-16110 | SPRING,(L=185) | 10001- | |
| 30 | 427-15-16120 | SPRING,(L=160) | 10001- | |
| 31 | 427-15-15820 | PLUG | 10001- | |
| 32 | 427-15-15910 | O-RING (K4) | 10001- | |
| 33 | 427-15-16470 | SHIMä 0.5MM (K4) | 10001- | |
| 34 | 427-15-16140 | SPRING,(L=206.5) | 10001- | |
| 35 | 427-15-15850 | PLUG | 10001- | |
| 36 | 427-15-15910 | O-RING (K4) | 10001- | |
| 37 | 427-15-15140 | SEAT,VALVE | 10001- | |
| 38 | 427-15-15921 | GASKET (K4) | (1208)- | |
| \0\427-15-15920 | GASKET (K4) | 10001-(1207) | ||
| 39 | 01010-81040 | BOLT | 10001- | |
| 40 | 01643-31032 | WASHER | 10001- | |
| 41 | 01252-41025 | BOLT | 10001- | |
| 42 | 01602-21030 | WASHER,SPRING | 10001- | |
| 43 | 01011-81035 | BOLT | 10001- | |
| 44 | 01643-31032 | WASHER | 10001- | |
| 45 | 07000-72060 | O-RING (K4) | (1310)- | |
| 07000-02060 | O-RING (K4) | 10001-(1309) | ||
| 46 | 07000-73035 | O-RING (K4) | 10001- | |
| 47 | 427-15-15840 | PLUG | 10001- | |
| 48 | 01010-81050 | BOLT | 10001- | |
| 49 | 01643-31032 | WASHER | 10001- | |
| 50 | 01011-81065 | BOLT | 10001- | |
| 51 | 01643-31032 | WASHER | 10001- |
