| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (428-15-00011) | TRANSMISSION ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2525. | ||||

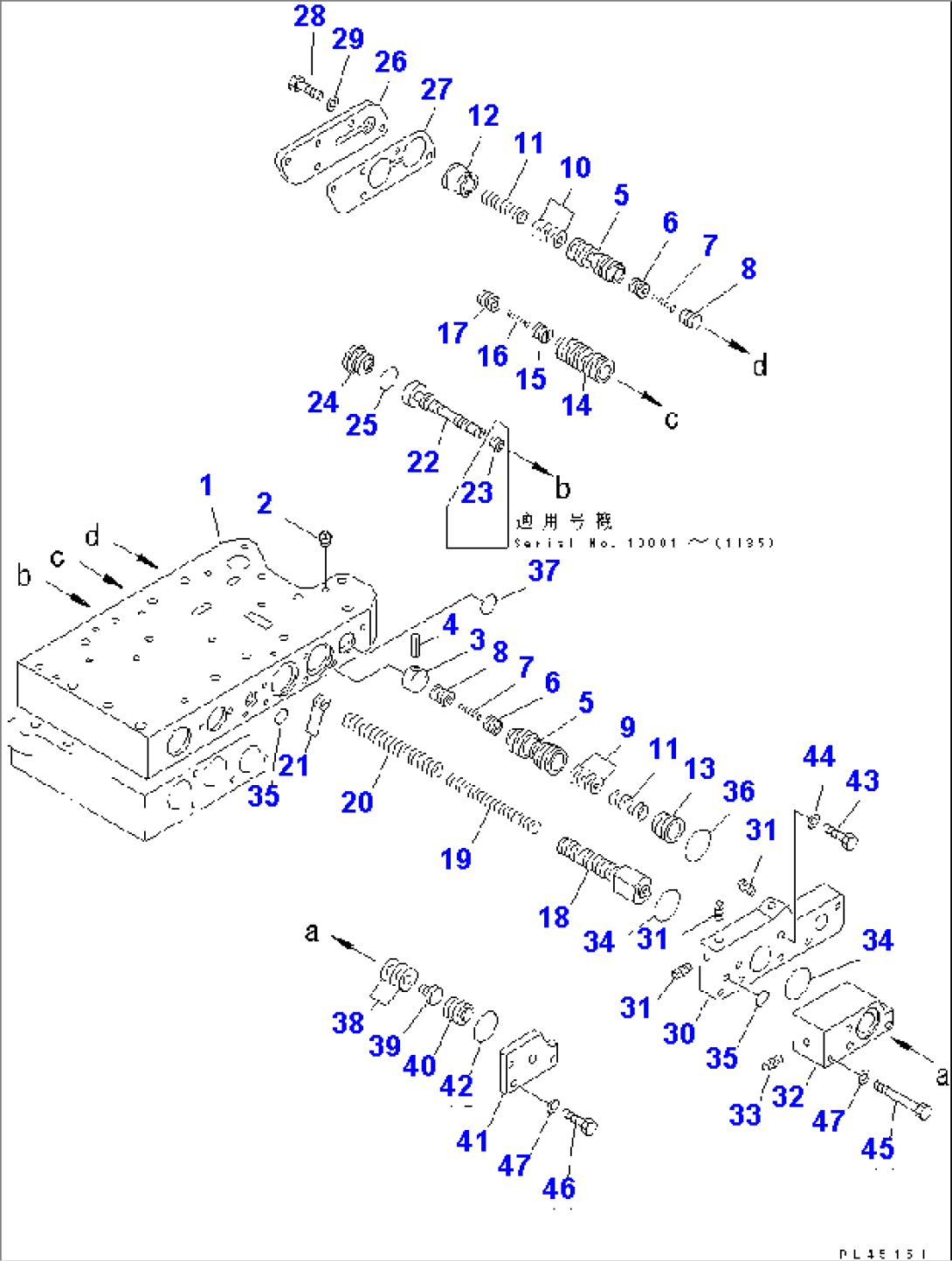

| 428-15-00110 | CONTROL VALVE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2525. | ||||
| 428-15-00250 | BODY ASS'Y | 10001- | ||
| 1 | \6\ | BODY,VALVE | 10001- | |
| 2 | 07042-30108 | PLUG | 10001- | |
| 3 | 424-15-15650 | STOPPER | 10001- | |
| 4 | 04025-00640 | PIN,SPRING | 10001- | |
| 5 | 425-15-15220 | VALVE | 10001- | |
| 6 | 104-15-25490 | VALVE | 10001- | |
| 7 | 125-15-15290 | SPRING | 10001- | |
| 8 | 104-15-25480 | VALVE | 10001- | |
| 9 | 113-15-25260 | SHIM¤ 0.5MM | 10001- | |
| 10 | 113-15-25260 | SHIM¤ 0.5MM | 10001- | |
| 11 | 104-15-25290 | SPRING¤ (L= 62.0) | 10001- | |
| 12 | 424-15-15490 | GUIDE | 10001- | |
| 13 | 425-15-15480 | GUIDE | 10001- | |
| 14 | 424-15-15240 | VALVE | 10001- | |
| 15 | 104-15-25490 | VALVE | 10001- | |
| 16 | 125-15-15290 | SPRING | 10001- | |
| 17 | 104-15-25480 | VALVE | 10001- | |
| 18 | 428-15-15560 | VALVE | 10001- | |
| 19 | 428-15-16170 | SPRING,(L= 159) | 10001- | |
| 20 | 428-15-16160 | SPRING,(L= 161) | 10001- | |
| 21 | 113-15-25260 | SHIM¤ 0.5MM | 10001- | |
| 22 | 428-15-15630 | VALVE | (1136)- | |
| \0\428-15-00270 | VALVE ASS'Y | 10001-(1135) | ||
| \6\ | VALVE | 10001-(1135) | ||
| 23 | 125-15-11230 | PLUG | 10001-(1135) | |
| 24 | 424-15-15290 | STOPPER | 10001- | |
| 25 | 07000-72021 | O-RING (K4) | 10001- | |
| 26 | 424-15-15860 | COVER | 10001- | |
| 27 | 424-15-15931 | GASKET (K4) | (1103)- | |
| \0\424-15-15930 | GASKET (K4) | 10001-(1102) | ||
| 28 | 01010-50820 | BOLT | 10001- | |
| 29 | 01643-30823 | WASHER | 10001- | |
| 30 | 428-15-15520 | COVER | 10001- | |
| 31 | 07043-00108 | PLUG | 10001- | |
| 32 | 428-15-15510 | BODY,VALVE | 10001- | |
| 33 | 07042-20108 | PLUG | 10001- | |
| 34 | 07000-73035 | O-RING (K4) | 10001- | |
| 35 | 07000-72015 | O-RING (K4) | 10001- | |
| 36 | 07000-73030 | O-RING (K4) | 10001- | |
| 37 | 07000-72021 | O-RING (K4) | 10001- | |
| 38 | 125-15-36480 | SHIM¤ 0.5MM | 10001- | |
| 39 | 561-15-15530 | VALVE | 10001- | |
| 40 | 428-15-15540 | VALVE | 10001- | |
| 41 | 428-15-15530 | COVER | 10001- | |
| 42 | 07000-73030 | O-RING (K4) | 10001- | |
| 43 | 01010-50835 | BOLT | 10001- | |
| 44 | 01643-30823 | WASHER | 10001- | |
| 45 | 23A-15-11260 | BOLT | 10001- | |
| 46 | 125-15-36410 | BOLT | 10001- | |
| 47 | 01643-30823 | WASHER | 10001- |
