| Item | Part No. | Part Name | Qty | Serial No. |
| (415-15-11002) | TRANSMISSION ASS'Y | 12001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142A. | ||||

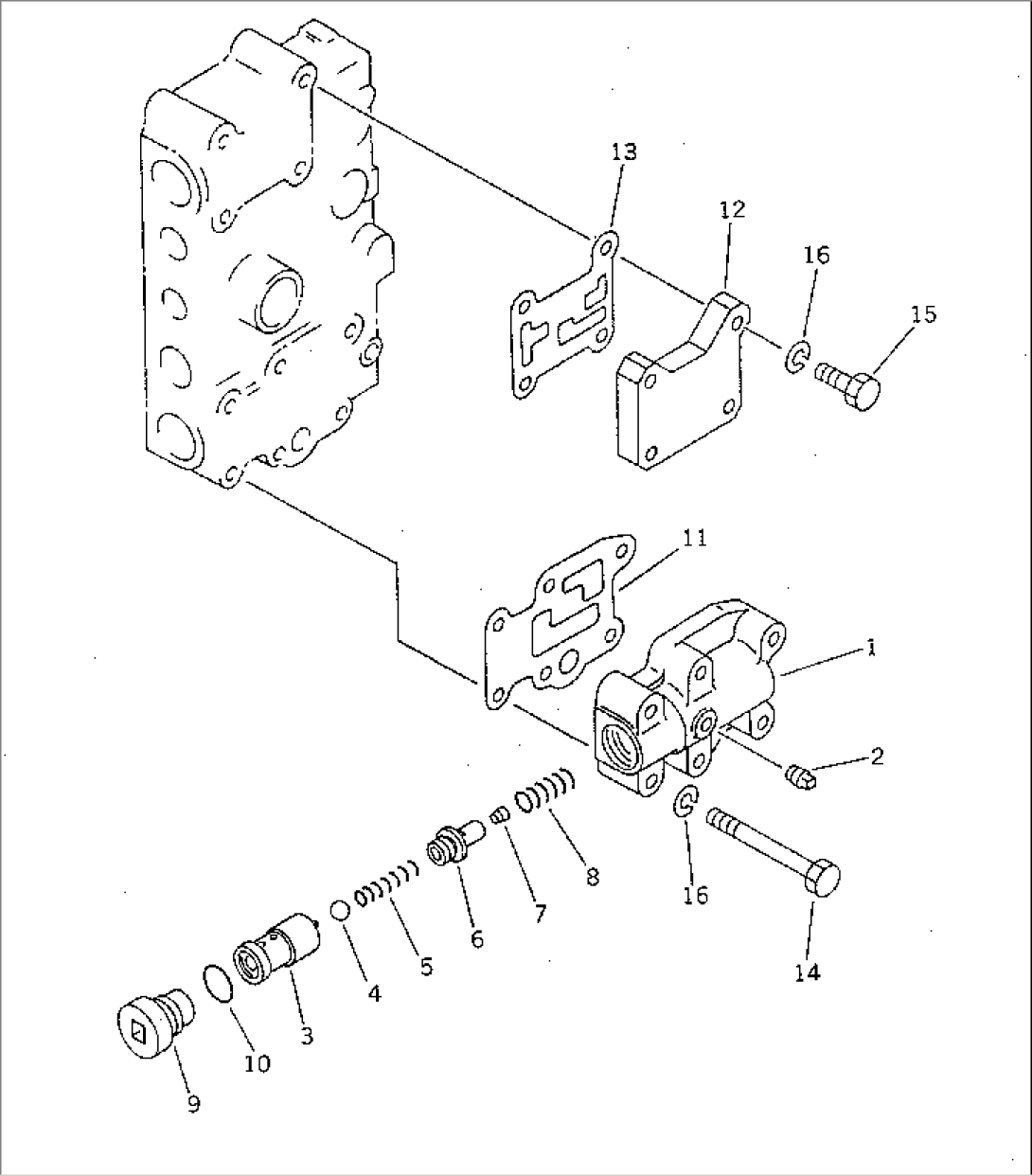

| (415-15-15004) | CONTROL VALVE ASS'Y | 12001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2141A AND 2142A. | ||||
| 1 | 415-15-15210 | BODY,VALVE | 10001- | |
| 2 | 07042-30108 | PLUG | 10001- | |
| 3 | 415-15-15671 | VALVE,CHECK | 10750- | |
| 4 | 04260-01270 | BALL | 10001- | |
| 5 | 419-15-15510 | SPRING,CHECK | 10001- | |
| 6 | 415-15-15660 | PLUG,VALVE | 10001- | |
| 7 | 415-15-15430 | PLUG | 10001- | |
| 8 | 417-15-15470 | SPRING,DUMP | 10102- | |
| 9 | 415-15-15290 | PLUG | 10001- | |
| 10 | 07002-03034 | O-RING (K2) | 10001- | |
| 11 | 415-15-15220 | GASKET (K2) | 10001- | |
| 12 | 417-15-15190 | COVER,VALVE | 12001- | |
| 13 | 415-15-15320 | GASKET (K2) | 10001- | |
| 14 | 01011-31015 | BOLT | 12001- | |
| 15 | 01010-61095 | BOLT | 12001- | |
| 16 | 01602-21030 | WASHER,SPRING | 10001- |
