| Item | Part No. | Part Name | Qty | Serial No. |
| (428-15-00011) | TRANSMISSION ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2525. | ||||

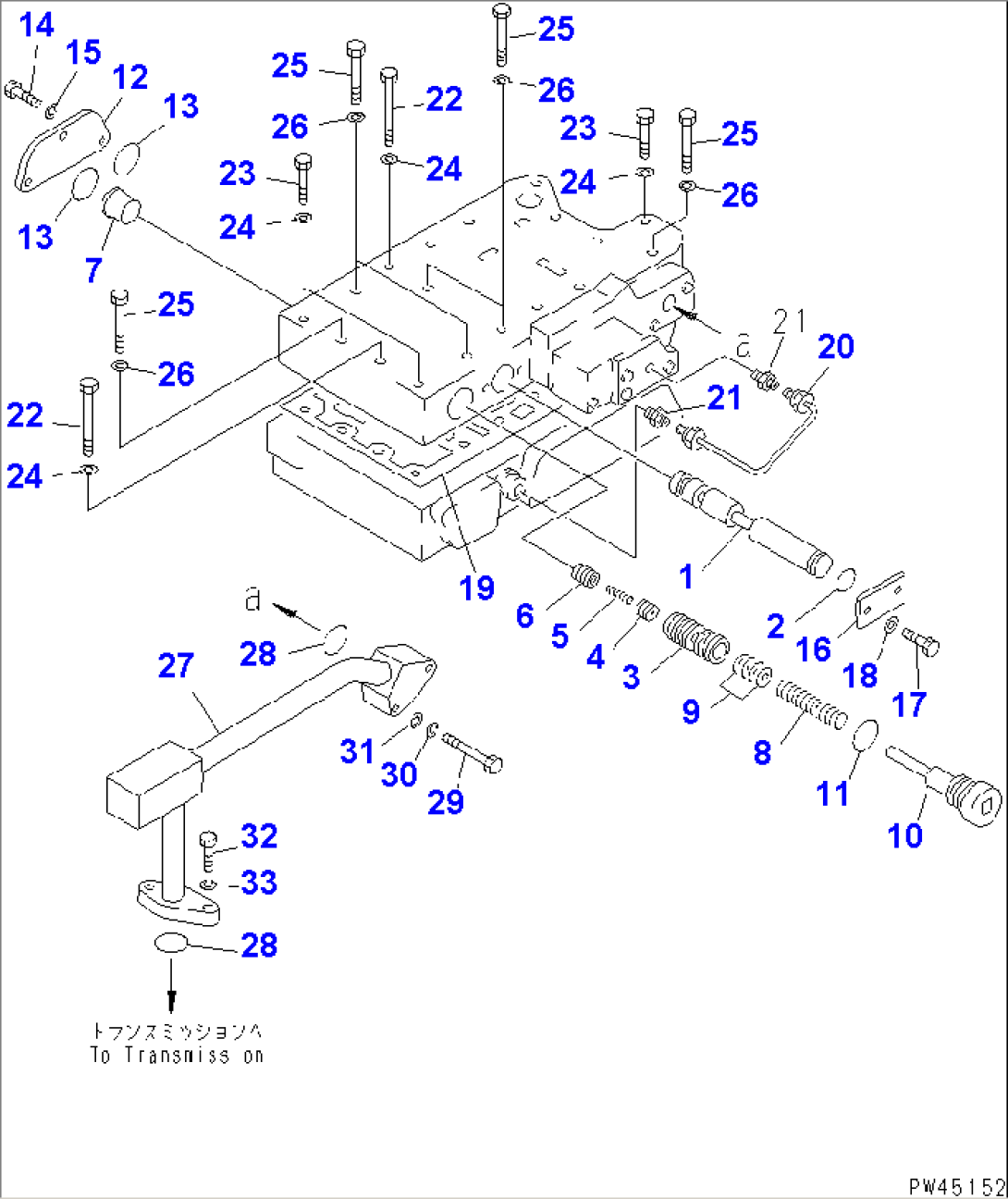

| (428-15-00110) | CONTROL VALVE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2525. | ||||
| 1 | 424-15-15711 | SPACER | 10001- | |
| 2 | 07000-72021 | O-RING (K4) | 10001- | |
| 3 | 424-15-15340 | VALVE | 10001- | |
| 4 | 104-15-25490 | VALVE | 10001- | |
| 5 | 125-15-15290 | SPRING | 10001- | |
| 6 | 104-15-25480 | VALVE | 10001- | |
| 7 | 425-15-15490 | GUIDE | 10001- | |
| 8 | 428-15-15330 | SPRING | 10001- | |
| 9 | 113-15-25260 | SHIM¤ 0.5MM | 10001- | |
| 10 | 425-15-15510 | PLUG | 10001- | |
| 11 | 07002-03034 | O-RING (K4) | 10001- | |
| 12 | 424-15-15880 | COVER | 10001- | |
| 13 | 07000-73030 | O-RING (K4) | 10001- | |
| 14 | 01010-50820 | BOLT | 10001- | |
| 15 | 01643-30823 | WASHER | 10001- | |
| 16 | 424-15-15870 | PLATE | 10001- | |
| 17 | 01010-50820 | BOLT | 10001- | |
| 18 | 01643-30823 | WASHER | 10001- | |
| 19 | 428-15-15980 | GASKET (K4) | 10001- | |
| 20 | 428-15-15550 | TUBE | 10001- | |
| 21 | 07213-50710 | CONNECTOR | 10001- | |
| 22 | 01010-51070 | BOLT | 10001- | |
| 23 | 01011-51025 | BOLT | 10001- | |
| 24 | 01643-31032 | WASHER | 10001- | |
| 25 | 01011-81050 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- | |
| 27 | 426-15-15950 | TUBE | 10001- | |
| 28 | 07000-73025 | O-RING (K4) | 10001- | |
| 29 | 01010-50875 | BOLT | 10001- | |
| 30 | 01602-20825 | WASHER,SPRING | 10001- | |
| 31 | 01643-30823 | WASHER | 10001- | |
| 32 | 01010-51030 | BOLT | 10001- | |
| 33 | 01602-21030 | WASHER,SPRING | 10001- |
