| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (569-15-41003) | TRANSMISSION ASS'Y | (4002)- | ||
| (569-15-41002) | TRANSMISSION ASS'Y | 1055-(4001) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2531. | ||||
| (566-15-01173) | CONTROL VALVE ASS'Y | (3998)- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2523. | ||||

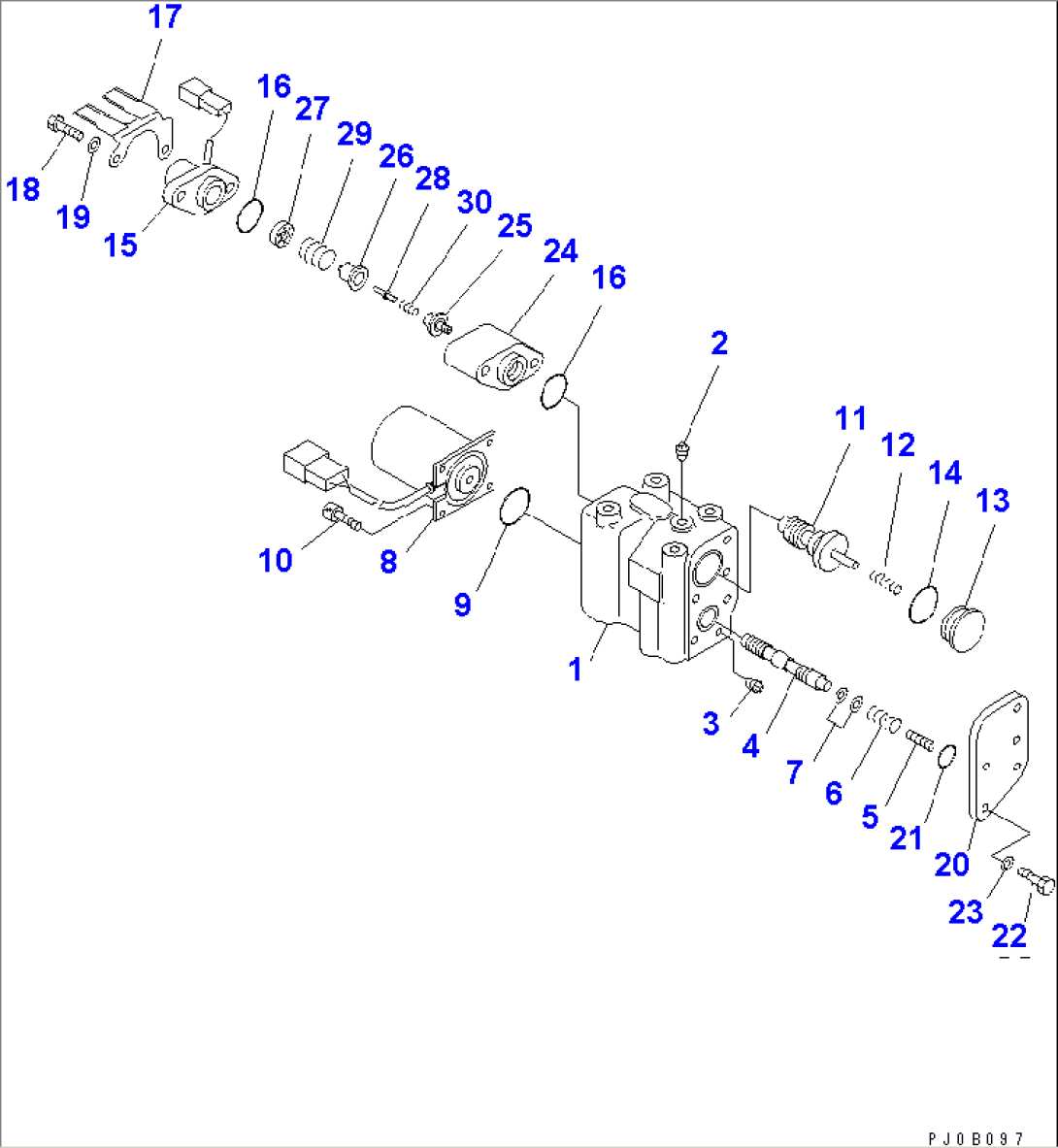

| 561-15-55400 | ECMV ASS'Y | (3998)- | ||
| 1 | \6\ | BODY,VALVE | 1001- | |
| 2 | 07042-20108 | PLUG | 1001- | |
| 3 | 07043-00108 | PLUG | 1001- | |
| 4 | 561-15-55511 | VALVE | 1001- | |
| 5 | 561-15-55530 | PISTON | 1001- | |
| 6 | 561-15-55570 | SPRING,(L=16.2) | 1001- | |
| 7 | 561-15-55630 | SHIM, 0.2MM | 1001- | |
| 8 | 569-15-45610 | SOLENOID VALVE | 1001- | |
| 9 | 07000-73035 | O-RING (K6B) | 1001- | |
| 10 | 01252-40612 | BOLT | 1001- | |
| 11 | 561-15-55520 | VALVE | 1001- | |
| 12 | 561-15-55591 | SPRING,(L=33.5) | 1001- | |
| 13 | 561-15-55541 | PLUG | 1001- | |
| 14 | 07000-73025 | O-RING (K6B) | 1001- | |
| 15 | 7861-92-5701 | SWITCH ASS'Y | (3998)- | |
| 16 | 07000-73028 | O-RING (K6B) | 1001- | |
| 17 | 561-15-55790 | BRACKET | (3998)- | |
| 18 | 01010-80860 | BOLT | (3998)- | |
| 19 | 01643-30823 | WASHER | 1001- | |
| 20 | 561-15-55561 | PLATE | 1001- | |
| 21 | 07000-72018 | O-RING (K6B) | 1001- | |
| 22 | 01010-80820 | BOLT | 1001- | |
| 23 | 01643-30823 | WASHER | 1001- | |
| 24 | 561-15-55710 | BODY | (3998)- | |
| 25 | 561-15-55720 | SLEEVE | (3998)- | |
| 26 | 561-15-55730 | SEAT | (3998)- | |
| 27 | 561-15-55740 | SPACER | (3998)- | |
| 28 | 561-15-55750 | PIN | (3998)- | |
| 29 | 561-15-55760 | SPRING | (3998)- | |
| 30 | 561-15-55770 | SPRING | (3998)- |
