| Item | Part No. | Part Name | Qty | Serial No. |
| (427-15-00013) | TRANSMISSION ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2534. | ||||
| (427-15-00201) | CONTROL VALVE A. | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2531 TO 2534. | ||||

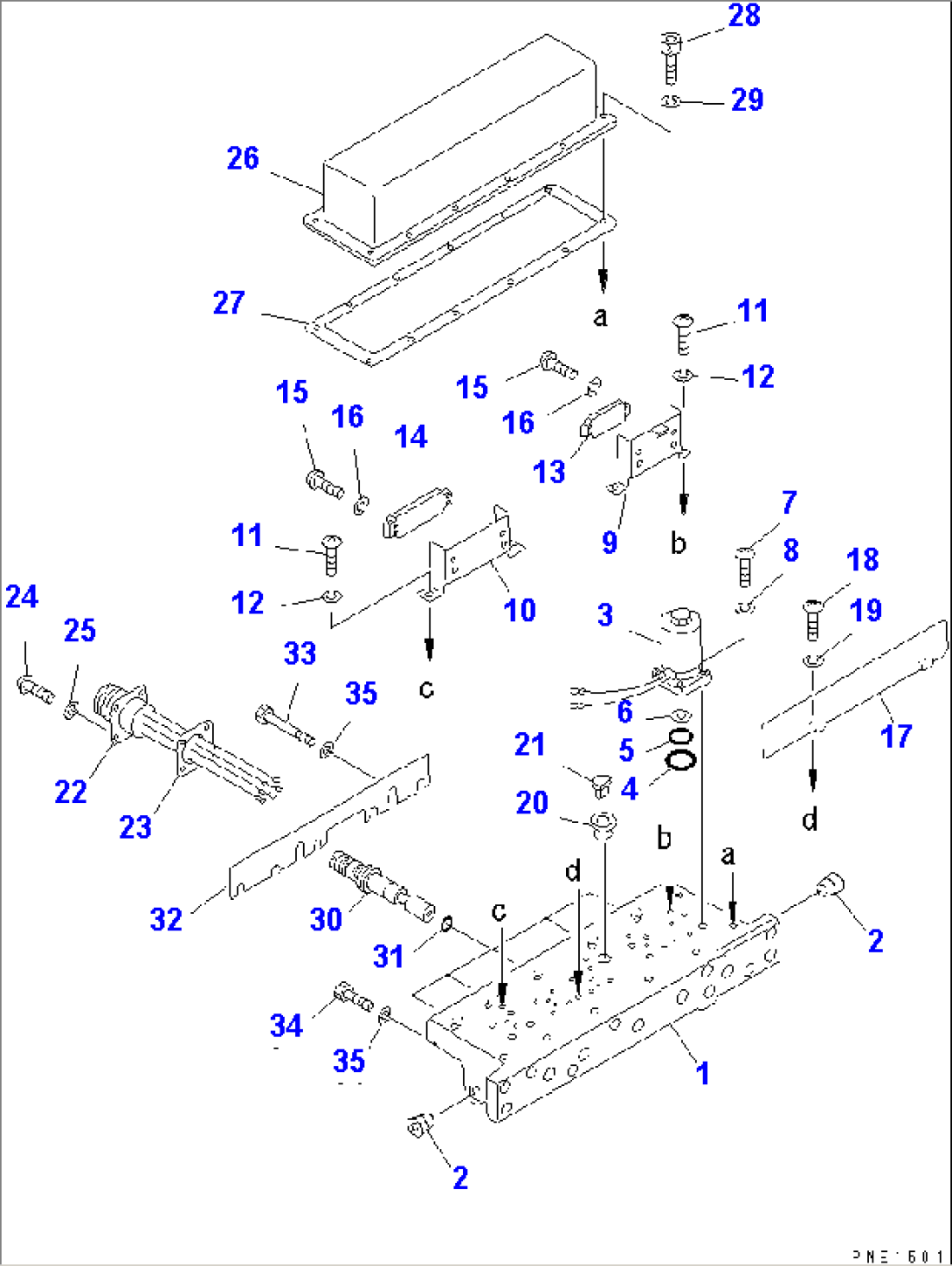

| 427-15-00401 | VALVE ASS'Y,SOLENOID | 10001- | ||
| 1 | 427-15-17110 | SEAT | 10001- | |
| 2 | 07043-50211 | PLUG | 10001- | |
| 3 | 561-15-47210 | VALVE,SOLENOID | 10001- | |
| 4 | 568-15-17260 | O-RING | 10001- | |
| 5 | 07000-31006 | O-RING | 10001- | |
| 6 | 561-15-47230 | SCREEN | 10001- | |
| 7 | 01220-40416 | SCREW | 10001- | |
| 8 | 01601-20410 | WASHER,SPRING | 10001- | |
| 9 | 195-15-37150 | STAND | 10001- | |
| 10 | 195-15-37170 | STAND | 10001- | |
| 11 | 01220-40412 | SCREW | 10001- | |
| 12 | 01601-20410 | WASHER,SPRING | 10001- | |
| 13 | 19M-15-17170 | TERMINAL | 10001- | |
| 14 | 235-15-17260 | TERMINAL | 10001- | |
| 15 | 01220-40310 | SCREW | 10001- | |
| 16 | 01601-20307 | WASHER,SPRING | 10001- | |
| 17 | 195-15-37160 | PROTECTOR | 10001- | |
| 18 | 01220-40412 | SCREW | 10001- | |
| 19 | 01601-20410 | WASHER,SPRING | 10001- | |
| 20 | 568-15-15960 | BUSHING | 10001- | |
| 21 | 568-15-15970 | PAD | 10001- | |
| 22 | 427-15-17212 | WIRE ASS'Y | 10001- | |
| 23 | 424-15-17230 | GASKET (K4) | 10001- | |
| 24 | 01220-40310 | SCREW | 10001- | |
| 25 | 01601-20307 | WASHER,SPRING | 10001- | |
| 26 | 195-15-37130 | COVER | 10001- | |
| 27 | 195-15-37140 | GASKET (K4) | 10001- | |
| 28 | 01252-40616 | BOLT | 10001- | |
| 29 | 01602-20619 | WASHER,SPRING | 10001- | |
| 30 | 195-15-37310 | SPOOL | 10001- | |
| 31 | 07000-71009 | O-RING (K4) | 10001- | |
| 32 | 195-15-37340 | PLATE | 10001- | |
| 33 | 01011-51030 | BOLT | 10001- | |
| 34 | 01010-51030 | BOLT | 10001- | |
| 35 | 01643-31032 | WASHER | 10001- |
