| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 714-15-10004 | TRANSMISSION ASS'Y | (54021)- | ||
| 714-15-10003 | TRANSMISSION ASS'Y | (53782)-(54020) | ||
| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-67A1. | ||||
| 714-11-15031 | VALVE ASS'Y | (54021)- | ||
| 714-11-15030 | CONTROL VALVE ASS'Y,T/M ASSY | (53858)-(54020) | ||
| 714-11-16200 | VALVE ASS'Y,LOWER ASS | (53858)- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A1A AND 62A1A. | ||||

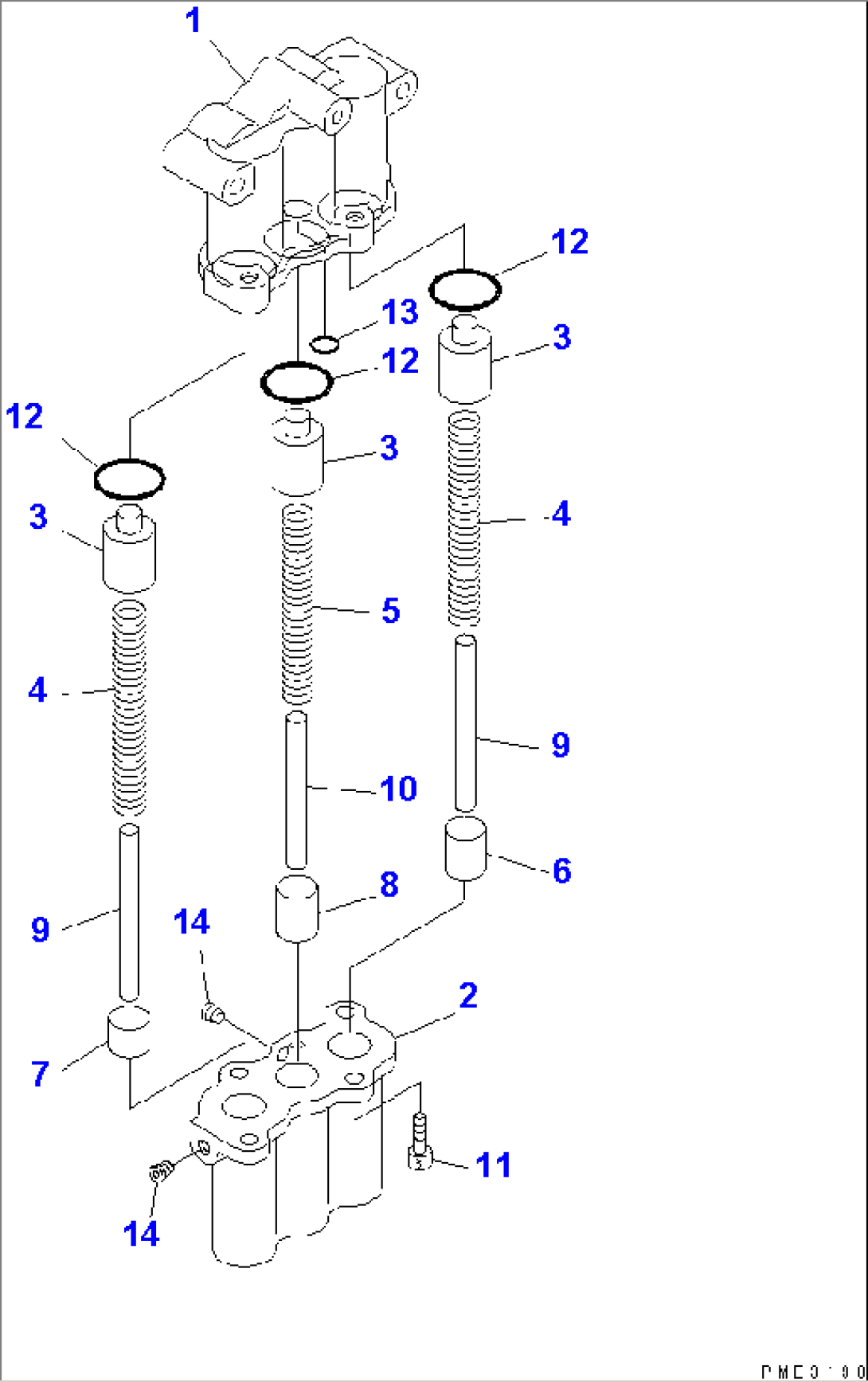

| 714-11-16900 | VALVE ASS'Y,SOLENOID | (53858)- | ||
| 1 | 714-11-16800 | BODY ASS'Y,SOLENOID | (53858)- | |
| 2 | 714-11-16830 | SOLENOID VALVE,SOLENOID | (53858)- | |
| 2A | 714-11-16850 | O-RING (K2) | (53858)- | |
| 2B | 07000-E2016 | O-RING (K2) | (53858)- | |
| 3 | 714-11-16840 | SOLENOID VALVE,SOLENOID | (53858)- | |
| 3A | 714-11-16850 | O-RING (K2) | (53858)- | |
| 3B | 07000-E2016 | O-RING (K2) | (53858)- | |
| 4 | 714-11-16811 | BRACKET | (53858)- | |
| 5 | 01010-80816 | BOLT | 63001- | |
| 6 | 01643-30823 | WASHER | 63001- | |
| 6A | 08034-00414 | BAND | (53904)- | |
| 7 | 01010-81085 | BOLT | (53858)- | |
| 8 | 01011-81015 | BOLT | (53858)- | |
| 9 | 01011-81015 | BOLT | (53858)- | |
| 10 | 01010-81085 | BOLT | (53858)- | |
| 11 | 01010-81085 | BOLT | (53858)- | |
| 12 | 01643-31032 | WASHER | (53858)- | |
| 13 | 195-30-34260 | WASHER | (53858)- | |
| 14 | 419-06-12840 | PLATE | 63001- | |
| 15 | 07043-70108 | PLUG | 63001- | |
| 16 | 419-15-16811 | GASKET,UPPER (K2) | 63001- | |
| 17 | 01010-80860 | BOLT | 63001- | |
| 18 | 01010-80875 | BOLT | 63001- | |
| 19 | 419-15-16660 | FILTER ASS'Y,PILOT | 63001- | |
| 419-15-16930 | ELEMENT,ELEMENT A | 63001- | ||
| 419-15-16940 | HEAD | 63001- | ||
| 419-15-16950 | O-RING | 63001- | ||
| 419-15-16960 | CASE,CASE | 63001- | ||
| 20 | 07000-02014 | O-RING (K2) | 63001- | |
| 21 | 01010-81035 | BOLT | 63001- | |
| 22 | 01602-01030 | WASHER | 63001- | |
| 23 | 01642-21016 | WASHER | 63001- |
