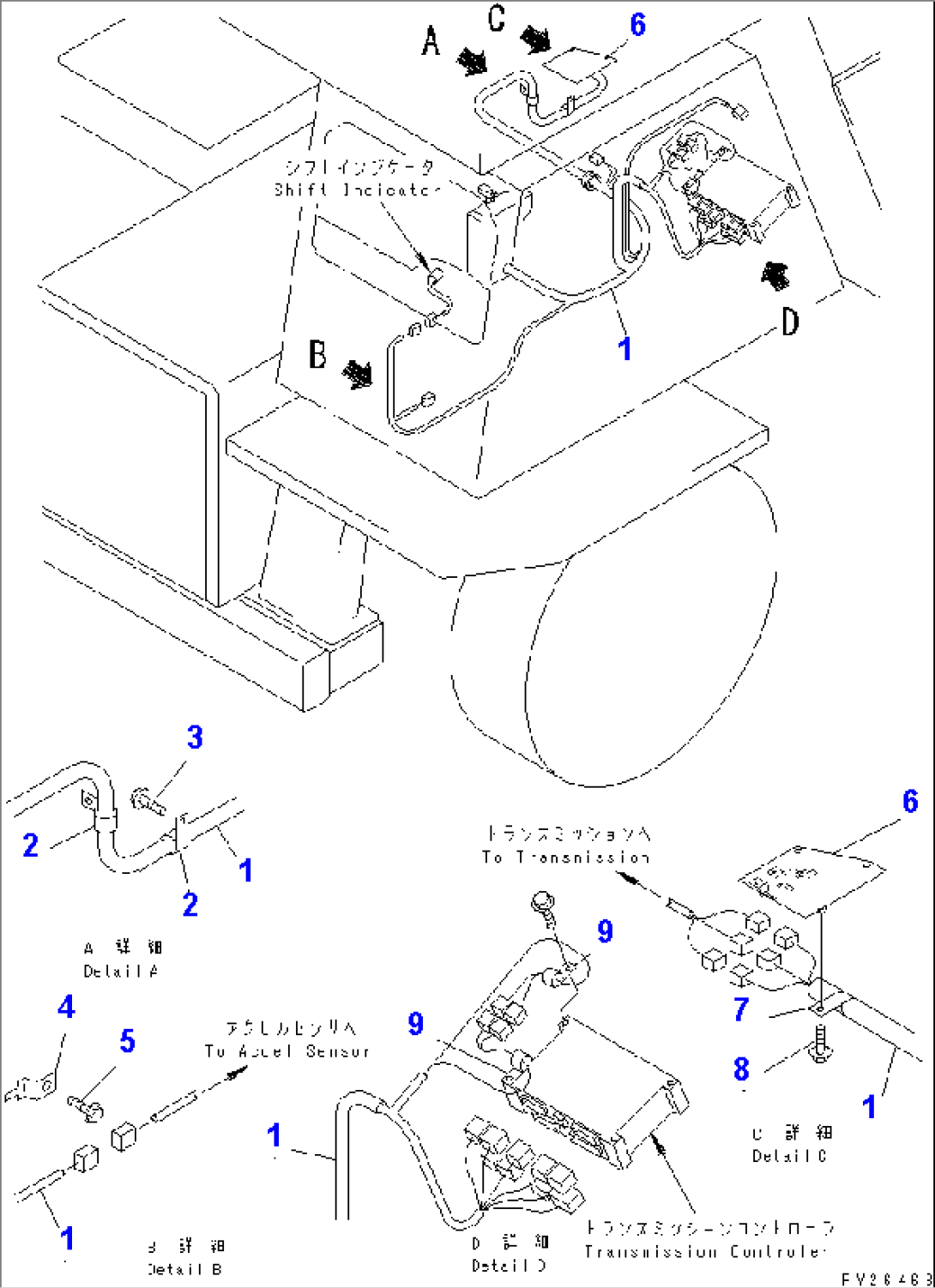

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-06-71120 | WIRING HARNESS | 1001-1200 | |
| 2 | 04434-52711 | CLIP | 1001-1200 | |
| 3 | 01435-01016 | BOLT | 1001-1200 | |
| 4 | 08053-01510 | CLIP | 1001-@ | |
| 5 | 01435-01016 | BOLT | 1001-@ | |
| 6 | 567-43-74210 | BRACKET | 1001-@ | |
| 7 | 04434-52711 | CLIP | 1001-1200 | |
| 8 | 01435-01016 | BOLT | 1001-@ | |
| 9 | 04434-50508 | CLIP | 1001-@ |
