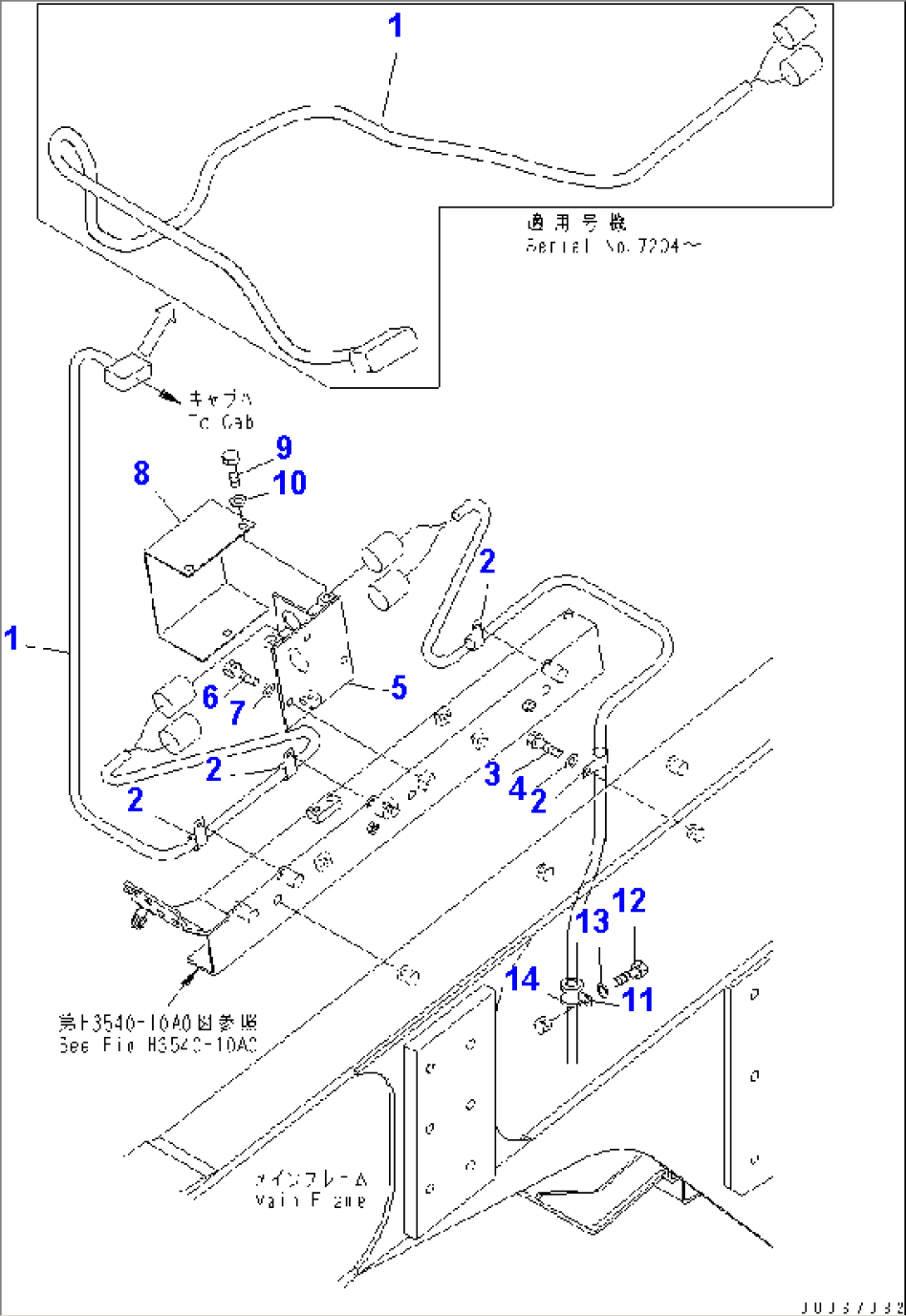

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-44-81112 | WIRING HARNESS | 7204- | |
| 1 | 566-44-81111 | WIRING HARNESS | 3001-7203 | |
| 2 | 04434-52210 | CLIP | 3001- | |
| 3 | 01010-81016 | BOLT | 3001- | |
| 4 | 01643-31032 | WASHER | 3001- | |
| 5 | 566-44-81210 | BRACKET | 3001- | |
| 6 | 01010-81016 | BOLT | 3001- | |
| 7 | 01643-31032 | WASHER | 3001- | |
| 8 | 566-44-6E121 | COVER | 3001- | |
| 9 | 01010-81016 | BOLT | 3001- | |
| 10 | 01643-31032 | WASHER | 3001- | |
| 11 | 04434-53212 | CLIP | 3001- | |
| 12 | 01010-81220 | BOLT | 3001- | |
| 13 | 01643-31232 | WASHER | 3001- | |
| 14 | 07095-20523 | CUSHION | 3001- |
