| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 714-07-30014 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30011 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30010 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0, 52A1, 53A0 TO 61A0, 58A1, 59A1, 62A1 TO 64A1. | ||||
| 714-07-30034 | TRANSMISSION ASS'Y | 85366-90000 | ||
| 714-07-30031 | TRANSMISSION ASS'Y | 85165-85365 | ||
| 714-07-30030 | TRANSMISSION ASS'Y | 85001-85164 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A2 TO F4350-64A1. | ||||
| (714-07-35012) | VALVE ASS'Y | (100666)-00090000 | ||
| (714-07-35011) | VALVE ASS'Y | 85165-(100665) | ||
| (714-07-35010) | VALVE ASS'Y | 85001-85164 | ||

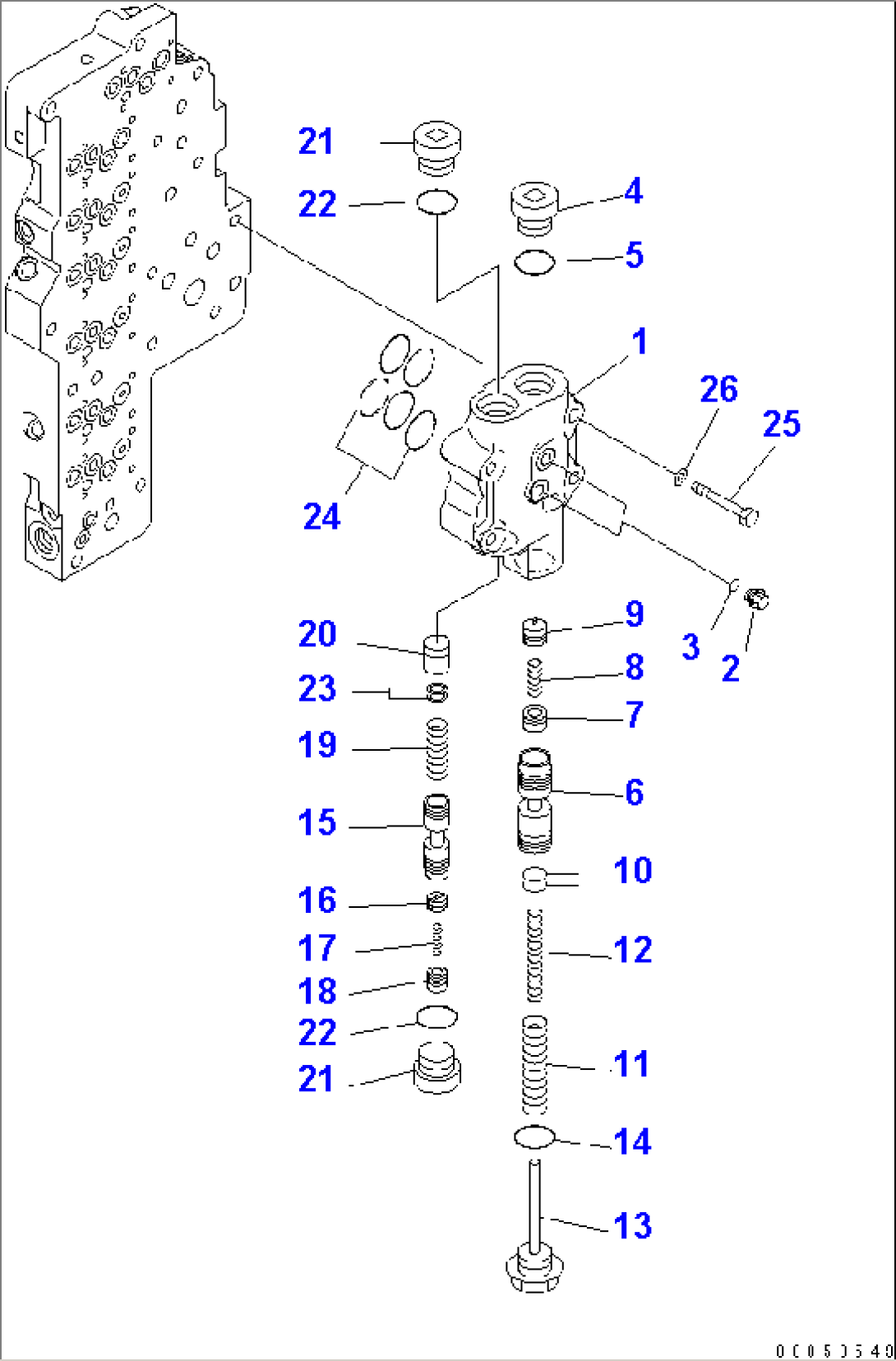

| 714-24-26001 | VALVE ASS'Y | 85001-90000 | ||
| 1 | \6\ | VALVE BODY | 85001-90000 | |
| 2 | 708-8E-16150 | PLUG | 85001-90000 | |
| 3 | 07002-61023 | O-RING (K2) | 85001-90000 | |
| 4 | 14X-15-15850 | PLUG | 85001-90000 | |
| 5 | 07002-63034 | O-RING (K2) | 85001-90000 | |
| 6 | \6\ | VALVE | 85001-90000 | |
| 7 | 426-15-15490 | VALVE | 85001-90000 | |
| 8 | 198-15-15770 | SPRING, (L= 30.0) | 85001-90000 | |
| 9 | 426-15-15480 | VALVE | 85001-90000 | |
| 10 | 198-15-15570 | SHIM, 0.50MM | 85001-90000 | |
| 11 | 426-15-16251 | SPRING, (L=122.0) | 85001-90000 | |
| 12 | 426-15-16261 | SPRING, (L=108.0) | 85001-90000 | |
| 13 | 426-15-15810 | PLUG | 85001-90000 | |
| 14 | 07002-63034 | O-RING (K2) | 85001-90000 | |
| 15 | \6\ | SPOOL | 85001-90000 | |
| 16 | 104-15-25490 | VALVE | 85001-90000 | |
| 17 | 125-15-15290 | SPRING | 85001-90000 | |
| 18 | 104-15-25480 | VALVE | 85001-90000 | |
| 19 | 14X-15-16210 | SPRING | 85001-90000 | |
| 20 | 12H-15-14140 | GUIDE | 85001-90000 | |
| 21 | 14X-15-15850 | PLUG | 85001-90000 | |
| 22 | 07002-63034 | O-RING (K2) | 85001-90000 | |
| 23 | 175-15-56470 | SHIM, 0.50MM | 85001-90000 | |
| 24 | 07000-73030 | O-RING (K2) | 85001-90000 | |
| 25 | 01010-81065 | BOLT | 85001-90000 | |
| 26 | 01643-31032 | WASHER | 85001-90000 |
