| Item | Part No. | Part Name | Qty | Serial No. |
| (104-15-00080) | TRANSMISSION ASS'Y | 64856- | ||
| (\0\104-15-00040) | TRANSMISSION ASS'Y | 60001-64855 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2517 AND 2553, 2563. | ||||
| (104-15-00510) | TRANSMISSION ASS'Y | 64856- | ||
| (\0\104-15-00410) | TRANSMISSION ASS'Y | 60001-64855 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517. | ||||

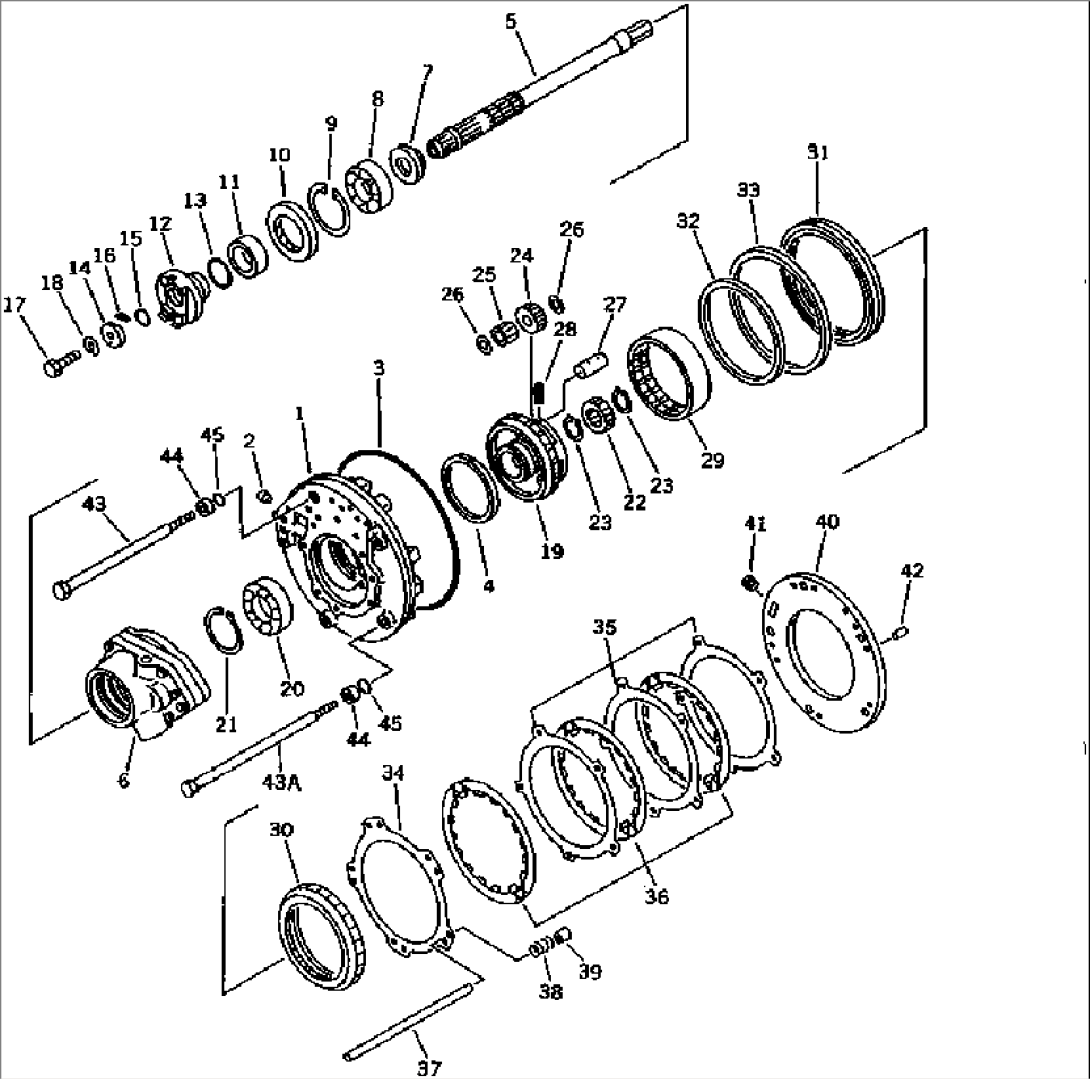

| 104-15-00160 | HOUSING ASS'Y,REVERSE | 60001- | ||
| 1 | \6\ | HOUSING | 60001- | |
| 2 | 07043-00108 | PLUG | 60001- | |
| 3 | 07000-05270 | O-RING | 60001- | |
| 4 | 07018-01305 | RING,SEAL | 60001- | |
| 5 | 104-15-22111 | SHAFT | 60001- | |
| 6 | (113-15-00470) | PUMP ASS'Y | 60001- | |
| 7 | 113-15-22140 | SPACER | 60001- | |
| 8 | 06000-06010 | BEARING | 60001- | |
| 9 | 04065-08025 | RING,SNAP | 60001- | |
| 10 | 07012-10065 | SEAL,OIL | 60001- | |
| 11 | 104-15-22180 | COLLAR | 60001- | |
| 12 | 104-15-22190 | COUPLING | 60001- | |
| 13 | 07000-22055 | O-RING | 60001- | |
| 14 | 103-15-12160 | HOLDER | 60001- | |
| 15 | 07000-73025 | O-RING | 60001- | |
| 16 | 04010-00300 | KEY | 60001- | |
| 17 | 01010-51025 | BOLT | 60001- | |
| 18 | 01653-21012 | WASHER,LOCK | 60001- | |
| 19 | 104-15-32310 | CARRIER | 64856- | |
| 19 | 104-15-22310 | CARRIER | 60001-64855 | |
| 20 | 06000-06913 | BEARING | 60001- | |
| 21 | 04064-06525 | RING,SNAP | 60001- | |
| 22 | 104-15-22210 | GEAR | 60001- | |
| 23 | 113-15-22950 | RING,SNAP | 60001- | |
| 24 | 104-15-32420 | GEAR | 64856- | |
| 24 | 104-15-22410 | GEAR | 60001-64855 | |
| 25 | 104-15-39420 | BEARING,NEEDLE | 64856- | |
| 25 | 103-15-29420 | BEARING,NEEDLE | 60001-64855 | |
| 26 | 104-15-32560 | WASHER | 64856- | |
| 26 | 113-15-22560 | WASHER | 60001-64855 | |
| 27 | 104-15-32510 | SHAFT | 64856- | |
| 27 | 103-15-22510 | SHAFT | 60001-64855 | |
| 28 | 113-15-29560 | PIN,SPRING | 60001- | |
| 29 | 104-15-32610 | GEAR,RING | 64856- | |
| 29 | 104-15-22610 | GEAR,RING | 60001-64855 | |
| 30 | 104-15-22620 | GEAR,RING | 60001- | |
| 31 | 103-15-22750 | PISTON,REVERSE | 60001- | |
| 32 | 103-15-29260 | SEAL,RING | 60001- | |
| 33 | 113-15-29250 | RING,SEAL | 60001- | |
| 34 | 113-15-22720 | PLATE | 60001- | |
| 35 | 113-15-22730 | PLATE | 60001- | |
| 36 | 113-15-42711 | DISC | 62977- | |
| 36 | 113-15-42710 | DISC | 60001-62976 | |
| 37 | 362-15-11270 | PIN | 64856- | |
| 37 | 104-15-21270 | PIN | 60001-64855 | |
| 38 | 104-15-32910 | SPRING | 60001- | |
| 39 | 362-15-12820 | SPACER | 60001- | |
| 104-15-00630 | PLATE ASS'Y | 60001- | ||
| 40 | \6\ | PLATE | 60001- | |
| 41 | 125-15-11230 | PLUG | 60001- | |
| 42 | 113-15-21290 | PIN,DOWEL | 60001- | |
| 43 | 104-15-21240 | BOLT | 60001- | |
| 43A | 103-15-31250 | BOLT | 64856- | |
| 43A | 104-15-21240 | BOLT | 60001-64855 | |
| 44 | 113-15-21260 | WASHER | 60001- | |
| 45 | 07000-01008 | O-RING | 60001- |
