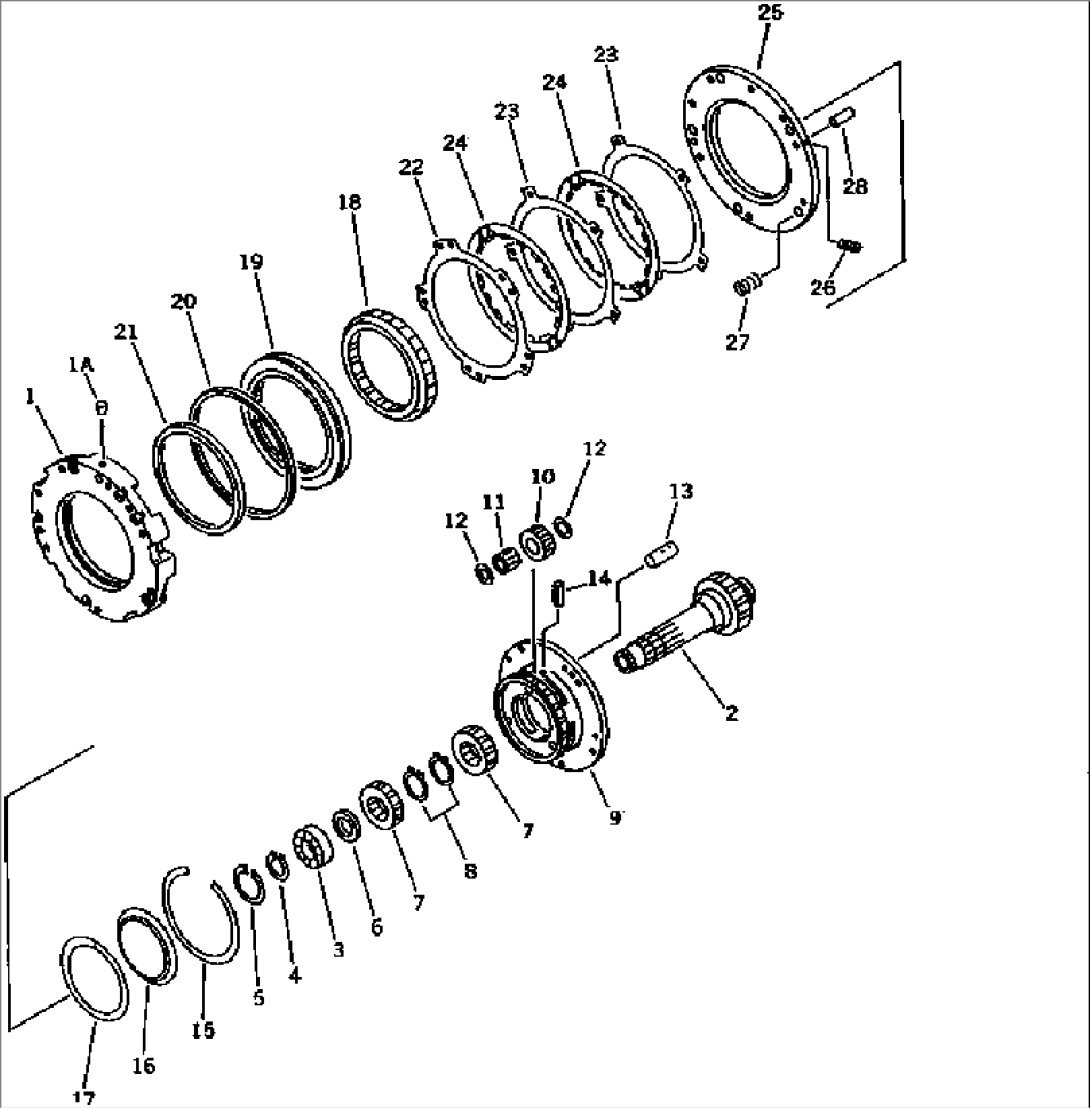

| Item | Part No. | Part Name | Qty | Serial No. |
| (104-15-00080) | TRANSMISSION ASS'Y | 64856- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2511 TO 2517 AND 2553, 2563. | ||||
| (104-15-00510) | TRANSMISSION ASS'Y | 64856- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517. | ||||
| 104-15-00550 | HOUSING ASS'Y,2ND | 64856- | ||
| 1 | \6\ | HOUSING,2ND | 64856- | |
| 1A | 113-15-25490 | PLUG | 64856- | |
| 2 | 104-15-22131 | SHAFT | 60001- | |
| 3 | 06000-06007 | BEARING | 60001- | |
| 4 | 04064-03515 | RING,SNAP | 60001- | |
| 5 | 04065-06220 | RING,SNAP | 60001- | |
| 6 | 104-15-22170 | SPACER | 60001- | |
| 7 | 103-15-22230 | GEAR | 60001- | |
| 8 | 103-15-29510 | RING,SNAP | 60001- | |
| 9 | 104-15-32330 | CARRIER | 64856- | |
| 10 | 103-15-22420 | GEAR | 60001- | |
| 11 | 103-15-29420 | BEARING | 60001- | |
| 12 | 113-15-22560 | WASHER | 60001- | |
| 13 | 104-15-32510 | SHAFT | 64856- | |
| 14 | 113-15-29560 | PIN,SPRING | 60001- | |
| 15 | 113-15-29510 | RING,SNAP | 60001- | |
| 16 | 113-15-22380 | COVER | 60001- | |
| 17 | 113-15-22930 | RING,SNAP | 60001- | |
| 18 | 113-15-22640 | GEAR,RING | 64856- | |
| 19 | 113-15-22771 | PISTON,2ND | 64856- | |
| 20 | 113-15-29250 | RING,SEAL | 64856- | |
| 21 | 113-15-29261 | RING,SEAL | 64856- | |
| 22 | 113-15-22720 | PLATE | 60001- | |
| 23 | 113-15-22730 | PLATE | 64856- | |
| 24 | 113-15-42711 | DISC | 64856- | |
| 104-15-00530 | PLATE ASS'Y | 64856- | ||
| 25 | \6\ | PLATE | 64856- | |
| 26 | 01320-30408 | SCREW | 64856- | |
| 27 | 23A-15-12910 | SPRING | 64856- | |
| 28 | 113-15-21290 | PIN,DOWEL | 60001- |
